OPERATING THE TRACTOR22
BRange Gear Shift Lever (L-M-H)
The range gear shift can only be shifted when tractor is
completely stopped.
Do not force the range gear shift lever.
A If it is difficult to shift the range gear shift lever into the
neutral position;
(1) Depress the brake pedal firmly for several
seconds.
(2) Without reducing the brake pedal force, shift the
range gear shift lever.
A If it is difficult to shift the range gear shift lever into "L",
"M" or "H" from neutral position;
(1) Slightly depress the speed control pedal to rotate
the gears inside of transmission.
(2) Release the speed control pedal to neutral
position.
(3) Shift the range gear shift lever.
A To avoid damage of transmission, stop tractor before
shifting between ranges.

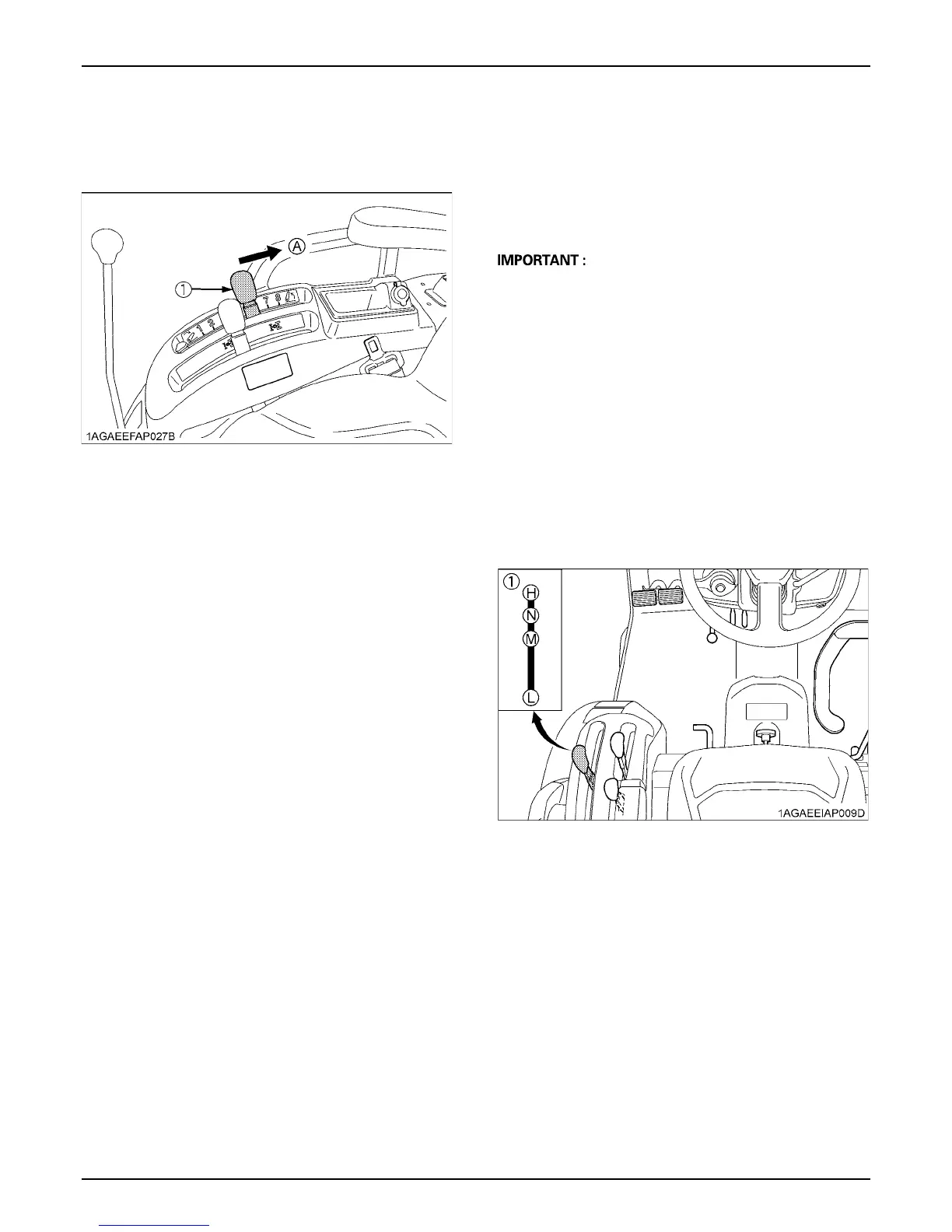

4. Raise the implement.
(See "HYDRAULIC UNIT" section.)
(1) Position control lever (A) "UP"
5. Selecting the Travel Speed.
(1) Range gear shift lever
(L-M-H)
(H) "HIGH"
(M) "MIDDLE"
(L) "LOW"
(N) "NEUTRAL POSITION"
To Next Page
