30 PTO
PTO
PTO OPERATION
To avoid personal injury or death:
A Before operation, be sure to select the correct
PTO lever (mid, mid/rear, rear).
To avoid personal injury or death:
A Disengage PTO, stop engine, set the parking
brake, lower appropriate implements, and allow
all rotating components to come to a complete
stop before connecting, disconnecting,
adjusting, or cleaning any PTO driven
equipment.

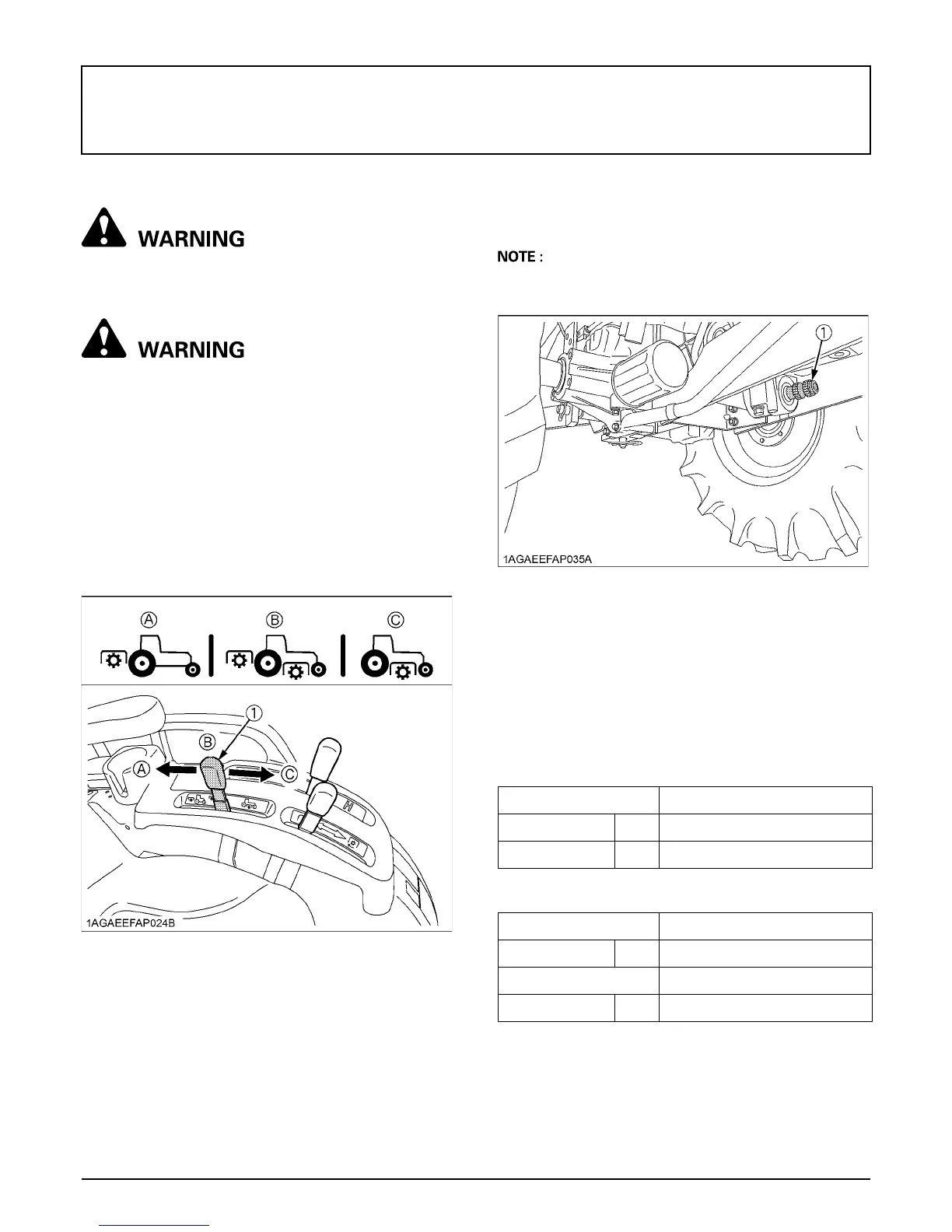

BPTO Select Lever
The tractor has a 540 rpm rear PTO speed and a 2 500
rpm mid-PTO speed.
C Mid-PTO
To use Mid-PTO, shift the PTO select lever to Mid-PTO
position and the PTO clutch lever to the "ON" position.
A The Mid-PTO is available for KUBOTA approved
implements.
C Mid-Rear PTO
To use mid and rear PTO at the same time, shift the PTO
select lever to mid-rear PTO position and the PTO clutch
lever to the "ON" position.
C Rear PTO
To use rear PTO, shift the PTO select lever to rear PTO
position and the PTO clutch lever to the "ON" position.
C Mid-PTO speed
C Rear PTO speed
(1) PTO select lever (A) Rear-PTO position
(B) Mid-Rear-PTO position
(C) Mid-PTO position
(1) Mid-PTO
B2301/B2601
Engine speed rpm 2753
PTO speed rpm 2500
B2301/B2601
Engine speed rpm 2768
Shaft 6-spline
PTO speed rpm 540
