38 HYDRAULIC UNIT

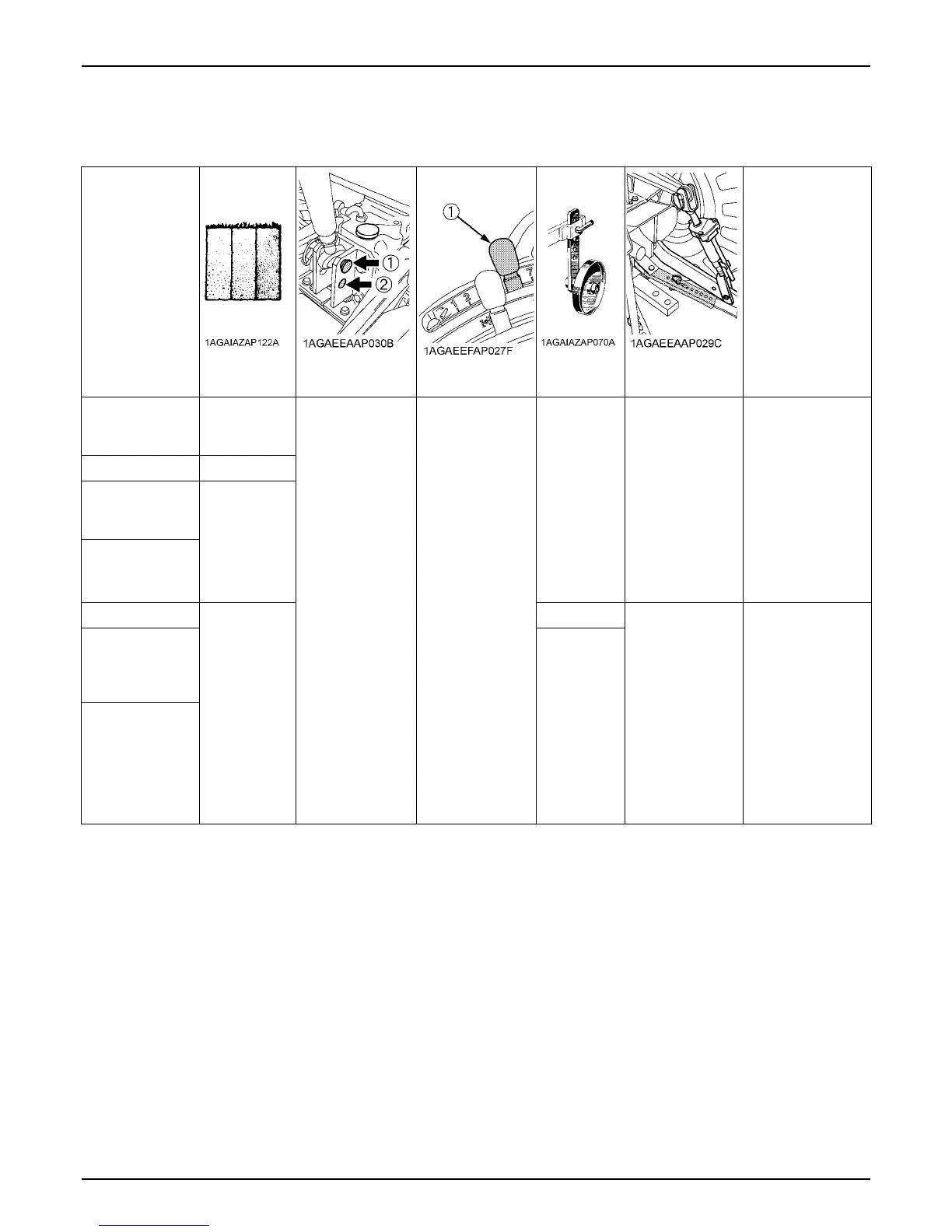

BHydraulic Control Unit Use Reference Chart
In order to handle the hydraulics properly, the operator must be familiar with the following. Though this information may not
be applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
Soil condition
Top link mounting
holes
(1) Position
control lever
Gauge
wheel
Telescopic
stabilizers
Remarks
Moldboard plow
Light soil
Medium soil
Heavy soil
(1) is standard.
(2) is used only
when there is
some obstacle
that prevents you
from using the
standard.
Position control
YES/NO Loose
Insert the set-pin
through the slot on
the outer tube that
align with one of the
holes on the inner
bar.
For implements
with gauge wheels,
lower the
implements to the
ground.
Disc plow ---
Harrower (spike,
springtooth, disc
type)
---
Sub-soiler .........
Weeder, ridger
---
YES
Tighten
Telescopic
stabilizer should be
tight enough to
prevent excessive
implement
movement when
implement is in
raised position.
For implements
with gauge wheels,
lower the
implements to the
ground.
Earthmover,
digger, scraper,
manure fork, rear
carrier ......
YES/NO
Mower (mid-and
rear-mount type),
hayrake, tedder...
