5SPECIFICATIONS OF THE LOADER

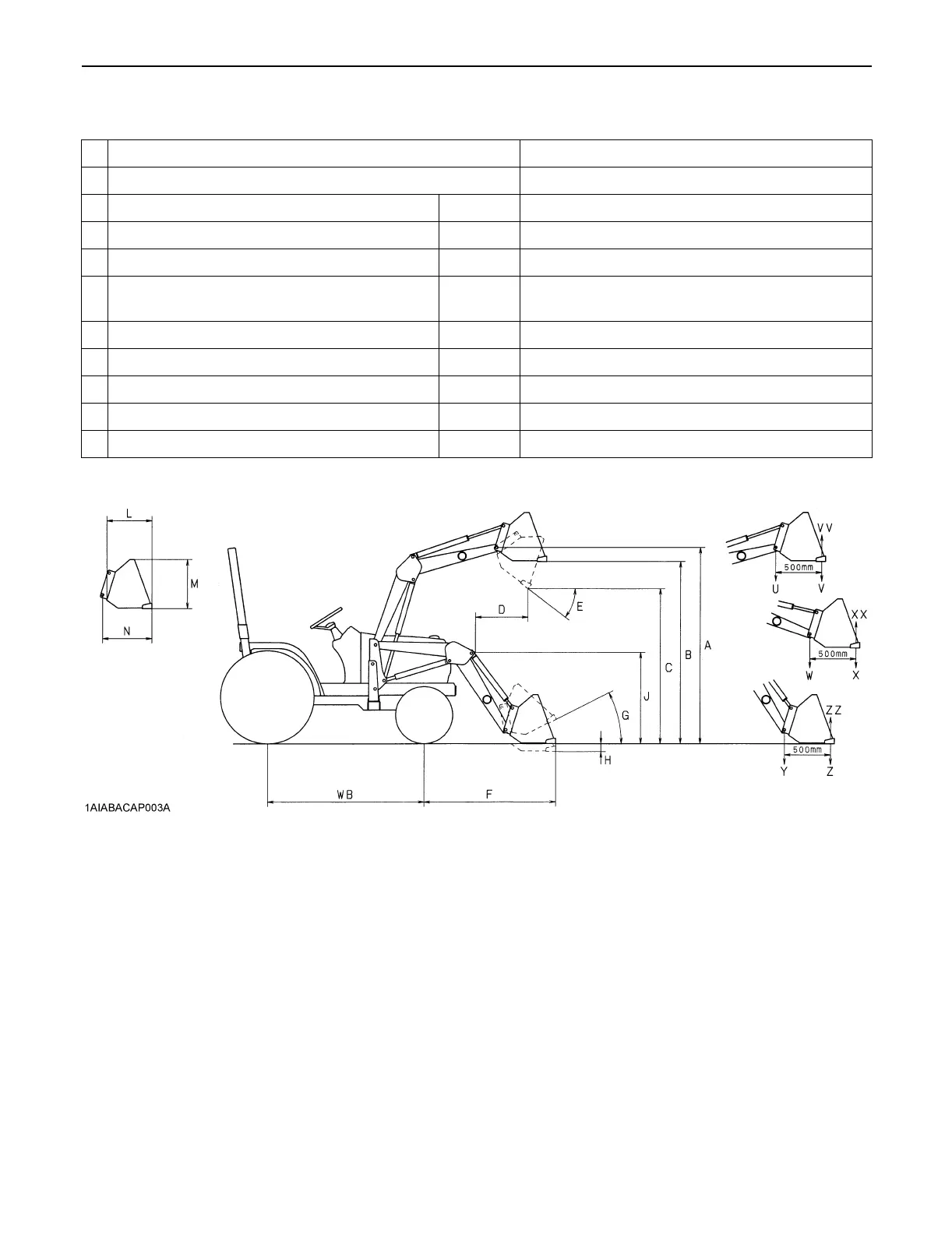

DIMENSIONAL SPECIFICATIONS
LOADER MODEL LA240
TRACTOR MODEL BX24
A MAX. LIFT HEIGHT (TO BUCKET PIVOT PIN) mm (in.) 1810 (71.3)
B MAX. LIFT HEIGHT UNDER LEVEL BUCKET mm (in.) 1680 (66.1)
C CLEARANCE WITH BUCKET DUMPED mm (in.) 1330 (52.4)
D
REACH AT MAX. LIFT HEIGHT
(DUMPING REACH)
mm (in.) 660 (26.0)
E MAX. DUMP ANGLE deg. 45
F REACH WITH BUCKET ON GROUND mm (in.) 1390 (54.7)
G BUCKET ROLL-BACK ANGLE deg. 29
H DIGGING DEPTH mm (in.) 120 (4.7)
J OVERALL HEIGHT IN CARRYING POSITION mm (in.) 990 (39.0)
