107REMOVING THE BACKHOE
6. Slowly raise the boom to disengage the backhoe from
the tractor.
7. Raise the backhoe by operating the stabilizers to the
lowering direction until the mount bars hit to the guide
stopper on the support hooks.
8. Move the tractor forward from the backhoe about 203
mm (8.0 in.)
A Be careful not to damage or break the hoses when
moving the tractor.
9. Lower the main frame and swing frame onto the
ground by operating the boom and stabilizer control
levers.
10.Shut off the engine and set the parking brake.
11.Slowly release all hydraulic pressure by moving the
backhoe hydraulic control levers in all directions.
12.Disconnect hydraulic hoses in the following manner:
(1) Disconnect the inlet, outlet and power beyond
hoses from the tractor.
(2) Connect tractor's outlet hose to the coupler of
power beyond pipe.
13.Restart the engine.
Then drive the tractor / loader slowly away from the
backhoe.
14.Shut the engine off and remove the key from the
tractor. Set the parking brake.
A The entire 3-point hitch can now be reinstalled on the
tractor for use with other rear mount implements.
A Be sure that there is sufficient ballast in the rear tires
and an implement is attached to the 3-point hitch
before using the loader with backhoe removed.

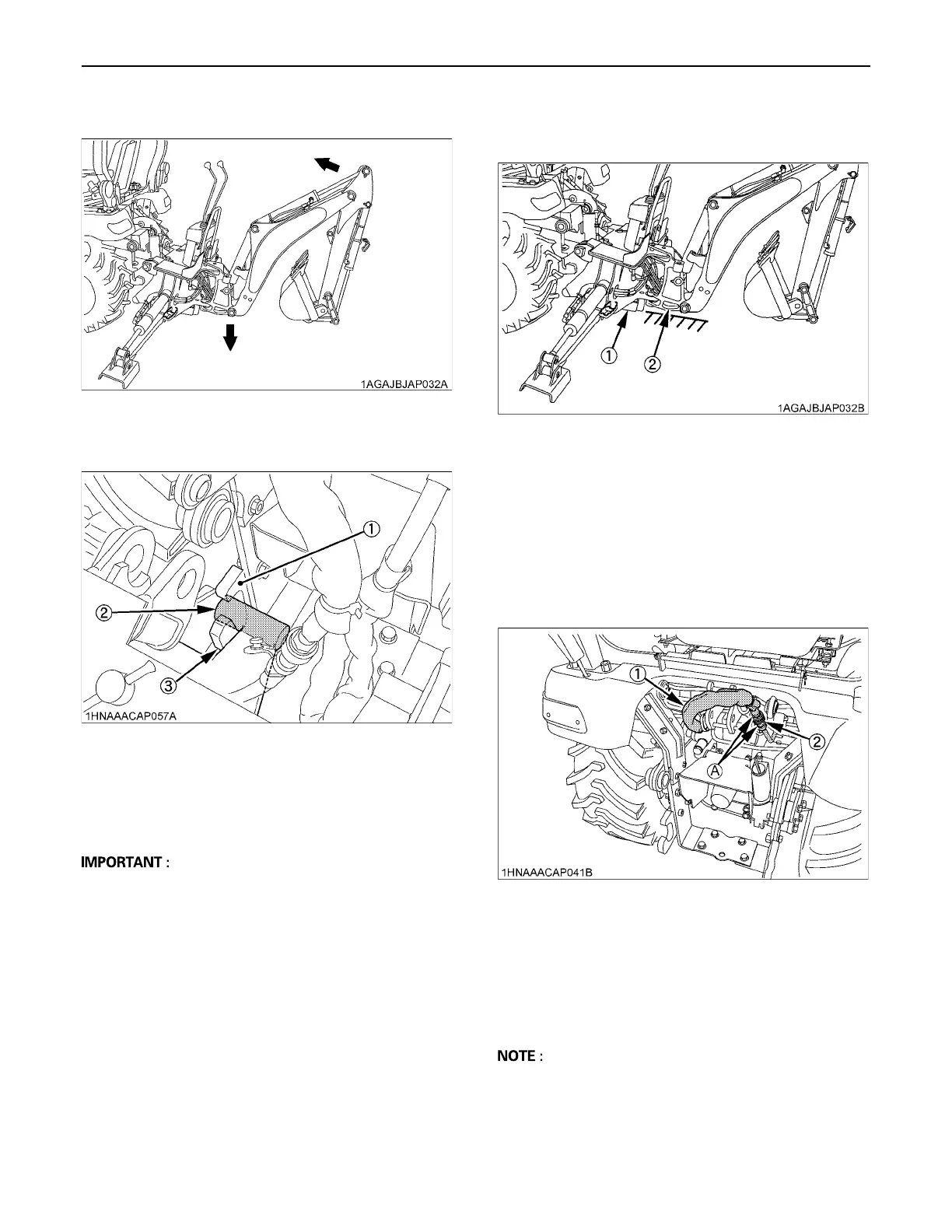

(1) Guide stopper
(2) Mount bar
(3) Support hook
(1) Main frame
(2) Swing frame
(1) Outlet hose (tractor)
(2) Power beyond pipe (tractor)
(A) To be connected
