9INSTRUMENT PANEL AND CONTROLS

B Foot and Hand Controls

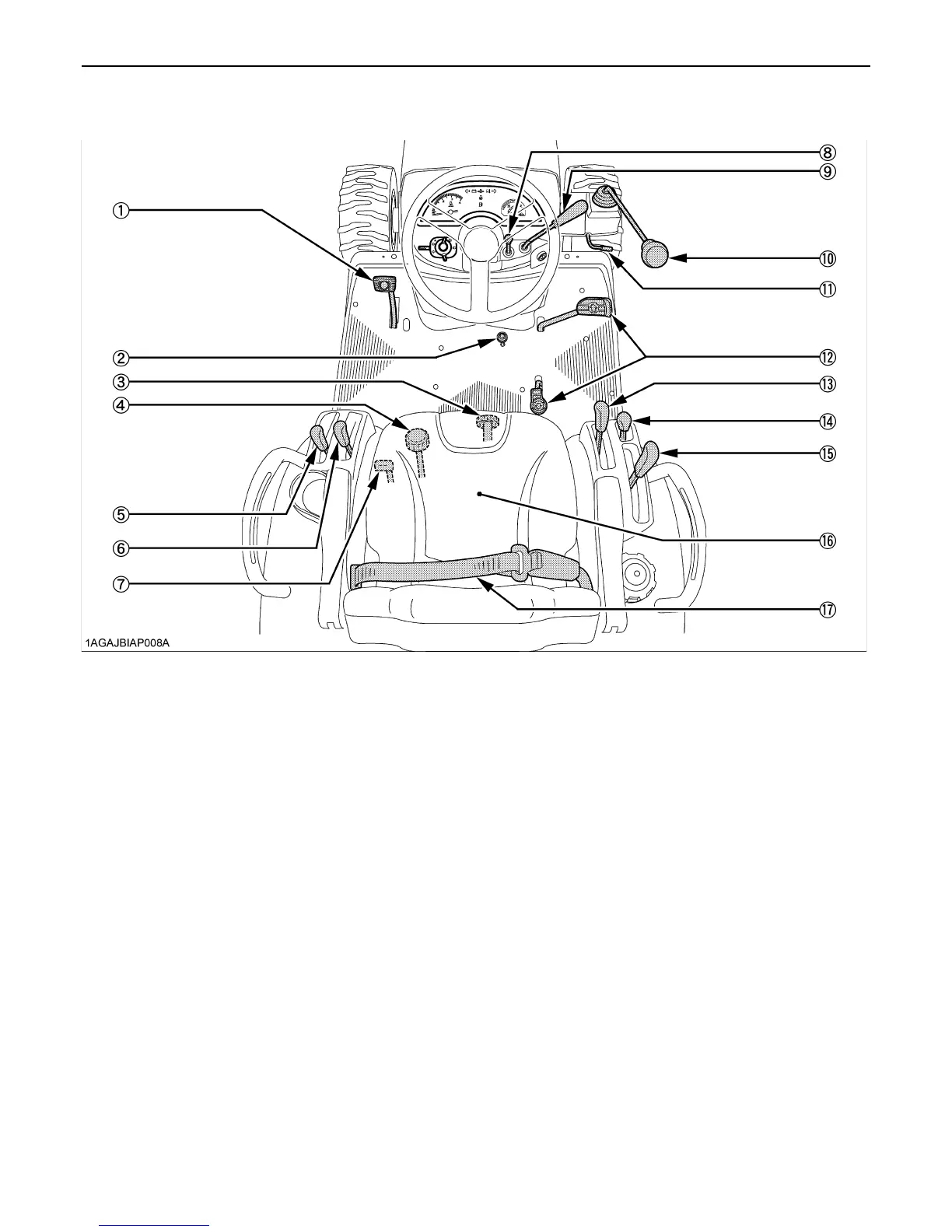

ILLUSTRATED CONTENTS

(1) Brake pedal......................................................................... 11,19,21,24

(2) Parking brake lock pedal..................................................... 11,19,21,24

(3) 3-Point hitch lowering speed knob....................................... 33

(4) Cutting height control dial.................................................... 34

(5) PTO select lever.................................................................. 28

(6) PTO clutch lever.................................................................. 11,29

(7) Differential lock pedal.......................................................... 26

(8) Speed set rod (BX2370D, BX2670D).................................. 22

(9) Hand throttle lever.............................................................. 11,21

(10) Auxiliary hydraulic control lever (if equipped).................... 36

(11) Lock lever (if equipped)..................................................... 11,36

(12) Speed control pedal.......................................................... 11,21

(13) Hydraulic control lever....................................................... 11,33,34

(14) Front wheel drive lever...................................................... 20

(15) Range gear shift lever (Hi-Lo)............................................ 11,20

(16) Operator's seat.................................................................. 18

(17) Seat belt............................................................................ 19
