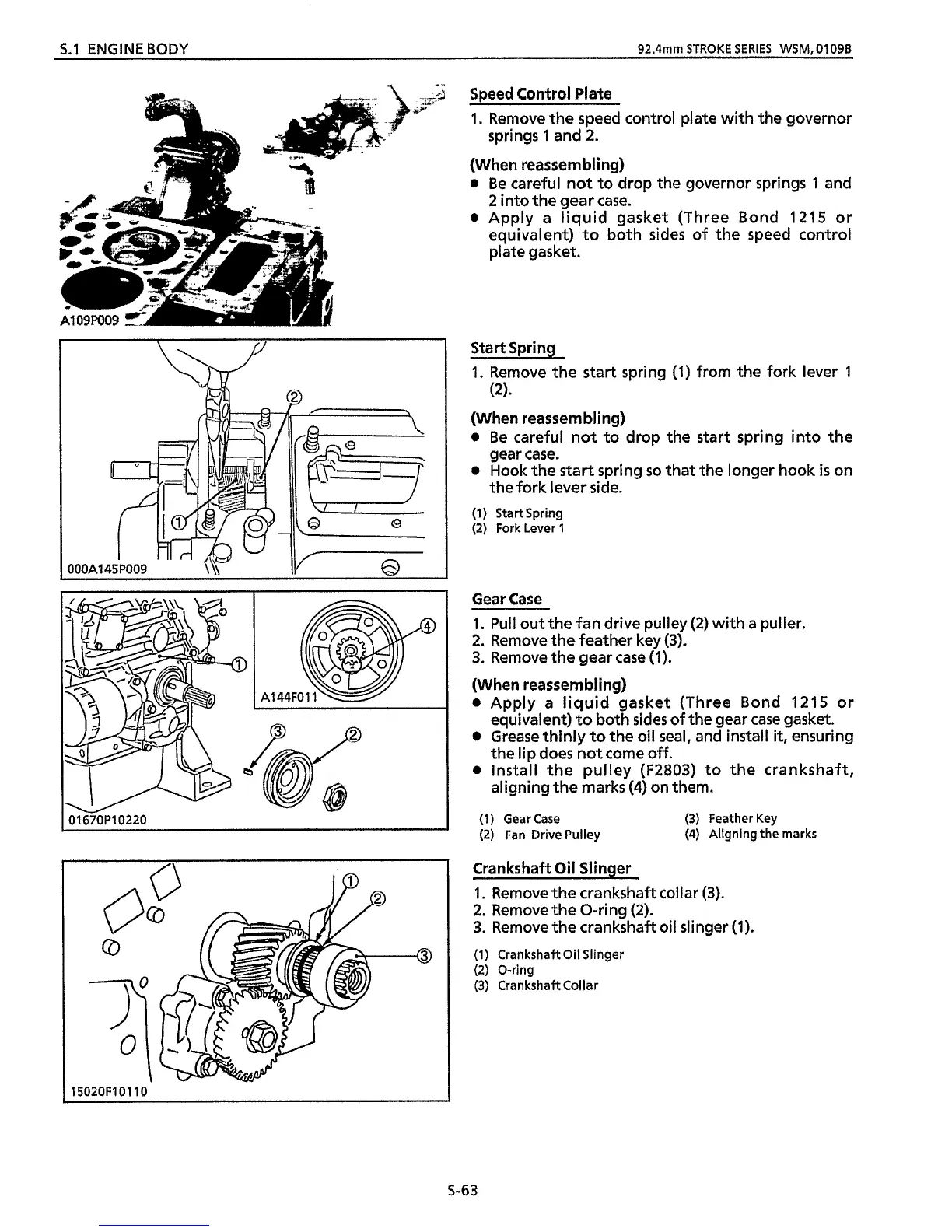

5.1
ENGINE
BODY
92.4mm
STROKE
SERIES
WSM,
01098
Speed Control Plate
1.
Remove the speed control plate with the governor
springs
1
and
2.
(When reassembling)
0
Be careful
not
to drop
the
governor springs
1
and
2
into the gear case.
0
Apply a liquid gasket (Three Bond
1215
or
equivalent) to both sides of the speed control
plate gasket.
I
15020F10110
Start Spring
1.
Remove the start spring
(1)
from
the
fork lever
1
(When reassembling)
0
Be careful
not
to drop the
start
spring into the
0
Hook the start spring
so
that the longer hook
is
on
(2).
gear case.
the fork lever side.
(1)
Startspring
(2)
Fork Lever
1
Gear Case
1.
Pull out the fan drive pulley
(2)
with
a
puller.
2.
Remove the feather key
(3).
3.
Remove the gear case
(1).
(When reassembling)
0
Apply a liquid gasket (Three Bond
1215
or
equivalent)
to
both sides of
the
gear
case
gasket.
Grease thinly
to
the oil seal, and install
it,
ensuring
the
lip does not come off.
0
install the pulley
(F2803)
to the crankshaft,
aligning the marks
(4)
on them.
(1) GearCase
(3)
Feather Key
(2) Fan DrivePulley
(4)
Aligning the marks
Crankshaft
Oil
Slinaer
1.
Remove the crankshaft collar
(3).
2.
Remove the O-ring
(2).
3.
Remove the crankshaft oil slinger
(1).
(1) Crankshaft Oil Slinger
(2)
O-ring
(3)
Crankshaft Collar
5-63
