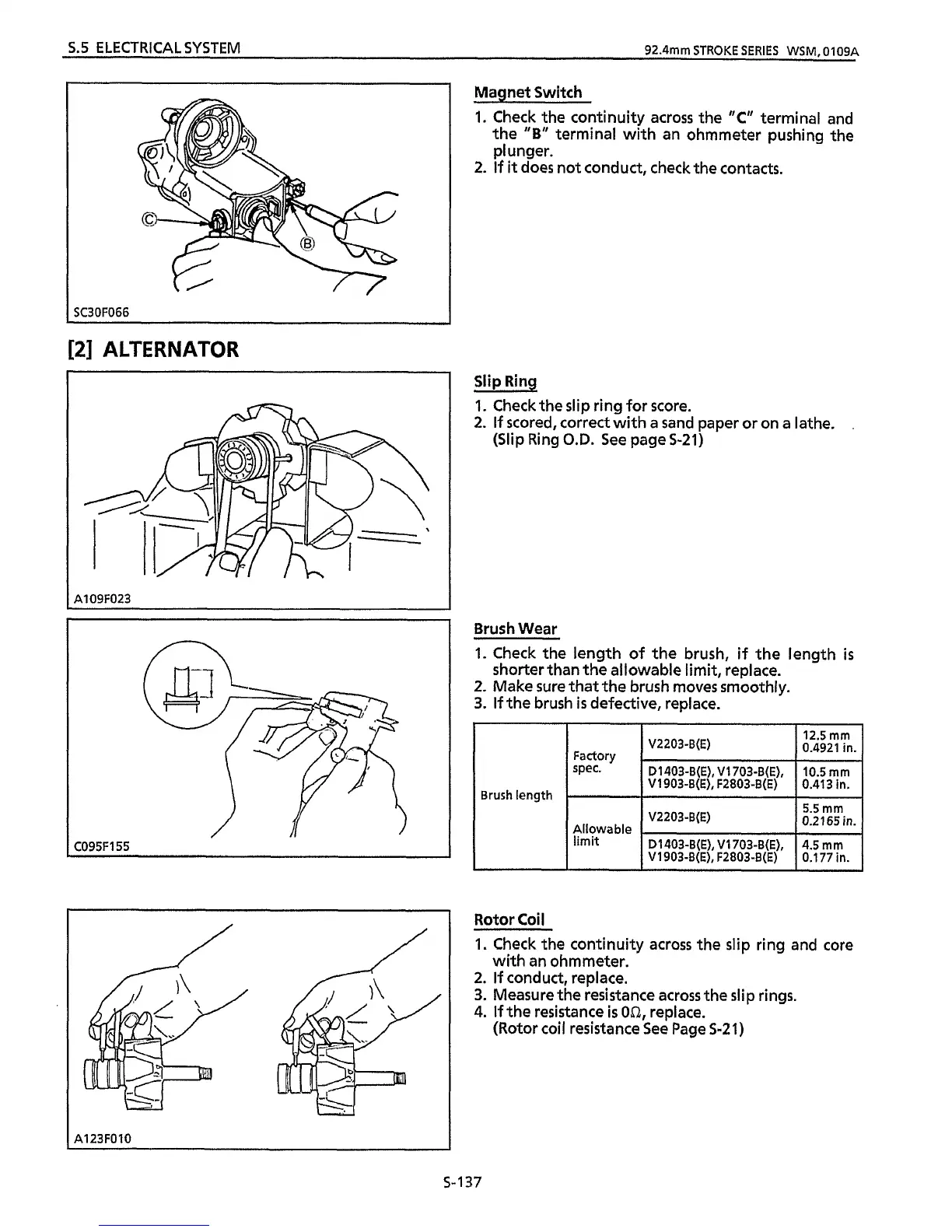

S.5 ELECTRICAL SYSTEM
92.4rnrn STROKE SERIES WSM, 0109A
Brush length
SC3OFO66
12.5
rnrn
V2203-B(E) 0.4921 in.
Factory ,
spec. D1403-B(E), V1703-B(E), 10.5 mrn
V1903-B(E), F2803-B(E) 0.413 in.
.
5.5 mrn
V2203-B(E) 0.2165 in.
Allowable
.
D1403-B(E), V1703-B(E), 4.5 rnm
limit
V1903-B(E), F2803-B(E) 0.177 in.
[2] ALTERNATOR
A109F023
C095F155
/
AI 23F010
Magnet Switch
1. Check the continuity across the “C” terminal and
the “6” terminal with an ohmmeter pushing the
plunger.
2. If it does not conduct, check the contacts.
Slip Ring
1. Check the slip ring for score.
2. If scored, correct with a sand paper or on a lathe. .
(Slip Ring O.D. See page S-21)
Brush Wear
1. Check the length of the brush, if the length is
shorter than the allowable limit, replace.
2. Make sure that the brush moves smoothly.
3. If the brush is defective, replace.
1. Check the continuity across the slip ring and core
with an ohmmeter.
2. If conduct, replace.
3. Measure the resistance across the slip rings.
4. If the resistance is OQ, replace.
(Rotor coil resistance See Page
S-21)
5-1 37
