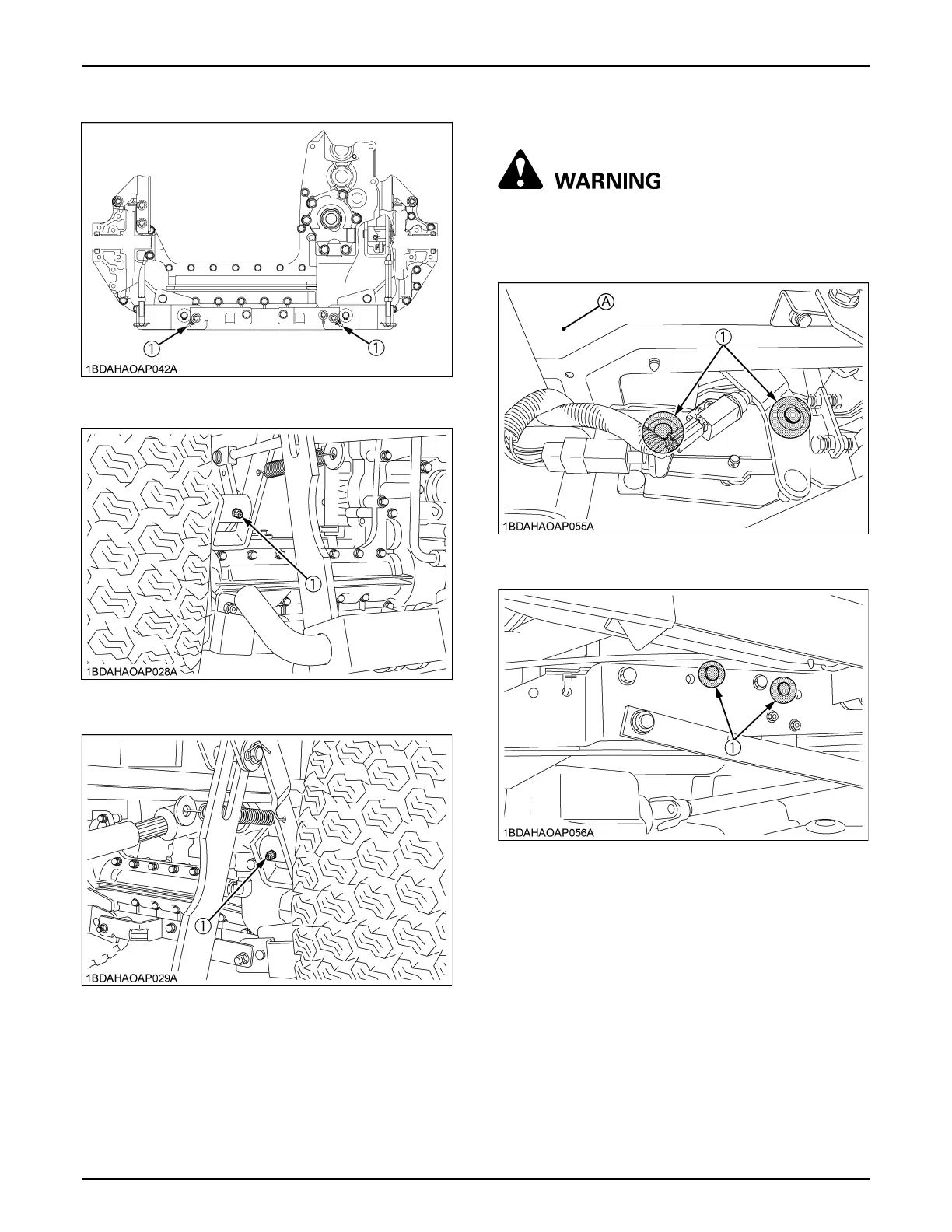

PERIODIC SERVICE
54
B
Oiling
To avoid serious injury:
A
Be sure to stop the engine and remove the key
before oiling.
Oil the following locations.
(1) Glide steer rear arm
(1) Glide steer arm (RH)
(1) Glide steer arm (LH)
(1) Speed control pedal shaft (RH)
(A) Fe
nder
(1) Speed control pedal shaft (LH)
70
72
