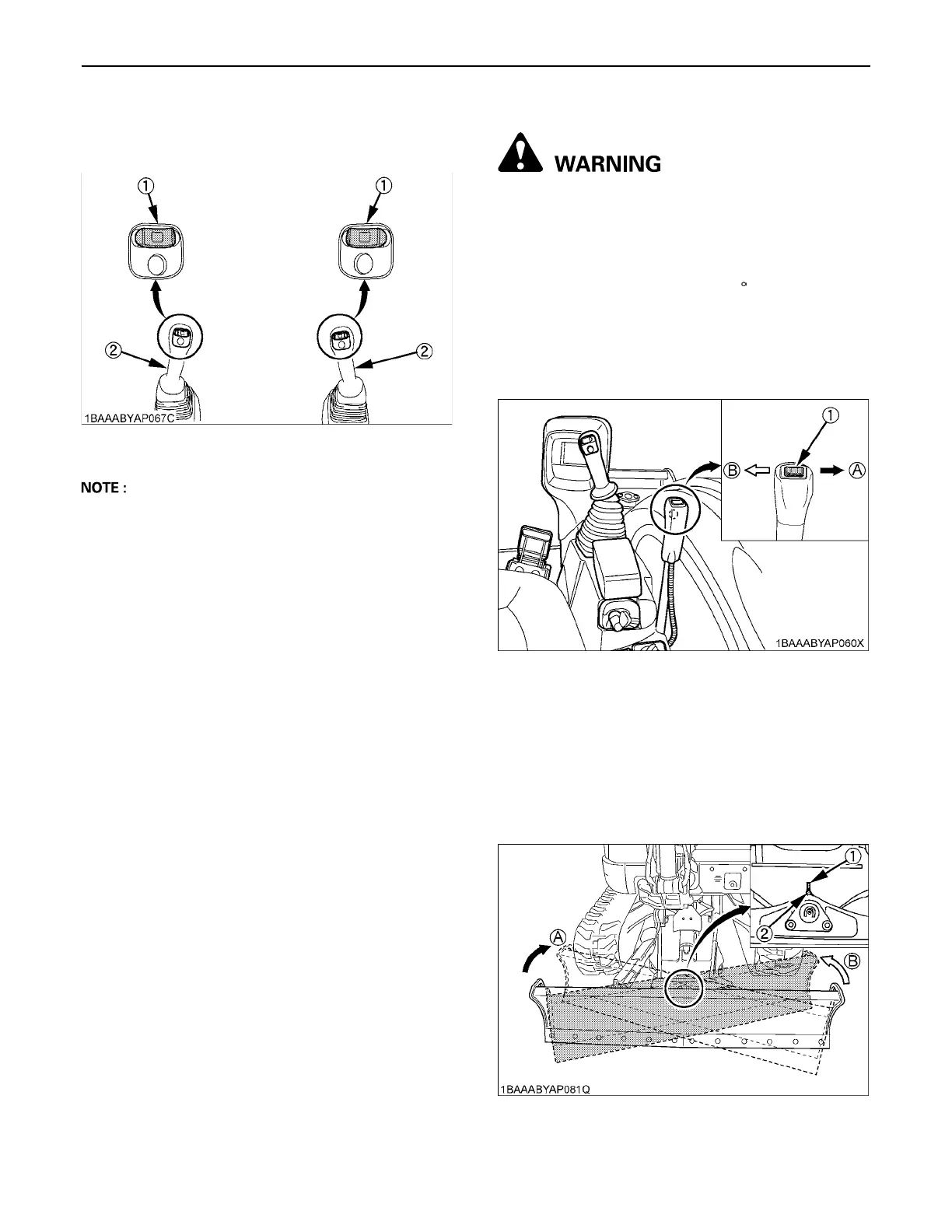

47EXCAVATOR OPERATION
4. Move the AUX port knob mounted to the operating
lever to the right and left to release pressure in the
AUX port.
D There are two types of machine, one has the AUX port
knobs mounted to the right and left operating levers,
the other has the AUX port knob mounted to one
operating lever.
Make choice according to the type of machine.
ANGLE BLADE OPERATION
To avoid personal injury or death:
A Never jack up or lift the machine with the angle
blade placed at an angle.
Stability of the machine is affected with blade
at angle, keep at neutral position.
Before starting the job, position and keep the
angle blade at the standard 0 marking (Refer to
Figure (1)).
A Do not work under the machine.
1. Push the angle blade control switch to the right or left,
and the angle dozer is placed at an angle.
2. For the right-hand angle setting, push the angle blade
control switch in direction (A). The angle blade will be
placed at an angle toward (A).
3. For the left-hand angle setting, push the angle blade
control switch in direction (B). The angle blade will be
placed at an angle toward (B).
Figure (1)
(1) AUX port knob
(2) Attachment control lever
(1) Angle blade control switch (A) Turn the right
(B) Turn the left
(1) Mark (red)
(2) Mark (red)
(A) Turn the right
(B) Turn the left
To Next Page
