45OPERATING THE TRACTOR
BHST Mode
"MANUAL", "STALL GUARD" or "AUTO H-DS/STALL
GUARD" can be selected.
Choose the best mode according to the type of job or your
operating style. The selected mode is displayed on the
indicator on the meter panel.
C STALL GUARD
1. The "STALL GUARD" indicator lights up on the meter
panel.
2. If the tractor gets overloaded and the engine rpm
drops, the tractor automatically slows down in
response to the load, which prevents an engine stall.
3. When using PTO driven implements and the tractor is
in "STALL GUARD" mode, the tractor speed will
automatically adjust with the loads on the engine.
C AUTO H-DS/STALL GUARD
1. The "STALL GUARD" and "AUTO H-DS" indicators
light up on the meter panel.
2. Set the H-DS lever to the "UP" (Hi) position. Make sure
the " " (Hi) lamp lights up on the meter panel.
3. When using PTO driven implements and the tractor is
in "STALL GUARD" mode, the tractor speed will
automatically adjust with the loads on the engine.
4. If the tractor gets overloaded and the engine rpm
drops, the tractor automatically slows down to the (Lo)
low speed range.
In this case, the " " (Hi) lamp goes out and the " "
(Lo) lamp lights up instead.

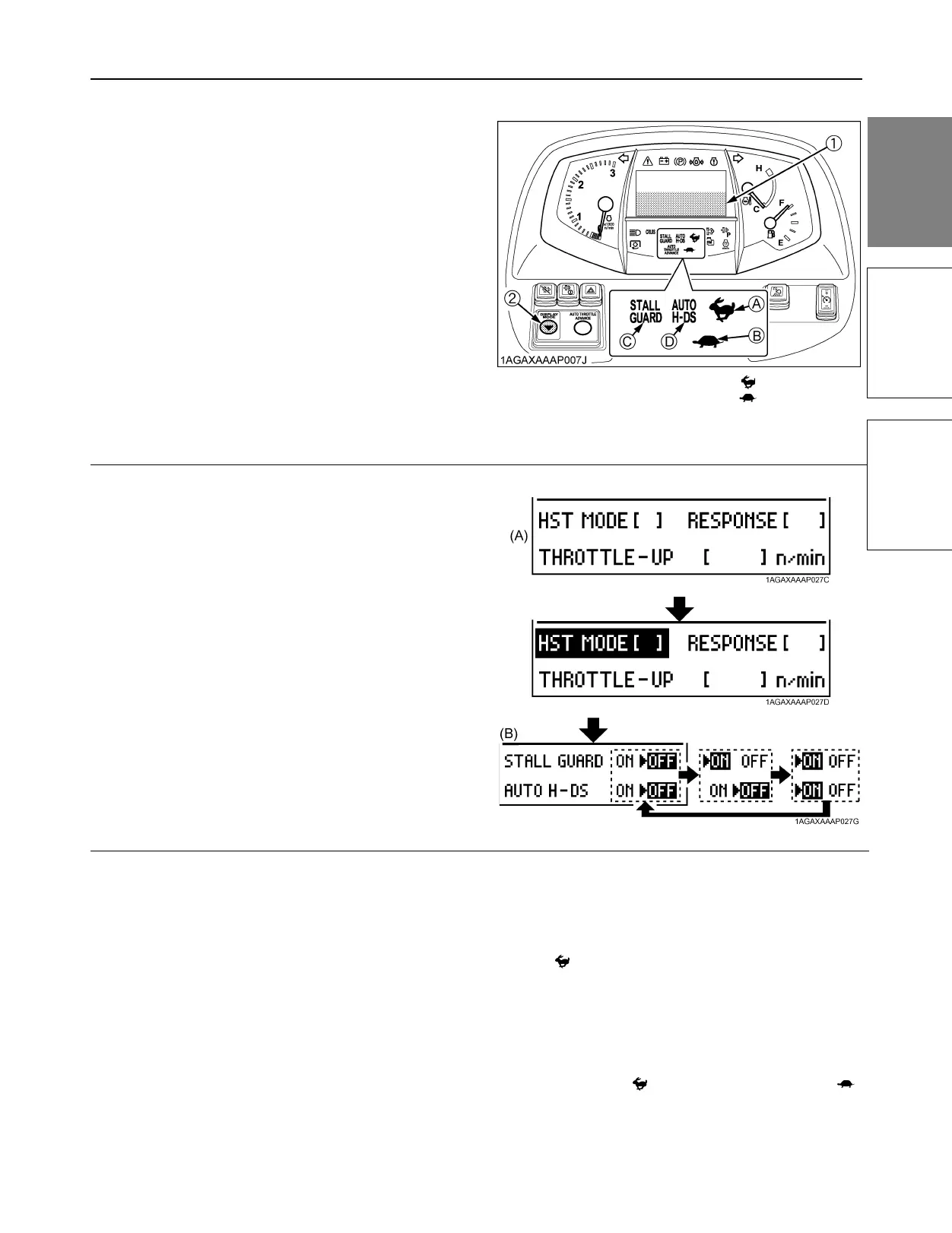

(1) IntelliPanel(TM) display
(2) Display mode button
(A) " " (Hi)
(B) " " (Lo)
(C) "STALL GUARD"
(D) "AUTO H-DS"
C Setting procedure
1. Press the Display mode button to select the display (A).
2. Hold down the Display mode button to highlight "HST
MODE [ ]".
3. Hold down the Display mode button to switch to the
display (B).
4. Each time the Display mode button is pressed, and the
STALL GUARD and AUTO H-DS modes are differently
combined. Choose your desired combination.
5. Hold down the Display mode button, and the setting is
made and the display (A) is resumed.
