PERIODIC SERVICE104
BReplacing Hydraulic Oil Filter
C Cleaning Magnetic Filter
To avoid personal injury or death:
A Be sure to stop the engine before changing the
oil filter cartridge.
A Allow engine to cool down sufficiently, oil can
be hot and can burn.
1. Remove the drain plug at the bottom of the
transmission case and drain the oil completely into an
oil pan.
2. After draining reinstall the drain plug.
3. Remove the 2 oil filters.
4. Wipe off metal filings from the magnetic filter with a
clean rag.
5. Put a film of clean transmission oil on the rubber seal
of the new filters.
6. Tighten the filter quickly until it contacts the mounting
surface.
Tighten filter by hand an additional 1/2 turn only.
7. After the new filters have been replaced, fill the
transmission oil up to the upper notch on the dipstick.
8. After running the engine for a few minutes, stop the
engine and check the oil level again, add oil to the
prescribed level.
9. Make sure that the transmission fluid doesn't leak pass
the seal on the filter.
A To prevent serious damage to the hydraulic system,
use only a KUBOTA genuine filter.
BChecking Power Steering Line
1. Check to see that all lines and hose clamps are tight
and not damaged.
2. If hoses and clamps are found worn or damaged,
replace or repair them at once.

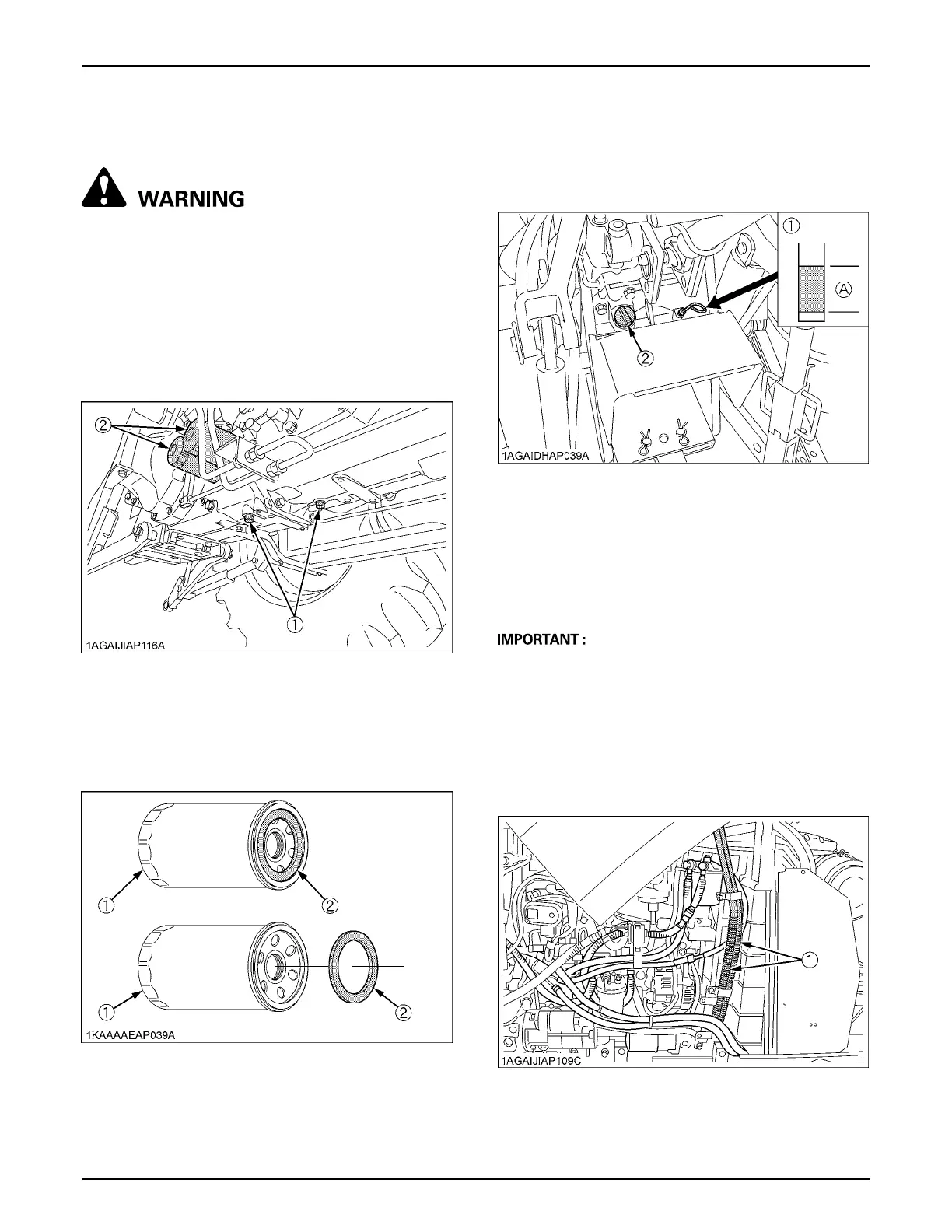

(1) Drain plug
(2) Hydraulic oil filter
(1) Hydraulic oil filter
(2) Magnetic filter (Wipe off metal filings)
(1) Dipstick
(2) Oil inlet
(A) Oil level is acceptable within this range
(1) Power steering pressure hoses
