PERIODIC SERVICE114
BReplacing Slow-Blow Fuses

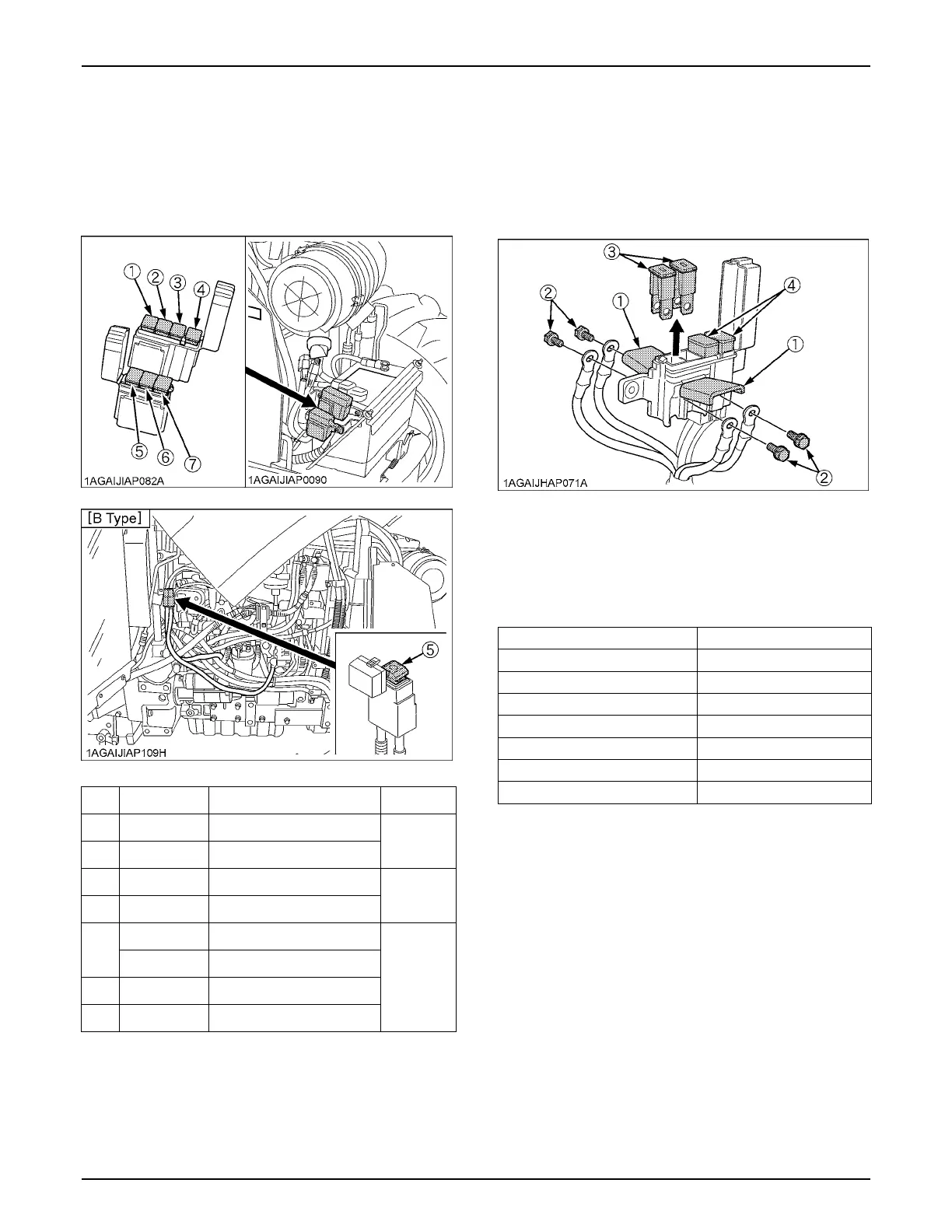

The slow-blow fuses are intended to protect the electrical
cabling. If any of them has blown out, be sure to pinpoint
the cause. Never use any substitute, use only a KUBOTA
genuine part.
C Replacement procedure
[Non bolt fixed slow-blow fuse:]
1. Disconnect the negative cord of the battery.
2. Pull out the fuse from the fuse box.
3. Replace with a new one of the same capacity.
[Bolt fixed slow-blow fuse:]
Consult your local KUBOTA Dealer for this service.
BReplacing Light Bulb
No. Capacity Protected circuit Type
1 30A Electrical outlet
Bolt fixed
2 30A Work light
3 50A Engine glow
Non Bolt
fixed
4 50A Starter, Air conditioner
5
100A Charge
Bolt fixed
140A Charge [B type only]
6 50A Head lamp, Hazard
7 30A Main key switch
(1) Fuse box
(2) Bolt
(3) Bolt fixed slow-blow fuse
(4) Non bolt fixed slow-blow fuse
Light Capacity
Head light 12 V, 55 / 60 W (H4)
Hazard light 12 V, 21 W
Turn signal 12 V, 21 W
Tail light 12 V, 5 W
Work light (for outer roof) 12 V, 55 W
Front work light 12 V, 21 W
Dome light (Room lamp) 12 V, 5 W
