9INSTRUMENT PANEL AND CONTROLS

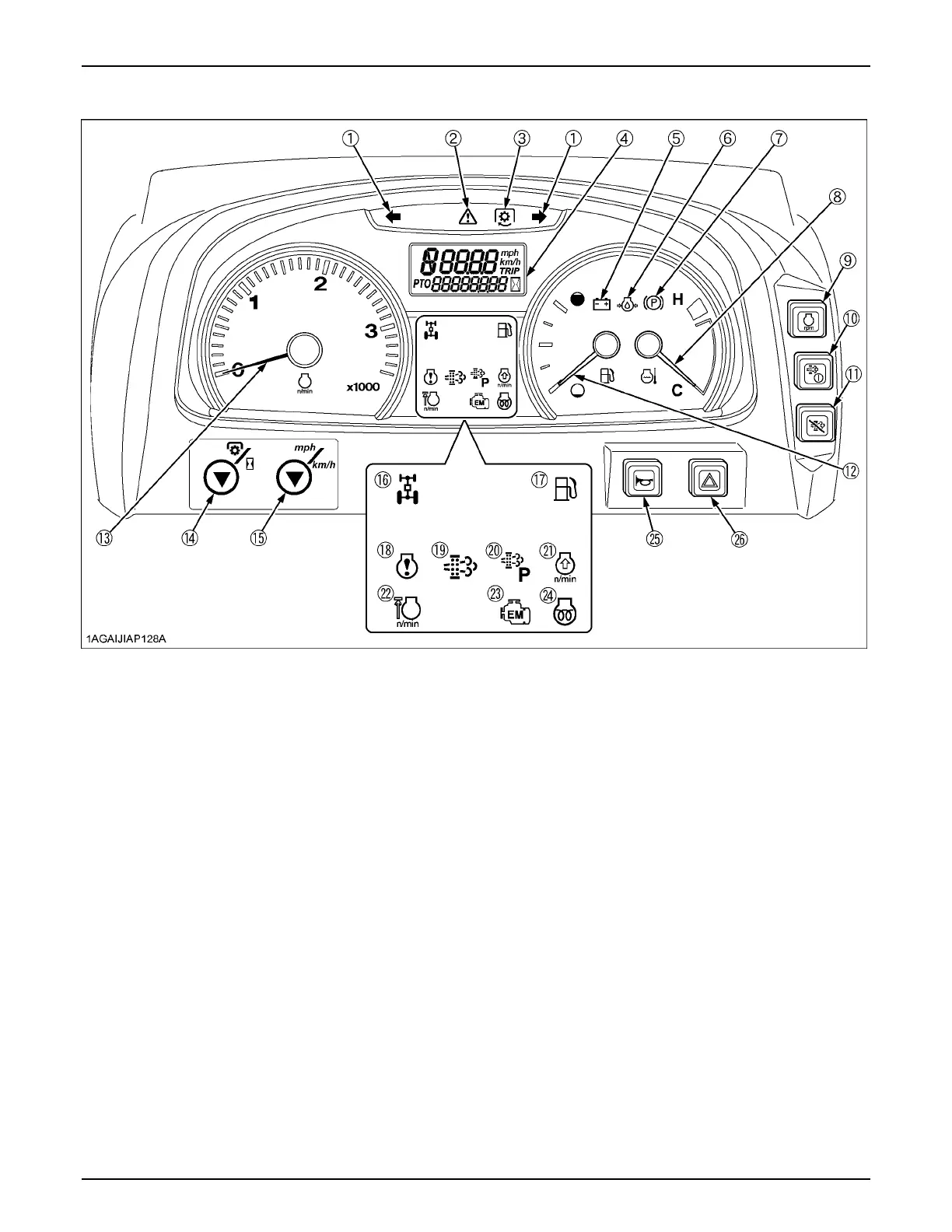

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Hazard / Turn signal indicator ............................ 27 (14) PTO / Hour meter select switch ...................... 38
(2) Master system warning indicator ........................ 35 (15) Travel speed select switch ............................. 38
(3) PTO clutch indicator .......................................... 47 (16) 4WD indicator ................................................ 33
(4) Liquid crystal display.......................................... 38 (17) Fuel level indicator ......................................... 35
(5) Electrical charge warning indicator .................... 35 (18) Engine warning indicator ................................ 35
(6) Engine oil pressure warning indicator ................ 35 (19) Regeneration indicator ................................... 14
(7) Parking brake warning indicator ......................... 19 (20) Parked regeneration indicator ........................ 16
(8) Coolant temperature gauge ............................... 37 (21) Engine RPM increase indicator .........:............ 14
(9) Constant RPM management switch ................. 43 (22) Rev-limiter indicator ....................................... 32
(10) Parked regeneration switch ............................. 16 (23) Emission indicator .......................................... 35
(11) DPF INHIBIT switch ......................................... 16 (24) Heater indicator ............................................. 23
(12) Fuel gauge ....................................................... 36 (25) Horn button .................................................... 28
(13) Tachometer ..................................................... 37 (26) Hazard light switch ......................................... 27
