2-S12
ZD18(F) · ZD21(F) · ZD28(F), WSM
TRANSAXLE

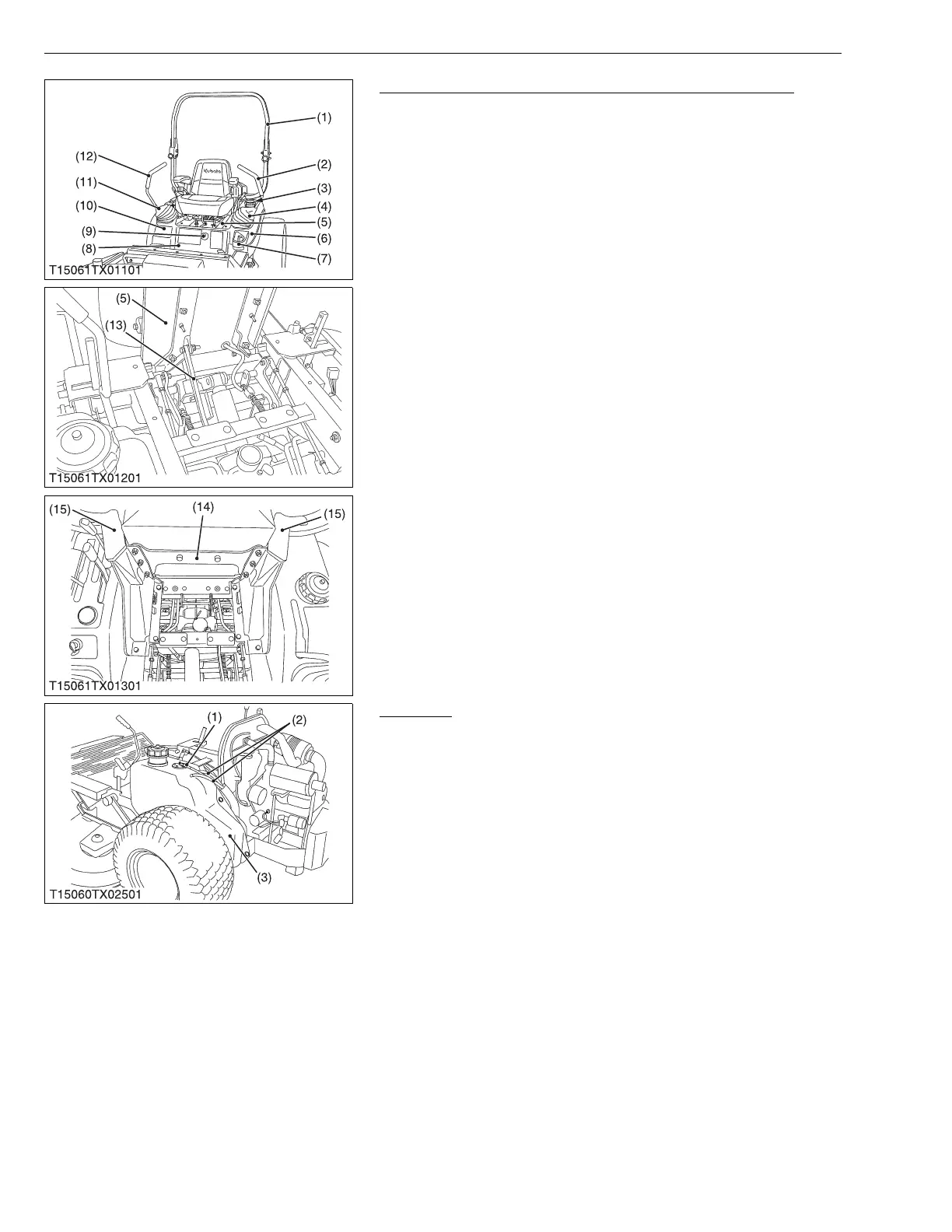

Seat, ROPS, Motion Control Levers, Fenders and Others
1. Disconnect the seat safety switch.
2. Remove the seat open rod (13) and seat assembly with seat
frame (5).
3. Remove the ROPS upper (1). (ROPS Models)
4. Remove the beam (14) for ROPS lower. (ROPS Models)
5. Remove the ROPS lower (15). (ROPS Models)
6. Remove the cutting height adjusting knob (9) and center frame
(8).
7. Remove the motion control lever boot (RH) (11) and motion
control lever (RH) (12).
8. Disconnect the wire harness from fender (RH) and remove the
fender (RH) (10).
9. Remove the fuel tank cap (3), motion control lever boot (LH) (4)
and cap holder (7) and motion control lever (LH) (2).
10.Remove fender (LH) (6).
W1019046
Fuel Tank
1. Disconnect the lead wire (1) from fuel level sensor and fuel hoses
(2) from the fuel tank.
2. Remove the fuel tank (3).
W1015458
(1) ROPS Upper
(2) Motion Control Lever (LH)
(3) Fuel Tank Cap
(4) Motion Control Lever Boot
(5) Seat Frame
(6) Fender (LH)
(7) Cap Holder
(8) Center Frame
(9) Cutting Height Adjusting Knob
(10) Fender (RH)
(11) Motion Control Lever Boot
(12) Motion Control Lever (RH)
(13) Seat Open Rod
(14) ROPS Beam
(15) ROPS Lower
(1) Lead Wire
(2) Fuel Hose
(3) Fuel Tank
KiSC issued 04, 2009 A
