5-S16
ZD18(F) · ZD21(F) · ZD28(
F), WSM
ELECTRICAL SYSTEM

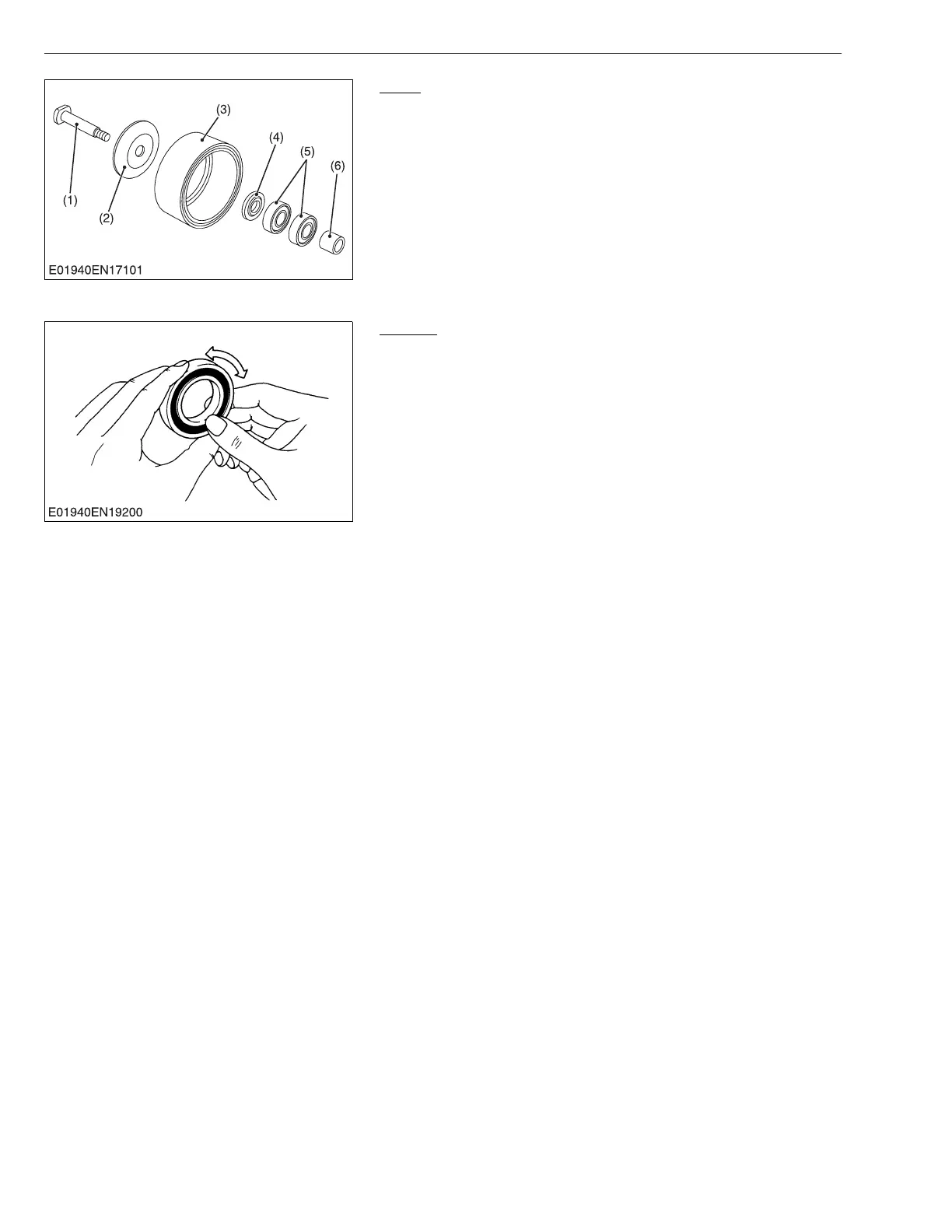

Rotor
1.
Tap out the shaft (1) from the rotor (3).
(When reas
sembling)
•
Take care the direction of the collar (4), the fla
t side should face
to the pulley (2) side.
W1024281
(3)
Servicing
Bearing
1.
Check the bearing for smoo
th rotation.
2.
If it does not rotate
smoothly, replace it.
W1024489
(1)
Shaft
(2)
Pulley
(3)
Rotor
(4)
Collar
(5)
Bearings
(6)
Collar
KiSC issued 04, 2009 A
242
