ZD18(F) · ZD21(F) · ZD28(F), WSM
FRONT AXLE

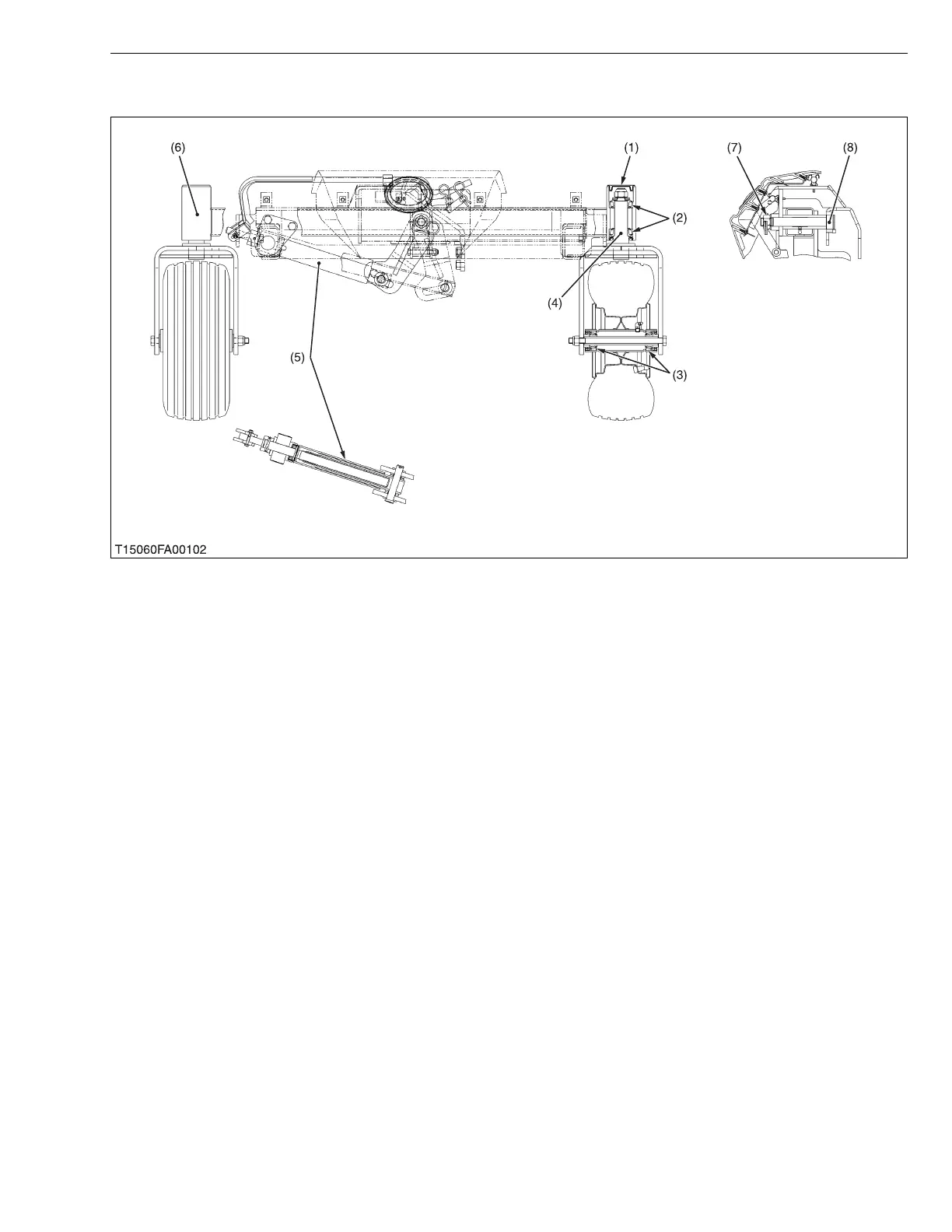

1. STRUCTURE
The front axle is constructed as shown above. The shape of the front axle is relatively simple, and the front axle
is supported at its center with the center pin (8), so that steering operation is stable even on uneven grounds in a grass
field.
(1) Cap
(2) Taper Roller Bearing
(3) Taper Roller Bearing
(4) Wheel Bracket
(5) Lift Up Adjuster
(6) Front Axle
(7) Slotted Nut
(8) Center Pin
