1-S24
ZD18(F) · ZD21(F) · ZD28(F), WSM
ENGINE
Dynamo, Fan Belt and Muffler
1. Disconnect the radiator hoses and separate the radiator (1) with
recovery tank (5) from engine assembly.
2. Remove the cooling fan (2) and fan pulley.
3. Remove the dynamo (6) and fan belt (7).
4. Remove the starter (8).
5. Remove the air cleaner stay (3).
6. Remove the wire bracket.
7. Remove the engine support LH (9) and RH (4).
(When reassembling)
• Check to see that there are no cracks on the belt surface.
IMPORTANT
• After reassembling the fan belt, be sure to adjust the fan belt
tension.
Tightening torque
Engine support mounting
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 ft-lbs

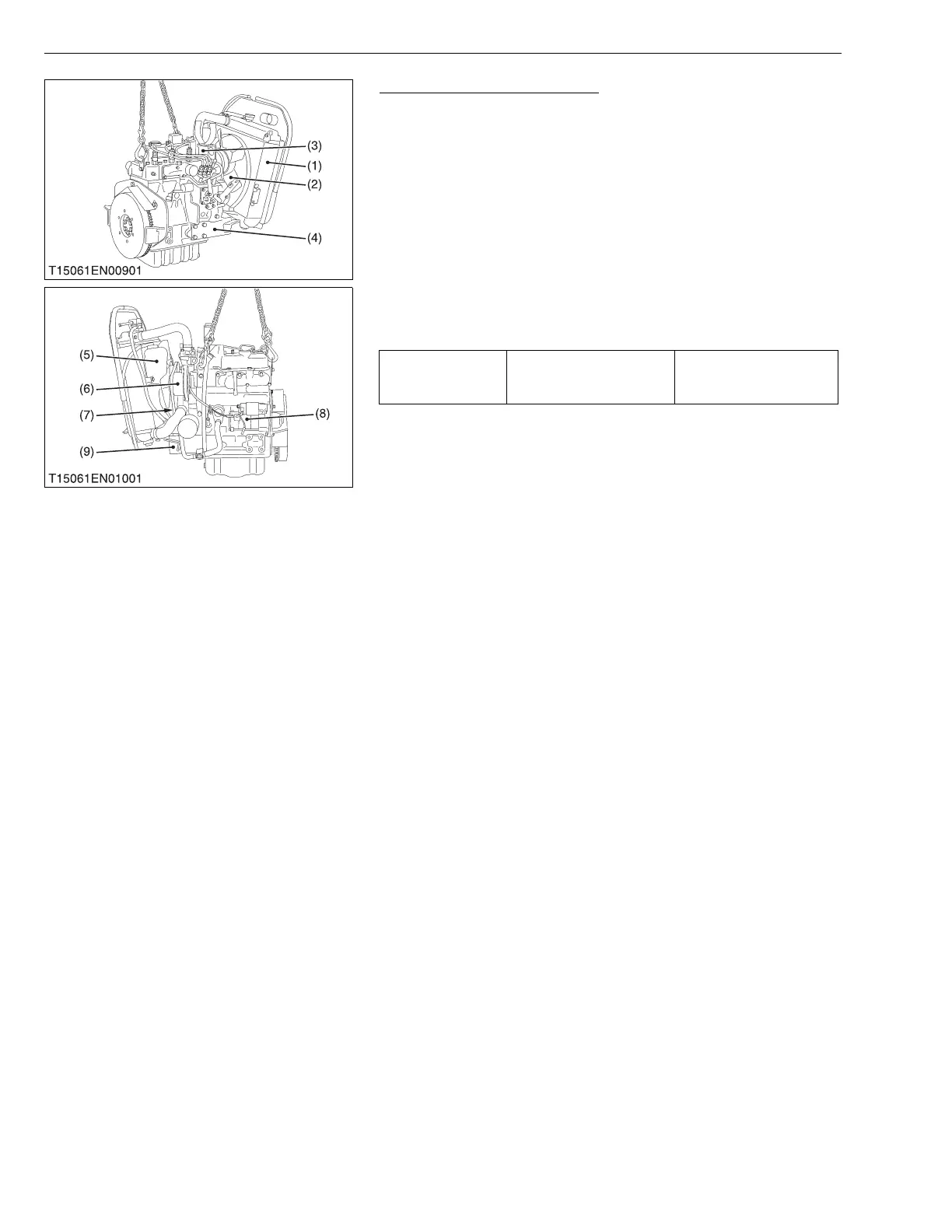

(1) Radiator
(2) Cooling Fan
(3) Air Cleaner Stay
(4) Engine Support RH
(5) Recovery Tank
(6) Dynamo
(7) Fan Belt
(8) Starter
(9) Engine Support LH
To Next Page
