10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-3
Mongoose/KXR 250

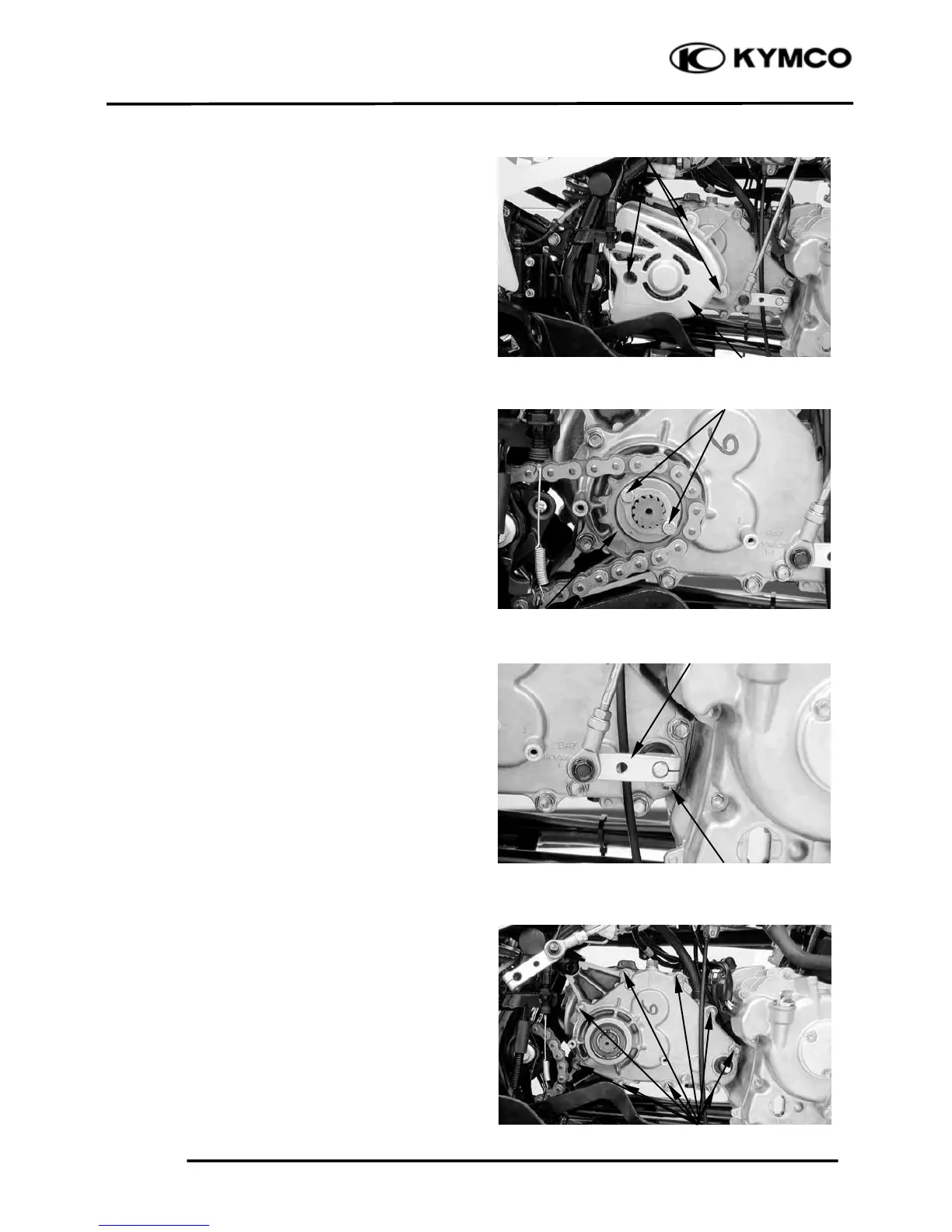

TRANSMISSION CASE COVER
REMOVAL
Drain transmission gear oil into a clean
container. (Refer to the “TRANSMISSION
OIL REPLACEMENT” section in the chapter
3)
Remove the three and then remove the drive
sprocket cover.
Remove the two bolts and then remove the
washer and drive sprocket.
Remove the bolt and then disconnect the
drive shift arm from the shift shaft.
Remove the transmission case cover
attaching bolts.
Bolts
Drive Sprocke
t
Bolts
Drive Sprocket Cove
r
Select Ar
m
Bol
t
Bolts
