Kyocera ECOSYS M5521cdn User Manual

10-32
Troubleshooting > Clearing Paper Jams

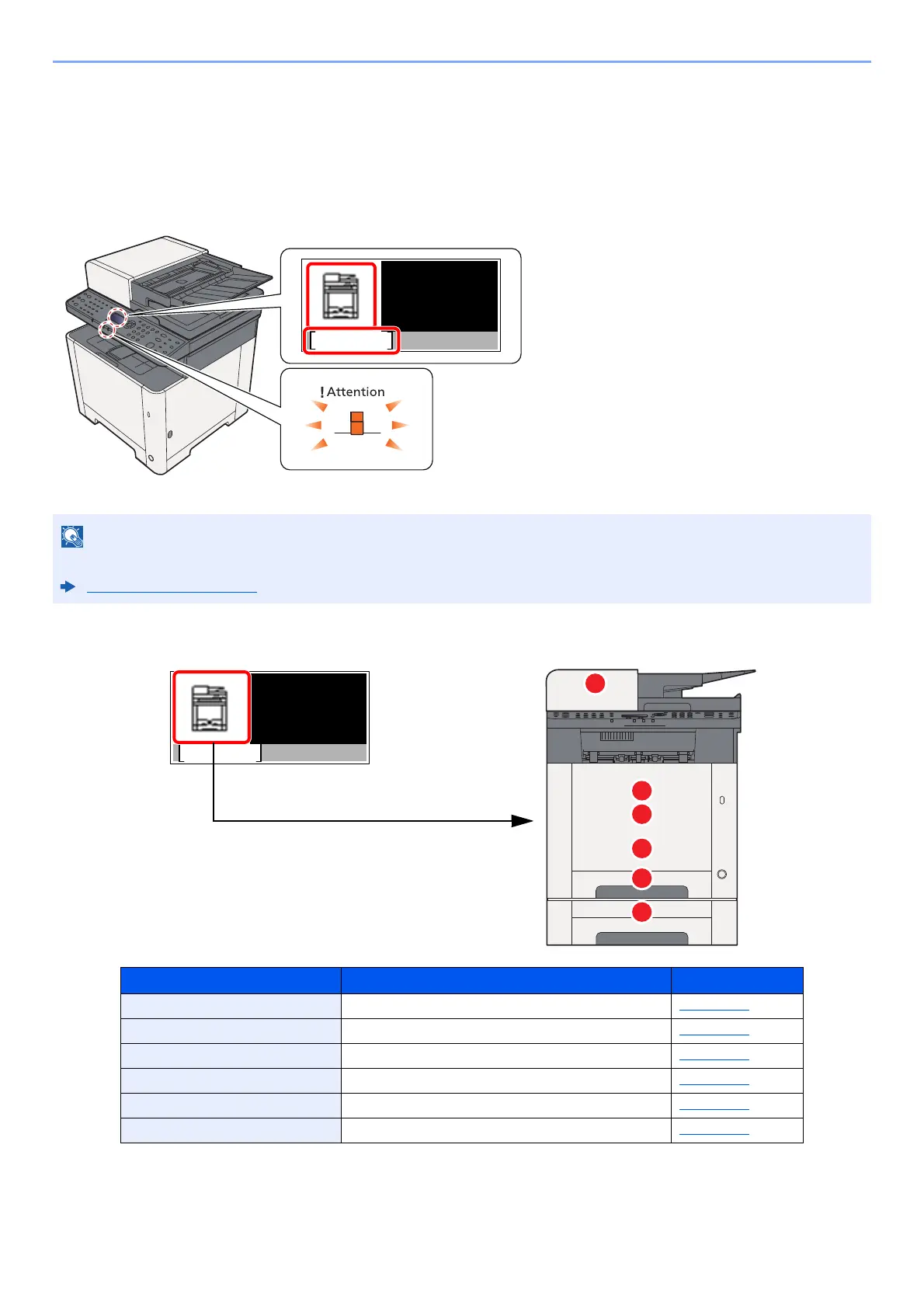

Clearing Paper Jams
If a paper jam occurs, the message display will display "Paper Jam." and the machine will stop. Refer to these
procedures to remove the jammed paper.
Jam Location Indicators
If a paper jam occurs, the location of the jam will be displayed on the message display as well as the clearing instructions.
After you remove the jam, the machine will warm up again and the error message will be cleared. The machine resumes
with the page that was printing when the jam occurred.
1 Shows the location of a paper jam.
2 Displays the Help screen.
NOTE
For details on Help Screen, refer to the following:
Help Screen (page 2-14)
Paper Jam Location Indicator Paper Jam Location Reference Page
A Cassette 1 page 10-33
B Cassette 2 page 10-34
C Multipurpose Tray page 10-36
D Document Processor page 10-42
E Duplex Unit page 10-39
F Rear Cover 1 page 10-39
Paper
jammed in
Cassette 1.
Help
JAM****
1
2
Paper
jammed in
Cassette 1.
Help
JAM****
A
C
F
E
D
B

Kyocera ECOSYS M5521cdn Specifications

General

Paper input type	Cassette, Paper tray
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Total output capacity	- sheets
Maximum input capacity	550 sheets
Total number of input trays	1
Maximum number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Print technology	Laser
Duplex printing mode	Auto
Time to first page (black, normal)	11 s
Time to first page (color, normal)	12.5 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Time to first copy (color, normal)	12 s
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Scan speed (black)	30 ppm
Scan speed (color)	23 ppm
Optical scanning resolution	600 x 600 DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	400 x 400 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Cyan, Magenta, Yellow
Maximum duty cycle	30000 pages per month
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PostScript 3
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 120 g/m²
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Processor frequency	800 MHz
Compatible memory cards	SD, SDHC
Maximum internal memory	1536 MB
Sound pressure level (printing)	46.2 dB
Display	LCD
Product color	Black, White
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (ready)	41 W
Power consumption (sleep)	1 W
Power consumption (printing)	345 W
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	ENERGY STAR
Certification	TÜV/GS, CE, ISO 9001, ISO 14001

Weight and Dimensions

Depth	429 mm
Width	417 mm
Height	495 mm
