Lamtec ETAMATIC S User Manual

114
9 Appendix
9.13 LAMTEC SYSTEM BUS (LSB)
The document "LAMTEC SYSTEM BUS technical documentation“ (publication no. DLT6095)
consists of further information with regards to LAMTEC SYSTEM BUS.
9.13.1 Configuration of the Processor Board
NOTICE
The LAMTEC SYSTEM BUS may not be connected with a branch cable and has to be termi-
nated at both sides with 120 Ω.

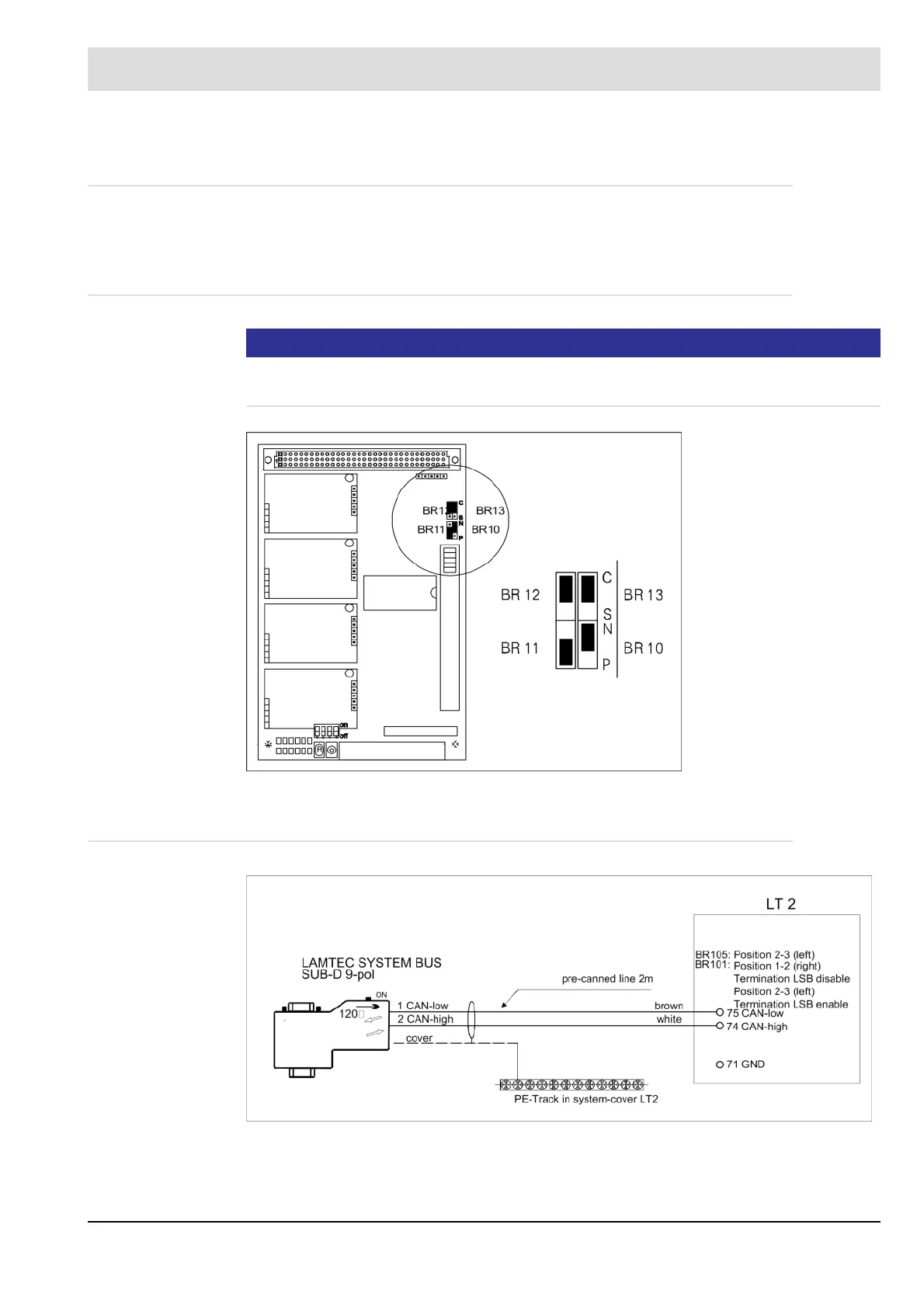

Fig. 9-13 Configuration of the processor board LT1/LT2 to LAMTEC SYSTEM BUS (LSB)
9.13.2 LSB Connection
Fig. 9-14 LSB connection ETAMATIC to LT2

Lamtec ETAMATIC S Specifications

General

Type	ETAMATIC S
Category	Control Unit
Ambient Temperature	-20°C to +60°C
Protection Class	IP20
Relative Humidity	5 to 95% non-condensing
