Correcting Faults
6.1.3

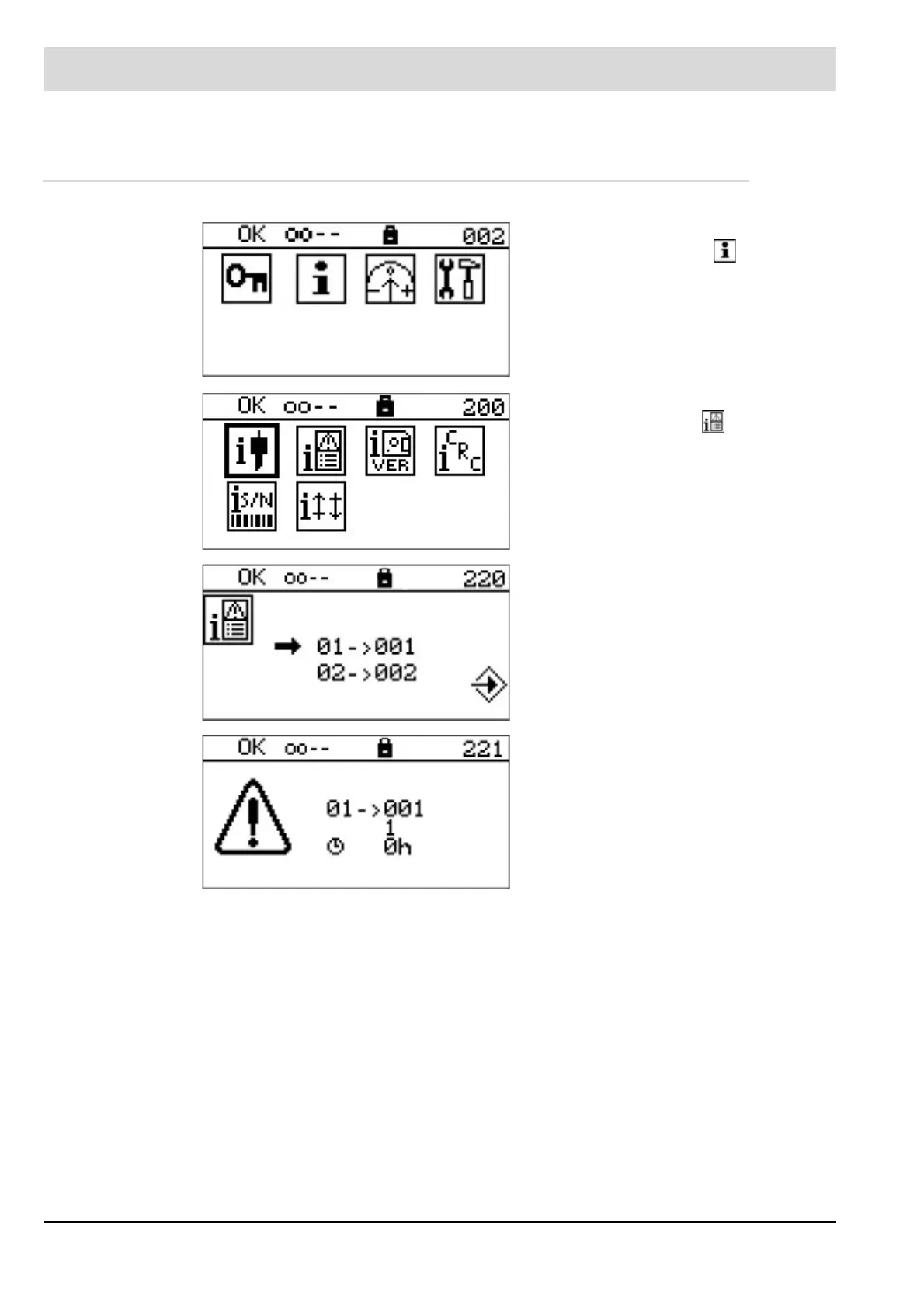

Call of the Fault History
In the MAIN MENU, select
for informa-
tion.
In INFORMA
TION, select
for the fault
history
.
Fault history
01
Number of the entry
001
Fault number of the main pr
ocessor
If
the
fault
number
is
displayed
as
"101"
(+100),
there is
a
fault
in
the
monitoring
processor
.
1
T
rigger 1
0h
O
ccurs in case of ... Operating hours
For fault numbers, see Chapter
6.1.1 Faul
ts
.
41
43
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information about the Manual
5
Validity of These Instructions
5
Information on Using this Operating Manual
5
2 General Safety Instructions
6
Classification of the Safety Instructions and Warnings
6
Proper Use - Conditions of Use
7
Permissible Users
8
Safety Equipment/Safety Measures
9
3 Product Description
11
Design and Accessory LS2 Lambda Probe
11
4 Display and Operational Controls
13
Operation
14
Menu Structure
14
Password Entry Menu Structure
14
Information Menu Structure
15
Calibration Menu Structure
15
Settings Menu Structure
16
Status Line
17
Main Menu
18
Main Menu - Information
19
Main Menu - Calibration
19
Main Menu - Settings
20
5 Maintenance
21
Probe Testing and Calibration
21
Checking/Calibrating the Air Voltage (Offset)
21
Checking/Calibrating the O 2 Electrode
21
Reading the Measured Values
21
Enter the Password for the Access Level
23
Activate/Deactivate Maintenance Mode
24
Response of the Internal Resistance Regulation
25
Premature Cold Start Termination
26
Calibrating the Probe
27
5.1.8.1 Offset Calibration Perform to 21 % O
28
O 2 Calibrating in the Operating Point with Reference Measurement
30
Checking/Calibrating with Test Gas
31
Checking/Calibrating with Reference Measurement
34
Consumables
34
Settings
35
5.1.12.1 Maintenance Mode
35
5.1.12.2 Filter Time
35
5.1.12.3 Analogue Outputs
35
5.1.12.4 Display
36
Limit Values
37
6 Correcting Faults
38
Faults and Warnings
38
Faults
38
Warnings
41
Call of the Fault History
42
7 Decommissioning
43
Protection against Emissions from Gas Carrying Channels
43
8 Options
44
Analogue Outputs Via LSB Module Current, Alternative Voltage, LSB Address 19
44
Functional Description
44
Factory Setting of Analogue Outputs Via LSB Module
45
Conversion of the Output Range Via the User Interface
46
Digital Outputs Via LSB Module, LSB Address 03 and 51
47
Functional Description
47
Factory Setting of the Digital Outputs
48
Diagnosis of the Digital Outputs
48
Digital Inputs Via the LSB Module, LSB Address 11 and 55
49
Functional Description
49
Factory Settings of the Digital Inputs
50
Diagnosis of the Digital Inputs
50
LSB Module for Calculating Combustion Efficiency
51
Functional Description
51
9 Storage
53
Storage Conditions
53
10 Disposal Notes
54
Environmental Protection, Waste Disposal
54
11 Appendix
55
Wet/Dry Measurement Deviations, Conversion Table
55
EU Declaration of Conformity
56
