Introduction
WiBox2100E User Guide 11
Telecommunications equipment
Data display devices
Virtually any RS-232, RS-422 or RS-485 asynchronous serial device
Application Examples
The WiBox has two serial ports and an 802.11b/g transceiver. Each serial port is
connected to the serial communication port of a device. The wireless transceiver
connects to another wireless device or to an Access Point (AP). The WBX2100E also
provides an Ethernet connection.
This section includes typical scenarios for using the WiBox.
Serial Tunneling – Network

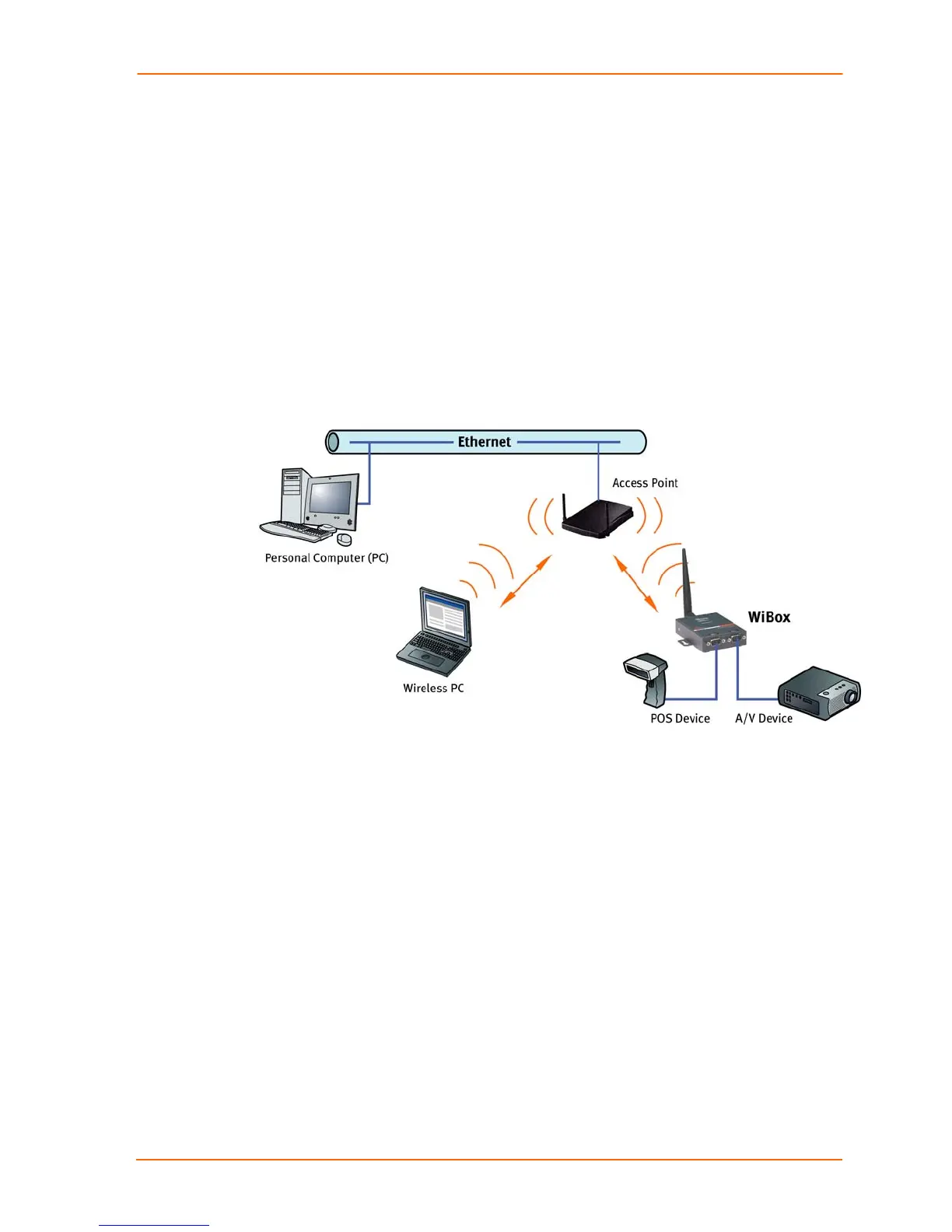

Figure 2-1. Serial Tunneling Infrastructure Network Example
A PC connected to an AP via an Ethernet connection and a PC with a wireless
connection to the AP LAN access the WiBox as though they are directly connected to
it. The combination of the WiBox, a PC, and Lantronix’s Redirector software allows
the PC to communicate directly to the WiBox’s serial devices, providing wireless
serial tunneling.
