LAUNCH ScanPad 071 User’s Manual — Knowledge of ScanPad 071

9 Microphone

1.3.3 ScanPad 071 protection sleeve

It mainly includes: upper enclosure, soft sleeve and lower enclosure.

How to dismantle ScanPad 071 protection sleeve

To remove protection sleeve from ScanPad 071 main unit, follow the steps

described as below to proceed:

1. Pull the black sleeve outwards from the right margin of ScanPad 071, and

then remove it completely.

2. Reverse the upper enclosure and then use the screwdriver to loosen all

screws.

3. Take out the lower enclosure from the upper enclosure.

Finally remov

e ScanPad 071 tablet computer from the upper enclosure.

Note: Reverse the above-mentioned steps to install ScanPad 071 protection

sleeve. While mounting it, please pay more attention to the installation direction.

1.3.4 DBScar diagnostic connector (using with ScanPad 071)

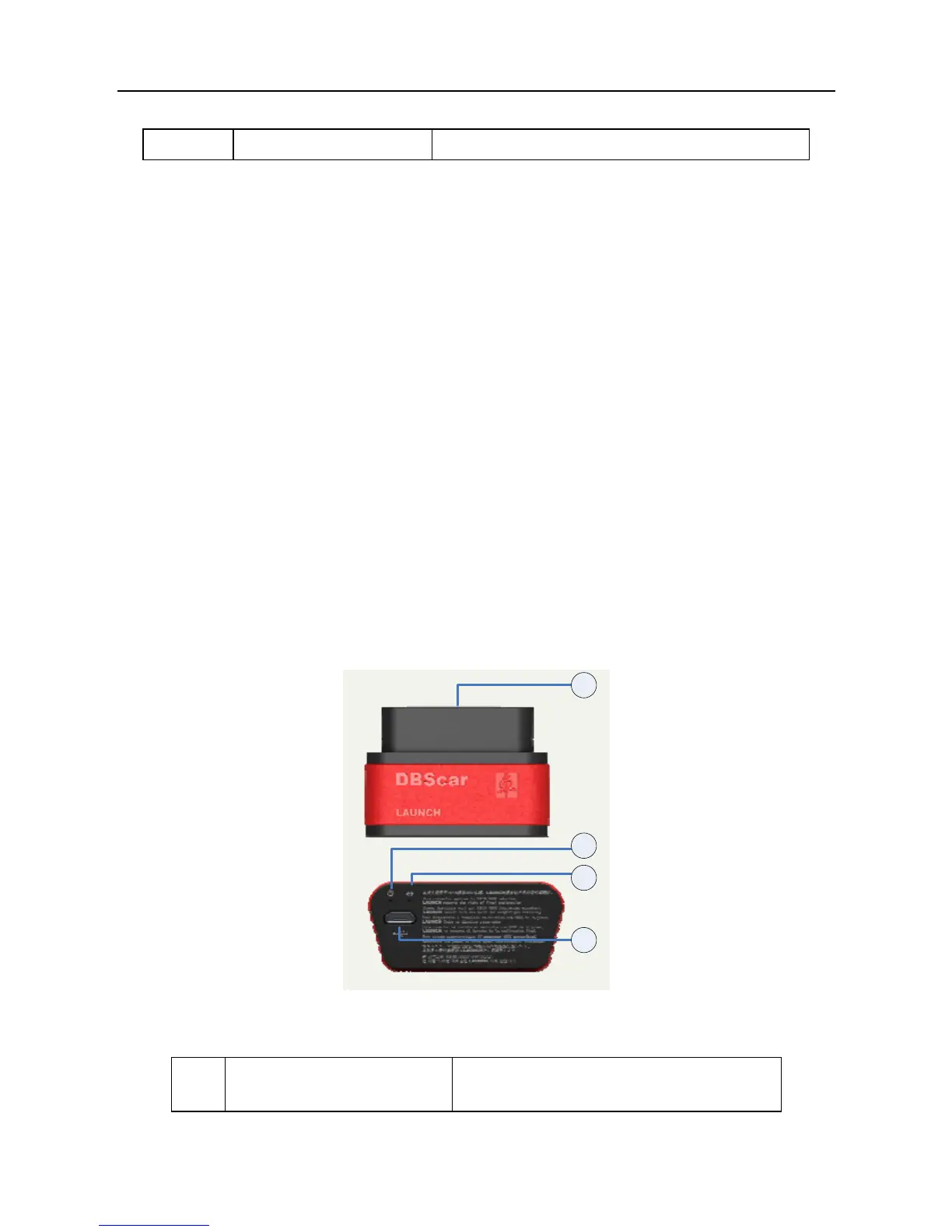

Fig. 1-3 DBScar diagnostic connector

①

OBD-16 diagnostic

connector

To connect on vehicle’s OBD2

DLC.
