LAUNCH 440(440W) 455(455W) Installation Manual
15
5.2.8 Air line connection
l Locking latches require 100 psi. min to 120 psi. max
air pressure. A filter/regulator/lubricator must be
installed on air supply at lift. Failure to do so will void
the warranty.

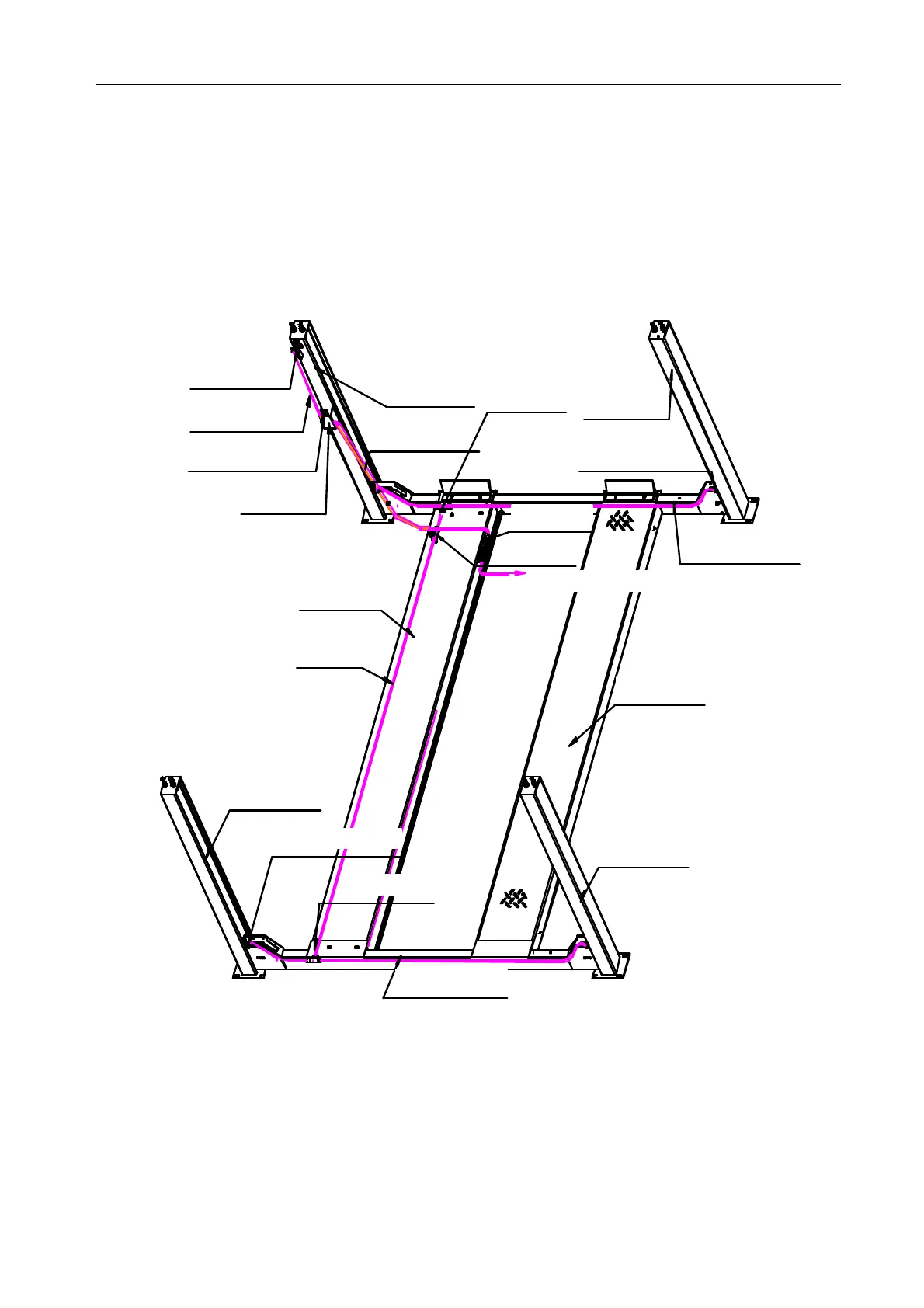

l Route the air lines based on Fig.15 and check for air
leaks by depressing air valve. Actuate air control valve
and check latch operation on all four corners. The
locking latches should pull in beyond cross tube ends
to clear the latch plate.
FRLUnit
AirSupplyHose
AirControlValve
Bracket
FLColumn
PlasticTube
TFitting
FRColumn
AirConnector
FrontCrossTube
RecoilHose
TFitting
LeftRunway
AirHose
RightRunway
RLColumn
AirConnector
TFitting
RearCrossTube
RRColumn
ToRollingJackPump
Fig.15
