User Manual
Version 757665d
English
Congratulations on your purchase of the Leica Lino.
The safety instructions follow the
section on how to operate the
instrument. Before starting up the
instrument for the first time, please
read through the entire User Manual paying special
attention to the section Safety Instructions .
Contents
Start up................................................................1
Operation.............................................................2
Technical data ...................................................10
Safety instructions ...........................................12
Start up

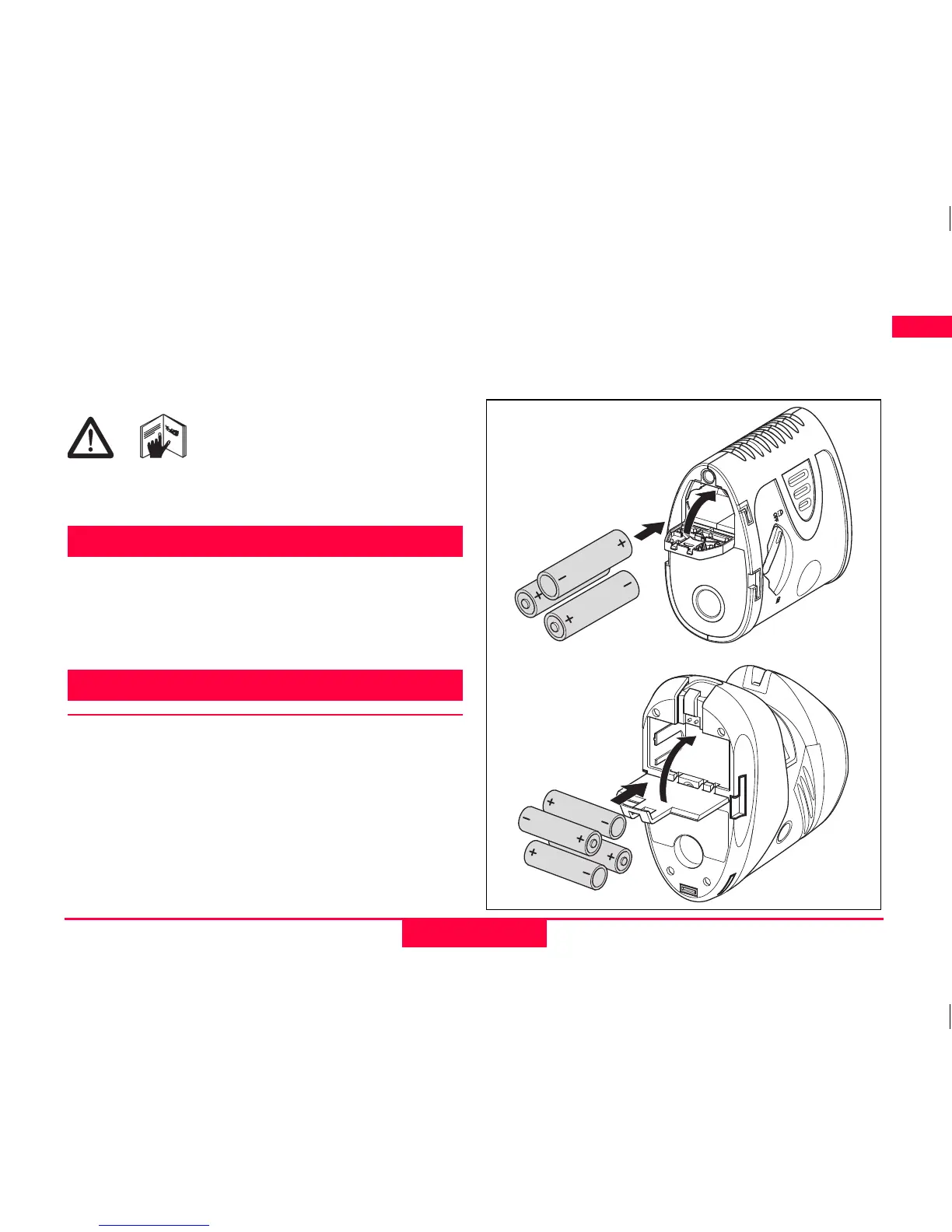

Inserting / replacing batteries
Slide the locking button forwards to unlock the
battery compartment. Open the battery compart-
ment cover and insert the batteries, observing the
correct polarity. Then press the battery compartment
cover back down until it engages.
The battery symbol 9 lights up when the battery
voltage is too low. Replace the batteries as soon as
possible.
• Insert the batteries observing the correct polarity
• Use alkaline batteries or rechargeable batteries only
• Remove the batteries if the instrument is not to
be used for a long period of time (to prevent
corrosion)
L2, P3, P5
L2P5, L2+

Leica Lino L2 Specifications

General

Battery type	AA
Battery voltage	1.5 V
Number of batteries supported	3
Type	Line level
Product color	Black, Red
Tripod thread	1/4 \
International Protection (IP) code	IP54
Laser class	2
Laser diode	635 nm (\u003C 5 mW)
Maximum range	15 m
Color of laser beam	Red
Leveling accuracy (±)	0.3 mm/m
Self-leveling range (±)	4 °
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	91 mm
Width	54 mm
Height	96 mm
Weight	321 g
