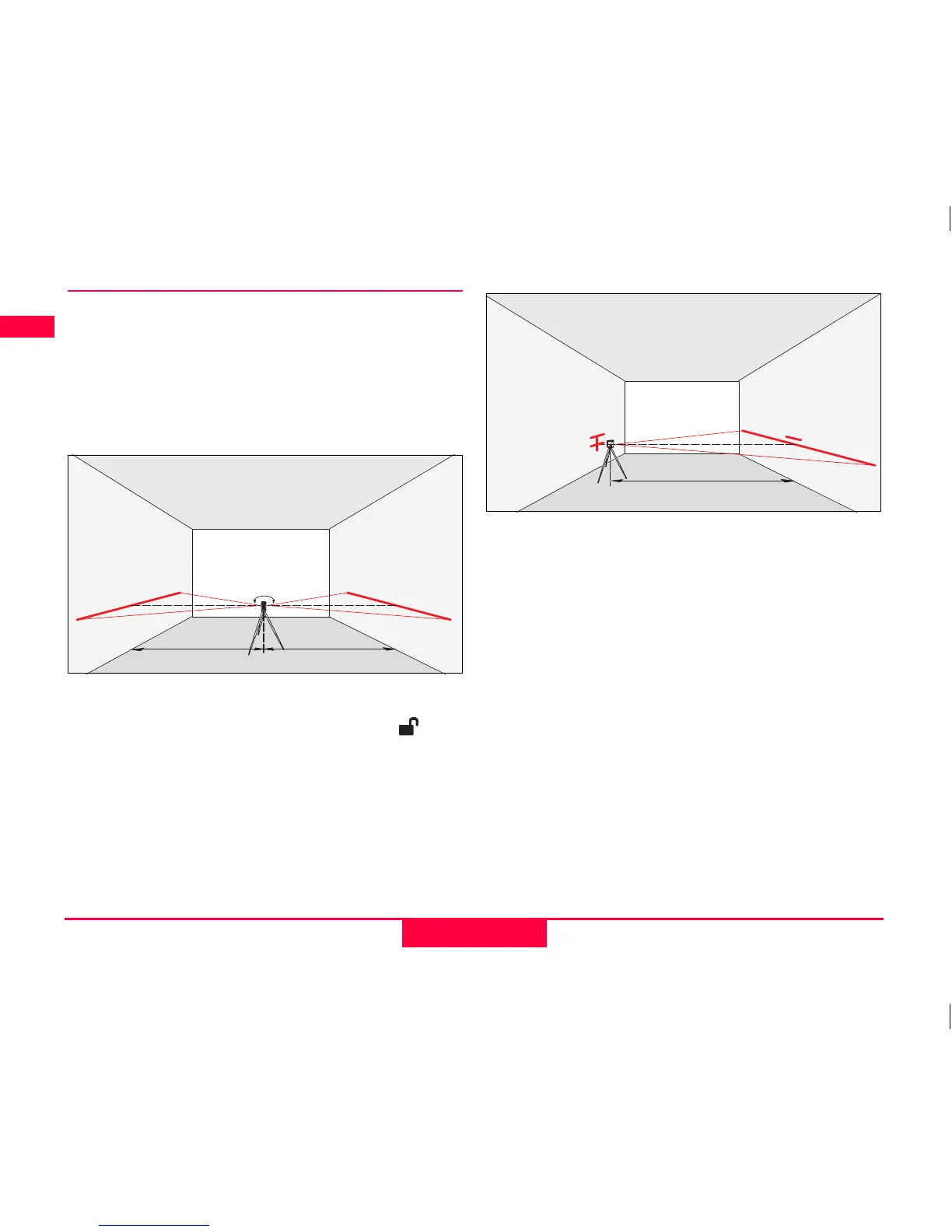

Checking the accuracy of the Leica
Lino
)
Check the accuracy of your Leica Lino regu-
larly and particularly before important measuring
tasks.
Checking the accuracy of the levelling
Set the instrument on a tripod half-way between two
walls (A+B) that are approx. 5 m apart.
Place the Lock switch 3 in the "Unlocked" ( )
position.
Direct the instrument at wall A and switch on the
instrument. Activate the horizontal laser line or laser
dot and mark the position of the line or the dot on
wall A (-> A1).
Rotate the instrument by 180° and mark the hori-
zontal laser line or the laser dot in exactly the same
way on wall B (-> B1).
Then place the instrument at the same elevation as
close as possible to wall A and again mark the hori-
zontal laser line or the laser dot on wall A (-> A2) .
Rotate the instrument by 180° again and mark the
laser on wall B (-> B2). Measure the distances of the
marked points A1-A2 and B1-B2. Calculate the differ-
ence of the two measurements. If the difference
does not exceed 2 mm, then the Leica Lino is within
tolerance.
| (A1 - A2) - (B1 - B2) | ≤ 2 mm
A1
B1
2.5 m 2.5 m
A1
A2
B1
B2
5 m

Leica Lino L2 Specifications

General

Battery type	AA
Battery voltage	1.5 V
Number of batteries supported	3
Type	Line level
Product color	Black, Red
Tripod thread	1/4 \
International Protection (IP) code	IP54
Laser class	2
Laser diode	635 nm (\u003C 5 mW)
Maximum range	15 m
Color of laser beam	Red
Leveling accuracy (±)	0.3 mm/m
Self-leveling range (±)	4 °
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	91 mm
Width	54 mm
Height	96 mm
Weight	321 g
