Leica Lino L2 User Manual

8
Operation
Leica Lino 757665d en
de
en
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
m
TR

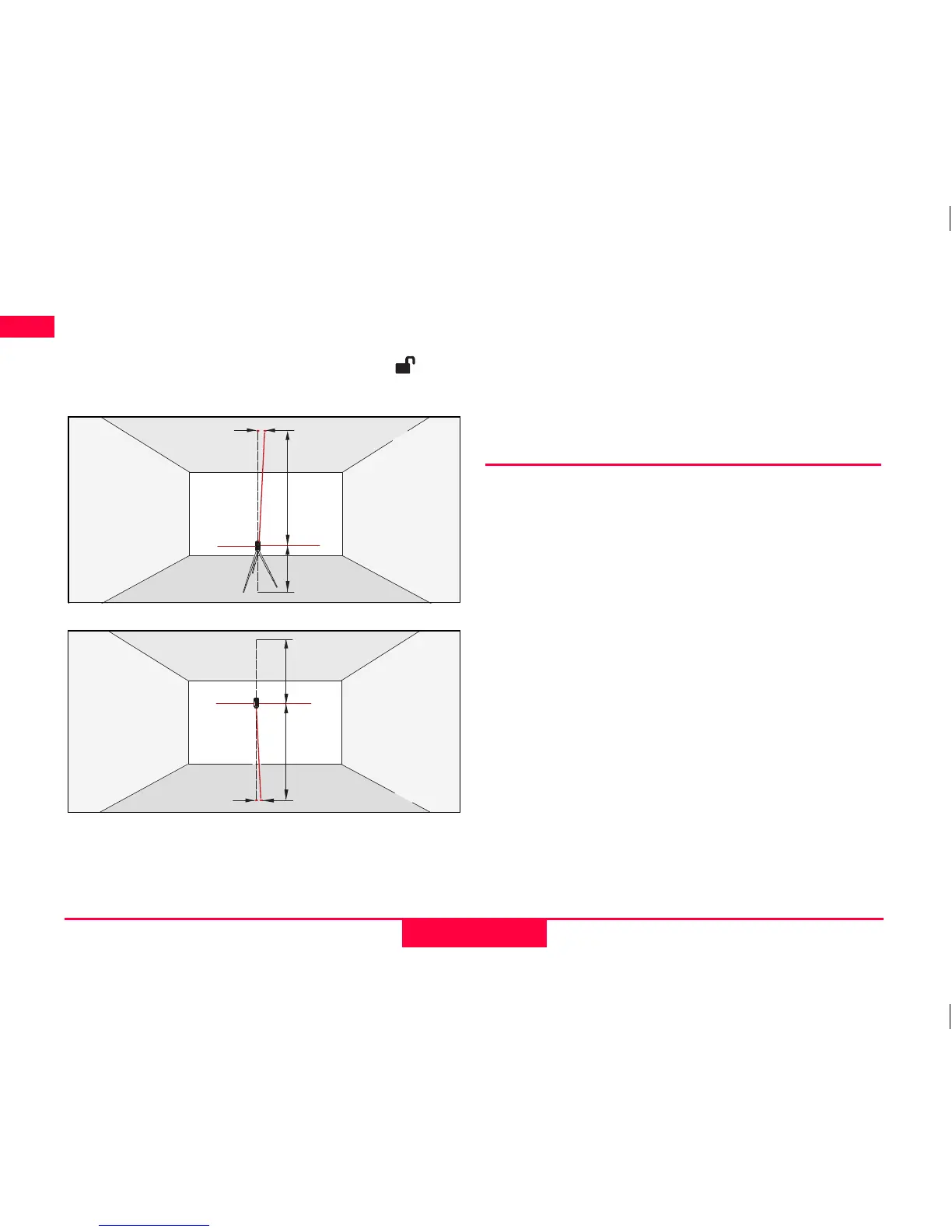

Checking the accuracy of the vertical
plumbing:
(only Lino P3, Lino P5 and Lino L2P5)
Place the Lock switch 3 in the "Unlocked" ( )
position.
Checking the upper plumbing point:
Checking the lower plumbing point:
Set up the laser on its tripod or wall mount bracket
near point A1 at a minimum distance of 1.5 m from
point B1. The horizontal laser is aligned in direction 1.
Mark the laser dots A1 and B1 with a pin.
Rotate the instrument by 180° so that it points in the
opposite direction 2 to direction 1. Adjust the instru-
ment so that the laser beam hits point A1 exactly. If
point B2 is no further than 2 mm away from point B1,
then the Leica Lino is within tolerance.
)
Should your Leica Lino be outside of the spec-
ified tolerance, please contact an authorised dealer-
ship or Leica Geosystems.
Display notices
Falling below or exceeding the permissible
temperature range:
The laser switches off and all symbols flash.
Outside of the self-levelling range:
The laser switches off and the symbol of the function
used starts to flash.
Pendulum locked:
(only Lino L2, Lino L2+ and Lino L2P5)
The laser beam is not levelled and the Lock symbol 7
lights up.
1
B1
A1
B2
1.5 m
max. 2 mm
2
1
B1
A1
B2
1.5 m
max. 2 mm
2

Leica Lino L2 Specifications

General

Battery type	AA
Battery voltage	1.5 V
Number of batteries supported	3
Type	Line level
Product color	Black, Red
Tripod thread	1/4 \
International Protection (IP) code	IP54
Laser class	2
Laser diode	635 nm (\u003C 5 mW)
Maximum range	15 m
Color of laser beam	Red
Leveling accuracy (±)	0.3 mm/m
Self-leveling range (±)	4 °
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	91 mm
Width	54 mm
Height	96 mm
Weight	321 g
