Operation

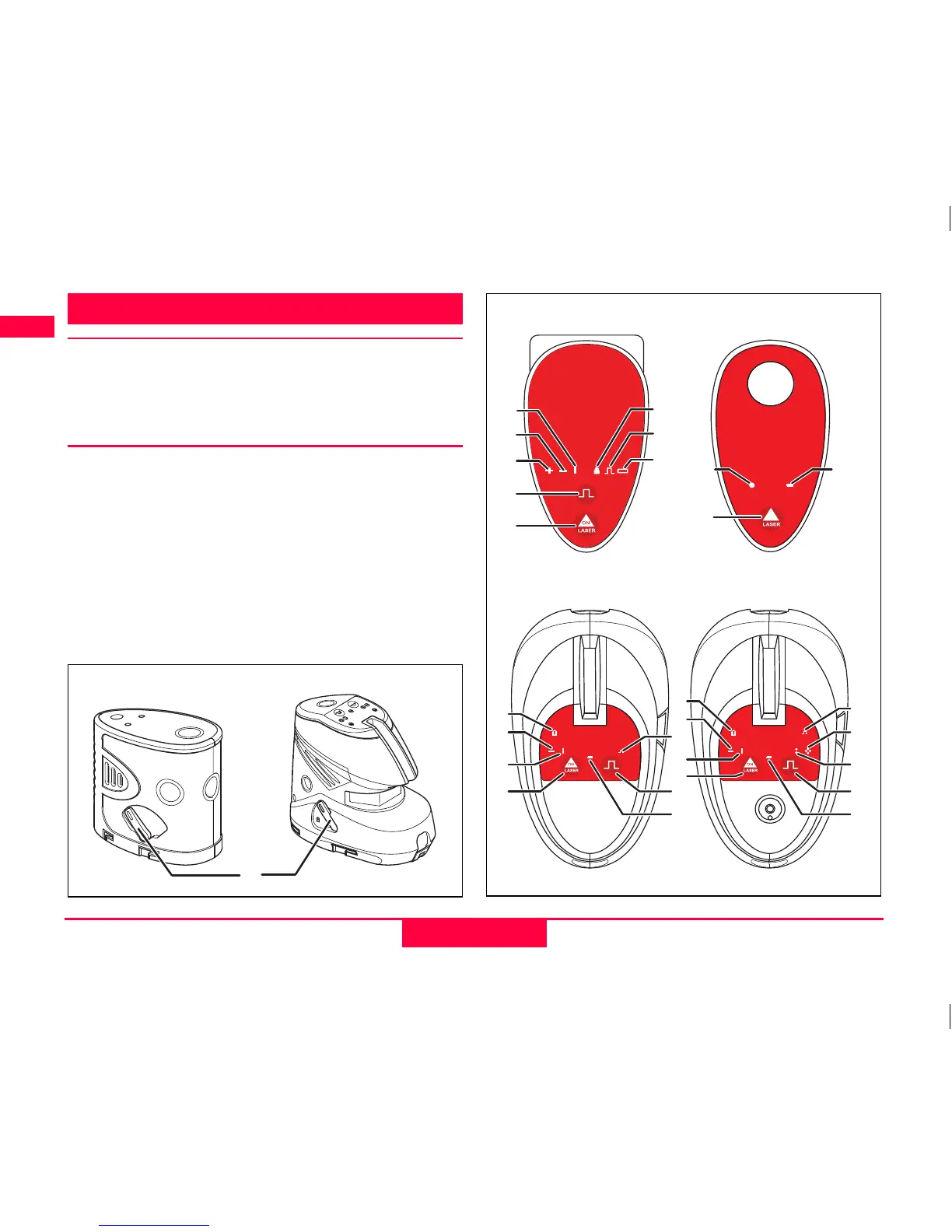

Keypad and control elements
1 LASER key
2 PULSE/POWERSAVE MODE key
3 Lock switch
Display
4 Laser crossline
5 Horizontal laser line
6 Vertical laser line
7 Lock ON
8 Pulse/Powersave mode ON
9 Battery voltage too low
AT Plumbing and crossline intersection point
AK Plumbing point
AL Laser switched on
L2, P3, P5 L2P5, L2+
3
L2+
7
5
6
1
8
2
9
Lino L2
+
L2P5
7
5
6
1
8
10
11
2
9
Lino L2P5
L2
1
2
4
5
6
7
8
9
Leica Lino L2
P3, P5
12
9
1
Leica Lino P3

Leica Lino L2 Specifications

General

Battery type	AA
Battery voltage	1.5 V
Number of batteries supported	3
Type	Line level
Product color	Black, Red
Tripod thread	1/4 \
International Protection (IP) code	IP54
Laser class	2
Laser diode	635 nm (\u003C 5 mW)
Maximum range	15 m
Color of laser beam	Red
Leveling accuracy (±)	0.3 mm/m
Self-leveling range (±)	4 °
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	91 mm
Width	54 mm
Height	96 mm
Weight	321 g
