Leica Lino L4P1 User Manual

Instrument Set-up
Ins trumen tSe t-u p
Introduction
The safety instructions (see Safety Instructions)
and the user manual should be read through care-
fully before the product is used for the first time.
The person responsible for the product must
ensure that allusers understand these directions
and adhere to them.
The symbols used have the following meanings:
WARNING
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, will result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, may result in
minor injury and/or appreciable material, financial
and environmental damage.
Important paragraphs which must be
adhered to in practice as they enable the
product to be used in a technically correct
and efficient manner.

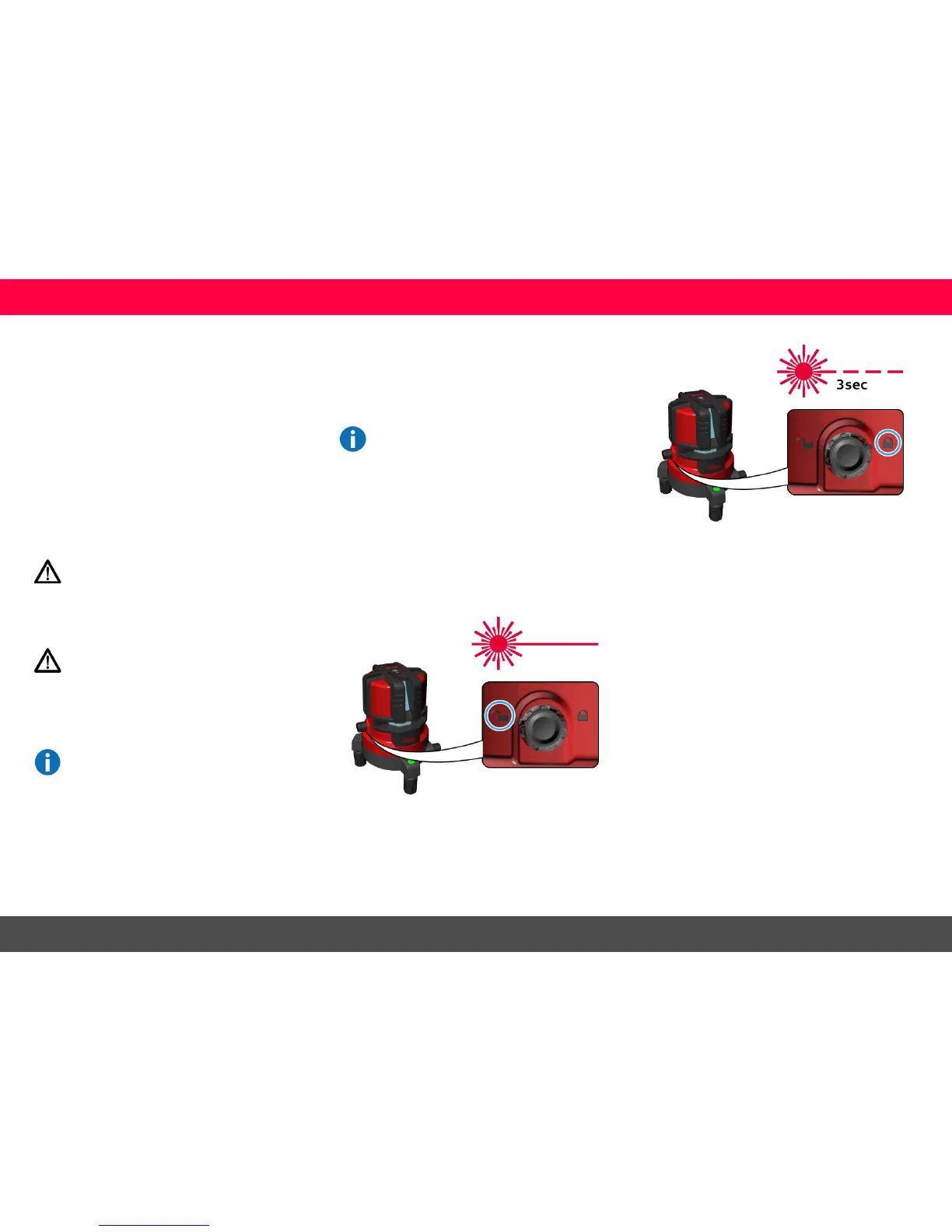

Levelling lock
See also Levelling the instrument
Levelling unlocked
In the unlocked position the instrument auto-
matically levels itself within the specified inclin-
ation range. (See Technical data)
Levelling locked
Turn the levelling lock in order to transport or tilt
the instrument beyond the self-levelling range.
When locked, the pendulum is fixed and the self-
levelling function is deactivated. In this case the
laser blinks every 3sec.
Leica Lino L4P1
4

Leica Lino L4P1 Specifications

General

Type	Line/Point level
Certification	IEC60825-1:2014
Product color	Grey, Red
Tripod thread	1/8, 1/4, 5/8 \
International Protection (IP) code	IP54
Laser class	2
Laser diode	635 nm (\u003C 5 mW)
Maximum range	15 m
Color of laser beam	Red
Leveling accuracy (±)	0.2 mm/m
Self-leveling range (±)	3 °
Battery type	AA
Operating time	24 h
Battery voltage	1.5 V
Number of batteries supported	4
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Width	125 mm
Height	162 mm
Weight	1170 g
