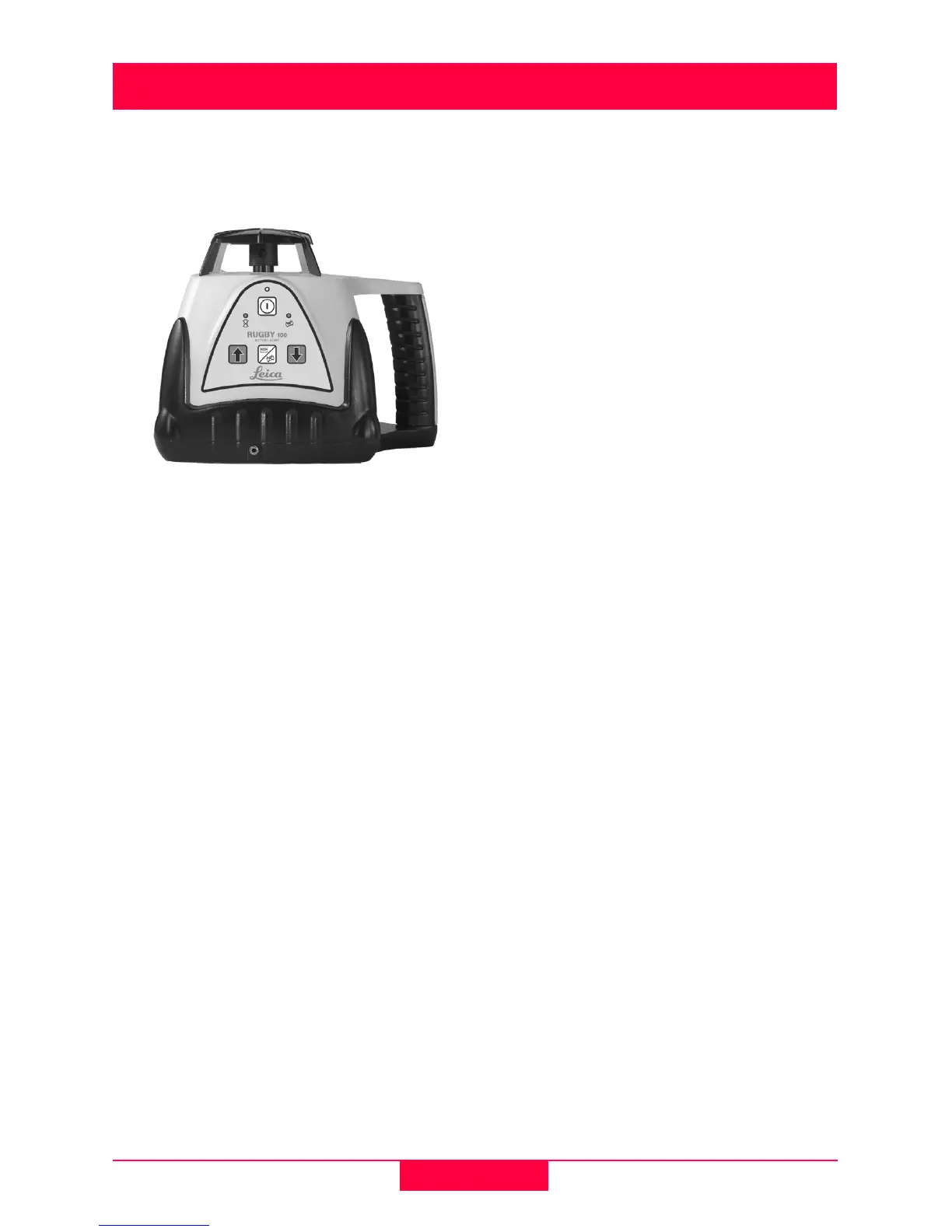

Leica Rugby 100 User Manual

10
Basic operation
Rugby 100-1.5.0en
Basic operation
Automatic Operation
• Set up the Rugby 100 on a 5/8”-11
Tripod or flat level surface.
• Press the Off/On Power Button
once to turn on the laser at 10 rps.
• Press the Off/On Power Button a
second time to decrease to 5 rps.
)
Units below Serial Number 100-
28500 turn on at 5 rps.
• The Rugby 100 will self-level and
then begin to rotate.
• Automatic H.I. Alert will become
active after 30 seconds.
• Work can begin.
Manual Operation
• Set up the Rugby 100 on a 5/8”-11
Tripod or flat level surface.
• Press the Off/On Power Button
once to turn on the laser at 10 rps or
twice at 5 rps.
• Press the Automatic/Manual Button
once to operate the Rugby in
manual mode.
• Align the plane of laser light to the
jobsite requirements.
• Work can begin.

Leica Rugby 100 Specifications

General

Self-Leveling Range	±5°
Laser Class	Class 2
IP Rating	IP54
Type	Rotary Laser Level
Rotation Speed	600 rpm
Laser Diode	635 nm
