NON ADJUSTABLE ROOFCURB – Installation instructions
FLEXYII_WSHP-IOM-0909-E Page 25
This roof curb will arrive as a packaged on a pallet and need to be built together.
The part will be connected by special corrosion free nails. It is not possible to connect with standard nail equipment because
there is a lot of power needed. Therefore, you need a pneumatic or electric device.
All parts must be sealed with polyurethan sealant during assembly.
Foam Insulation Installing

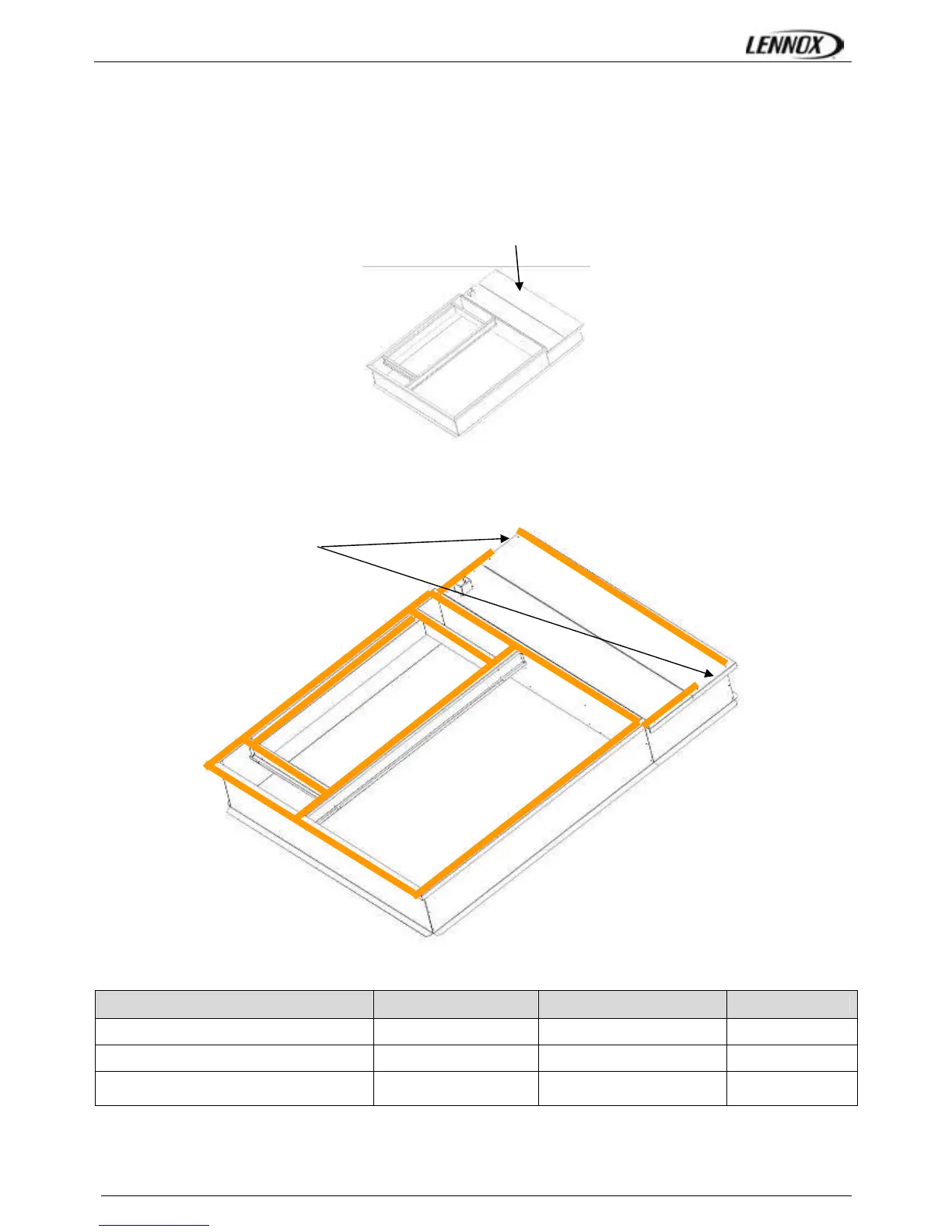

• Stick large foam pieces underneath the flat top
Foam Gasket Installing
• Stick gasket all around the curb flange’s top
Spare parts
Fbox Gbox Hbox
GASKET 5840071R Grey foam M1 17 m / 0.85 m² 19 m / 0.95 m² 21 m /1.1 m²
INSULATION 5840071R 760 x 1960 - 1.39 m² 920 x 1960 - 1.79m² tbd
Rivets 5820542X 4.8 x 8 mm 100 130 160
Let it free on 200 mm
long to enable water
drainage
