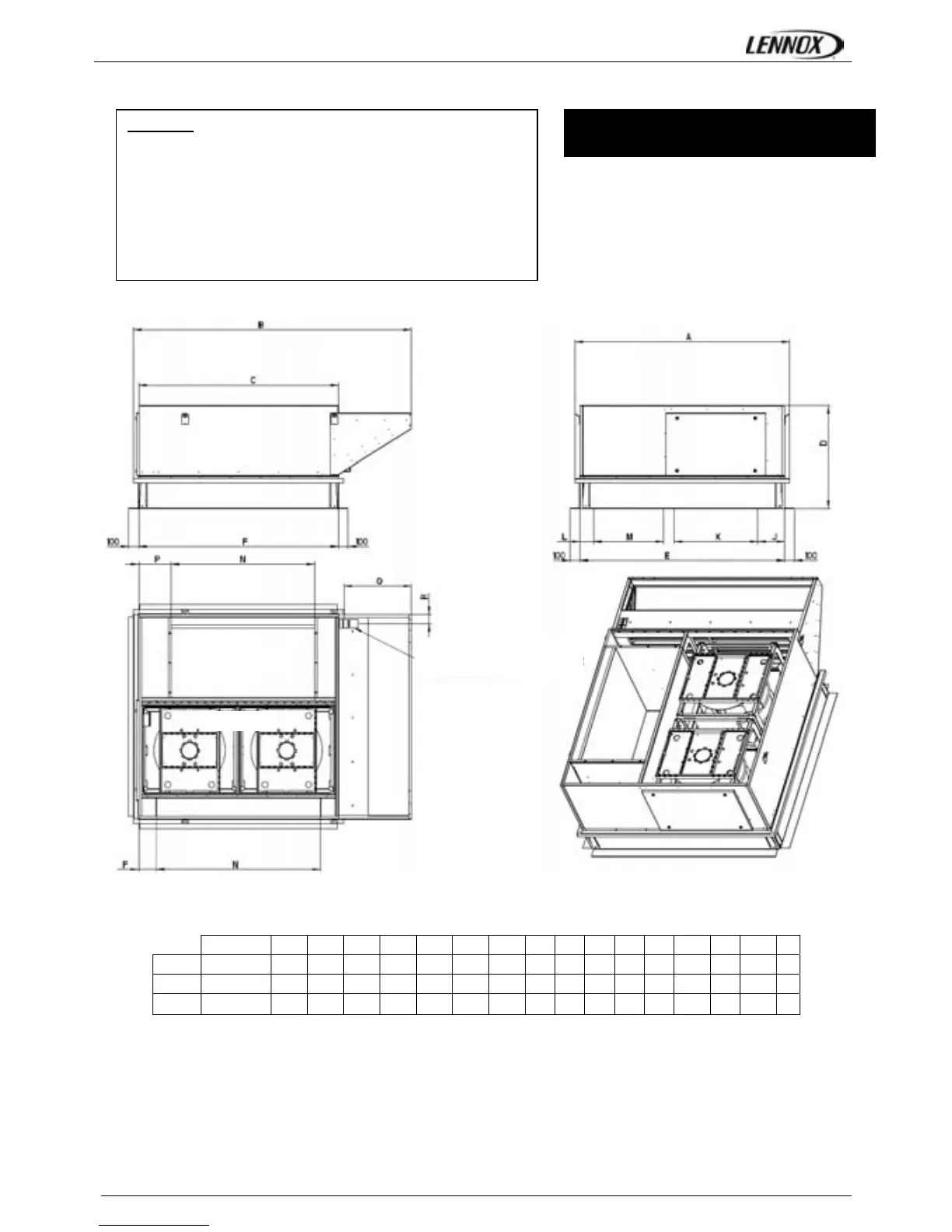

RETURN ROOFCURB
FLEXYII_WSHP-IOM-0909-E Page 29
SIZE A B C D E F G H J K L M N P Q R
F-BOX 85-100-120 2156 2740 2005 1030 2056 2005 1650 180 310 840 140 700 1440 326 593 95
G-BOX 150-170 2156 3437 2494 1030 2056 2494 1650 410 310 840 140 700 1540 434 770 95
H-BOX 200-230 2156 4073 2494 1030 2056 3294 2550 100 310 840 80 800 1830 434 1113 95
CAUTION: An approach ramp must be installed if the
machine installation requirements tell that it's necessary
to reach the main switch. This recommendation is valid
for installations in general and in particular for return
and curbs. It’s also valid to reach other parts of the unit:
filters, refrigerant circuit, etc…
SUPPLY AIR
EXHAUST AIR
All units
RETURN AIR
MAIN POWER ENTRY
