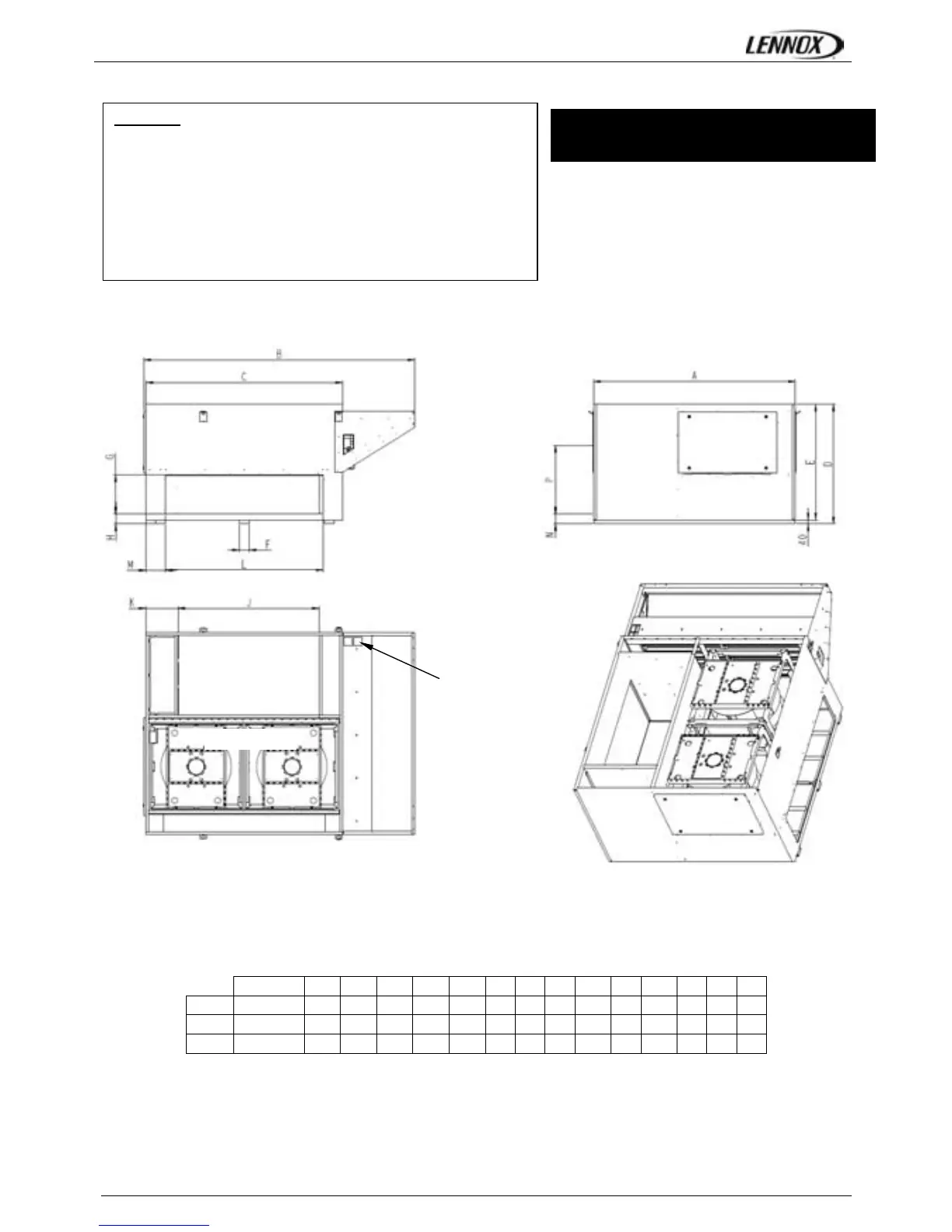

RETURN HORIZONTAL ROOFCURB
FLEXYII_WSHP-IOM-0909-E Page 30
SIZE A B C D E F G H J K L M N P
F-BOX 85-100-120 2056 2755 2005 1220 1180 100 400 100 1335 200 1605 200 100 700
G-BOX 150-170 2056 3465 2493 1220 1180 100 400 100 1540 200 2000 200 100 700
H-BOX 200-230 2056 4095 2493 1305 1205 200 400 150 1830 150 2293 100 260 700
CAUTION: An approach ramp must be installed if the
machine installation requirements tell that it's necessary to
reach the main switch. This recommendation is valid for
installations in general and in particular for return and
curbs. It’s also valid to reach other parts of the unit: filters,
refrigerant circuit, etc…
EXHAUST AIR
All units
RETURN AIR
SUPPLY AIR MAIN POWER ENTRY
