P-Factory Installed-Hot Gas Reheat (optional)
General
Hot Gas Reheat units provide a dehumidifying mode of op
eration. These units contain a reheat coil adjacent to and
downstream of the evaporator coil. Reheat coil solenoid
valve, L14, routes hot discharge gas from the compressor
to the reheat coil. Return air pulled across the evaporator
coil is cooled and dehumidified; the reheat coil adds heat to

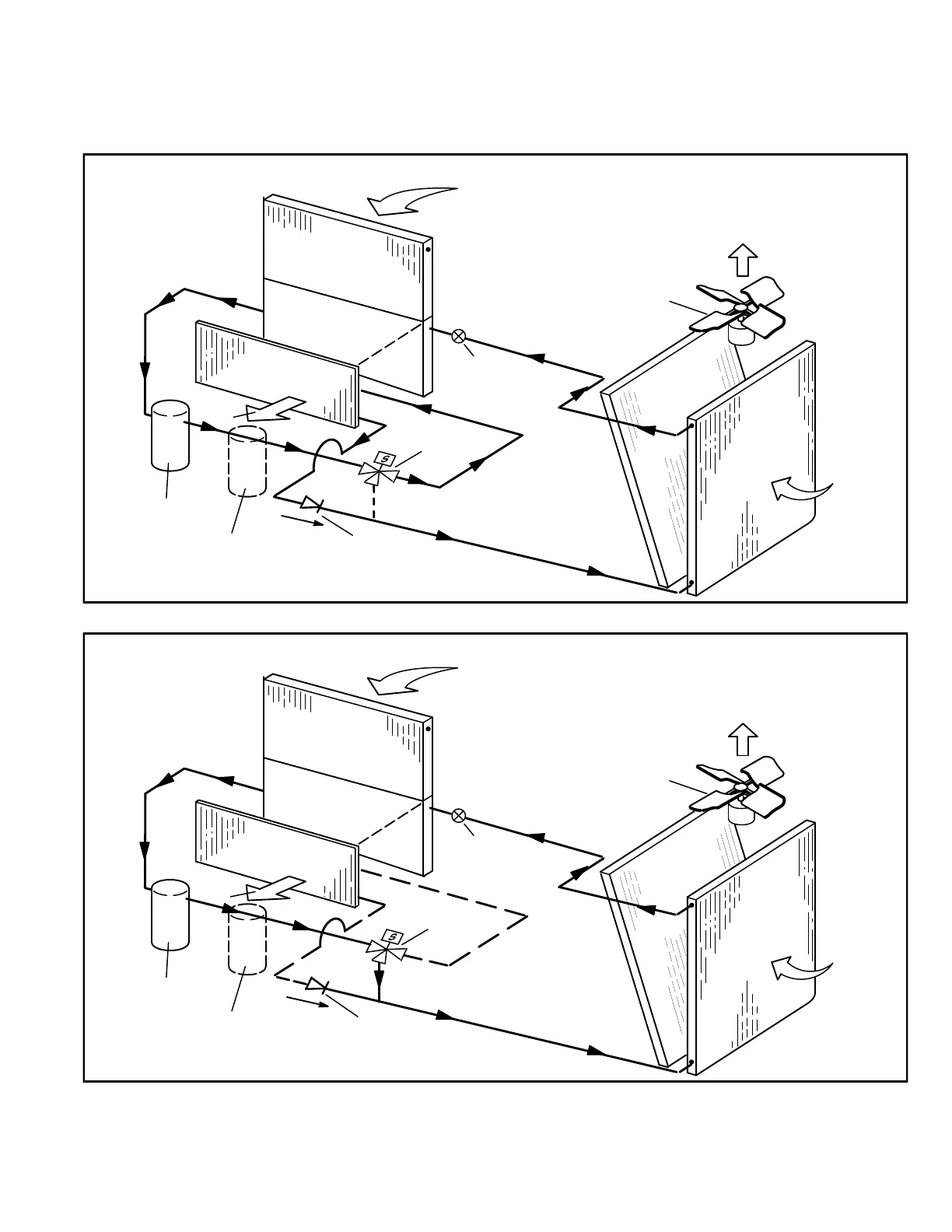

supply air. See figure 48 for reheat refrigerant routing and
figure 49 for standard cooling refrigerant routing.
REHEAT
COIL
FIGURE 48
REHEAT MODE REFRIGERANT ROUTING
STAGE 1
CONDENSER
COIL
STAGE 2
CONDENSER
COIL
STAGE 2
EVAPORATOR
COIL
STAGE 1
EVAPORATOR
COIL
SUPPLY
AIR
RETURN
AIR
OUTDOOR
AIR
TWO
CONDENSER
FANS
STAGE 1
COMPRESSOR
STAGE 2
COMPRESSOR
EXPANSION
VALVE
CHECK
VALVE
REHEAT
VALVE
REHEAT
COIL
FIGURE 49
COOLING MODE REFRIGERANT ROUTING
STAGE 1
CONDENSER
COIL
STAGE 2
CONDENSER
COIL
STAGE 2
EVAPORATOR
COIL
STAGE 1
EVAPORATOR
COIL
SUPPLY
AIR
RETURN
AIR
OUTDOOR
AIR
TWO
CONDENSER
FANS
STAGE 1
COMPRESSOR
STAGE 2
COMPRESSOR
EXPANSION
VALVE
CHECK
VALVE
REHEAT
VALVE
