ML193UH / Page 13

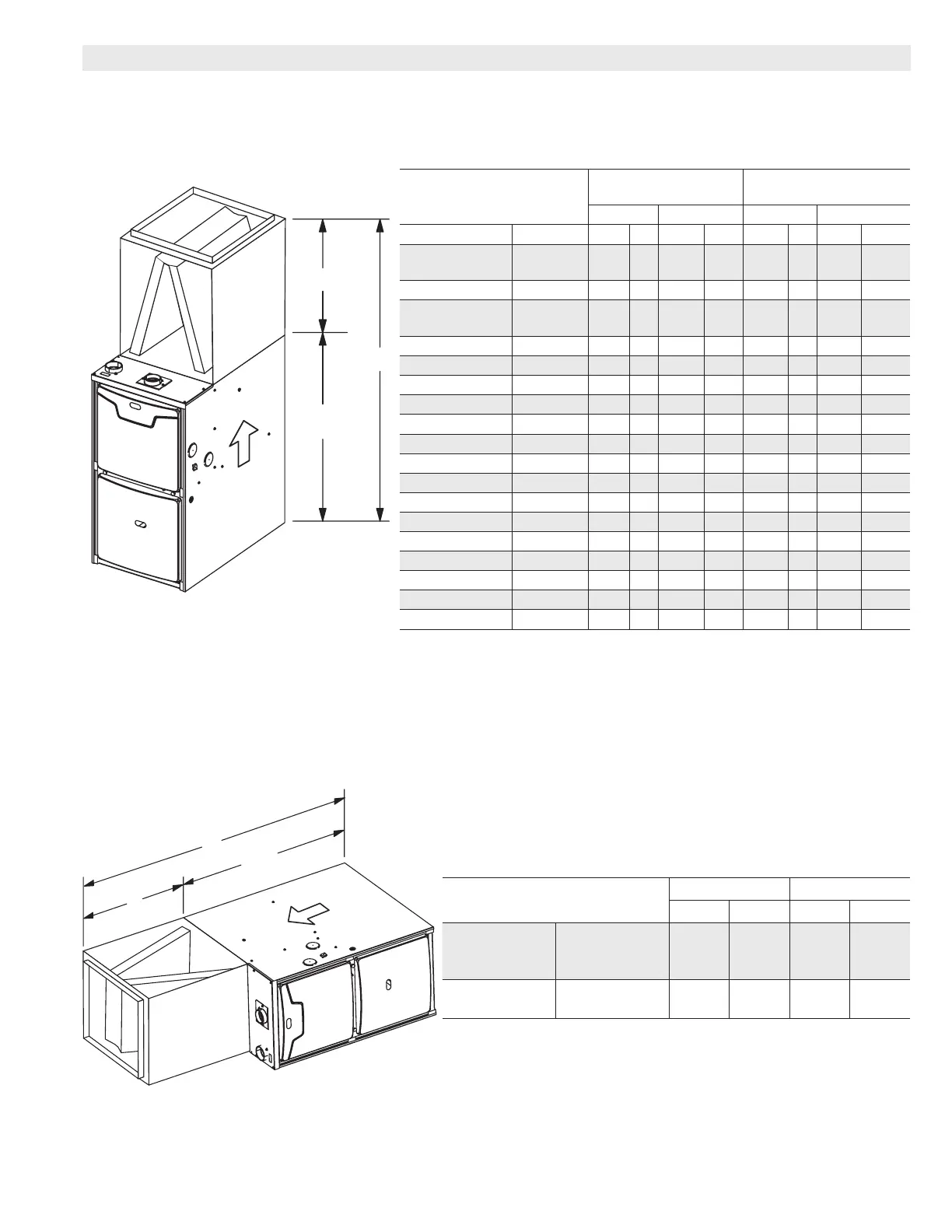

DIMENSIONS - INCHES (MM) - FURNACE/COIL COMBINED DIMENSIONS
UPFLOW POSITION
Model No
Cased
Uncased
(CX34 - cased only)
A B A B
CX34 C33 in. mm in. mm in. mm in. mm
CX34-18/24B-6F
CX34-18/24C-6F
C33-24B
C33-24C
16-1/2 419 49-1/2 1257 13-7/8 352 46-7/8 1191
CX34-25B-6F C33-25B 18-1/2 470 51-1/2 1308 15-7/8 403 48-7/8 1241
CX34-30B-6F
CX34-30C-6F
C33-30B
C33-30C
20-1/2 521 53-1/2 1359 17-3/4 451 50-3/4 1289
CX34-31B-6F C33-31B 22-1/2 572 55-1/2 1410 20-1/4 514 53-1/4 1353
CX34-36B-6F C33-36B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394
CX34-36C-6F C33-36C 24-1/2 622 57-1/2 1461 21-1/4 540 54-1/4 1378
CX34-38B-6F C33-38B 24-1/2 622 57-1/2 1461 22 559 55 1397
CX34-42B-6F C33-42B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394
CX34-43B-6F C33-43B 27-1/2 699 60-1/2 1537 26-1/4 667 59-1/4 1505
CX34-43C-6F C33-43C 27-1/2 699 60-1/2 1537 25-3/4 654 58-3/4 1492
- - - C33-44C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384
CX34-44/48B-6F C33-48B 24-1/2 622 57-1/2 1461 22-1/8 562 55-1/8 1400
CX34-44/48C-6F C33-48C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384
CX34-49C-6F C33-49C 29-1/2 749 62-1/2 1588 28-1/2 724 61-1/2 1562
CX34-50/60C-6F C33-50/60C27-1/2 699 60-1/2 1537 24-3/4 629 57-3/4 1467
CX34-60D-6F C33-60D 25-1/2 648 58-1/2 1486 24-3/4 629 57-3/4 1467
CX34-62C-6F C33-62C 31-1/2 800 64-1/2 1638 30-5/8 778 63-5/8 1616
CX34-62D-6F C33-62D 29-1/2 749 62-1/2 1588 28-3/4 730 61-3/4 1568
HORIZONTAL POSITION
Model
Number
A B
in. mm in. mm
CH33-36B-2F
CH33-36C-2F
CH33-42B-2F
CH33-48C-2F
CH33-60D-2F
26-1/2 673 59-1/2 1511
CH33-44/48B-2F
CH33-50/60C-2F
CH33-62D-2F 31-1/2 800 64-1/2 1638
33
(838)
A
B
A
B
33
(838)
