Parts Identication, Dimensions and Specications
Parts IdentIfIcatIon
Power Cord Opening
UVA Lamp Viewer
A
ccess Panel
UVA Lamp
UVA Lamp Light Sensor
UVA Lampholder /
PCO Cartridge
UVA Lampholder /
PCO Cartridge Rear
Mounting Bracket
Healthy Climate Carbon
Clean 16 Air Filter
Cabinet
Communication Control
UVA Lamp Electrical Connector
UVA Lamp Ballast

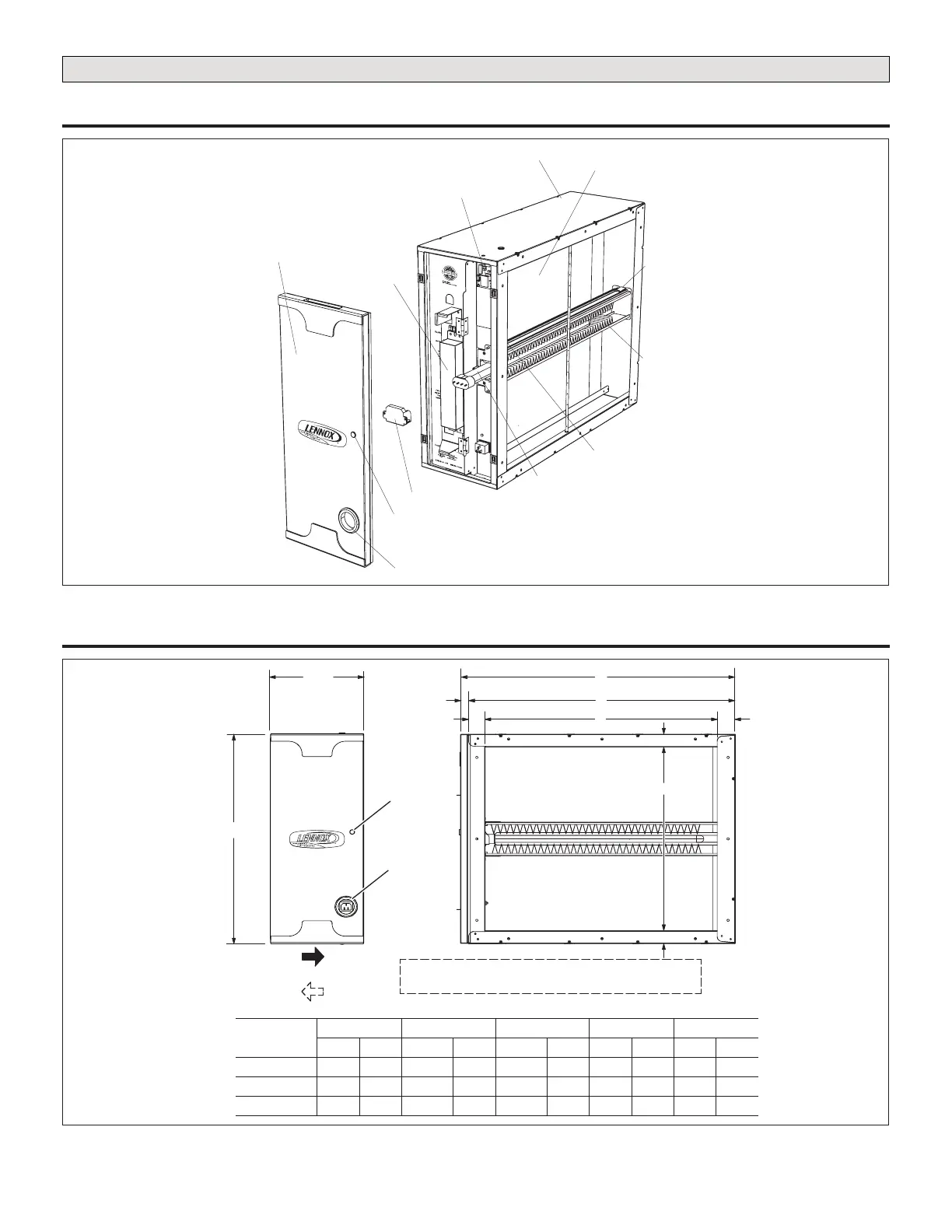

Figure 1. Parts Identication
dImensIons
top for bottom.
8-3/4
(222)
11/16
(17)
1-3/4
(33)
1-3/4
(33)
1-5/16 (33)
1-5/16 (33)
INLET AND OUTLET
OPENING
SAME SIZE
A
B
C
D
1
AIR FLOW
Power
Connection
UVA Lamp
Sight Glass
1
NOTE - Airflow may be reversed by rotating the unit
E
Model No.
AB CDE
inches mm inches mm inches mm inches mm inches mm
PCO3S-14-16 23-3/4 603 23 584 20-1/4 51421-1/8537 18-1/2 470
PCO3S-16-16 26-1/2 673 25-3/4 654 23 58417-1/2445 14-5/8 371
PCO3S-20-16 26-1/2 673 25-3/4 654 23 58421-1/8537 18-1/2 470
Figure 2. Dimensions
