Lenovo G50-80 User Manual

39
Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70/Z50-75/G50-80
1050 PCI Express Mini Card for wireless LAN
Foraccess,removetheseFRUsinorder:
• “1010Batterypack”onpage33
• “1020Basecover”onpage34

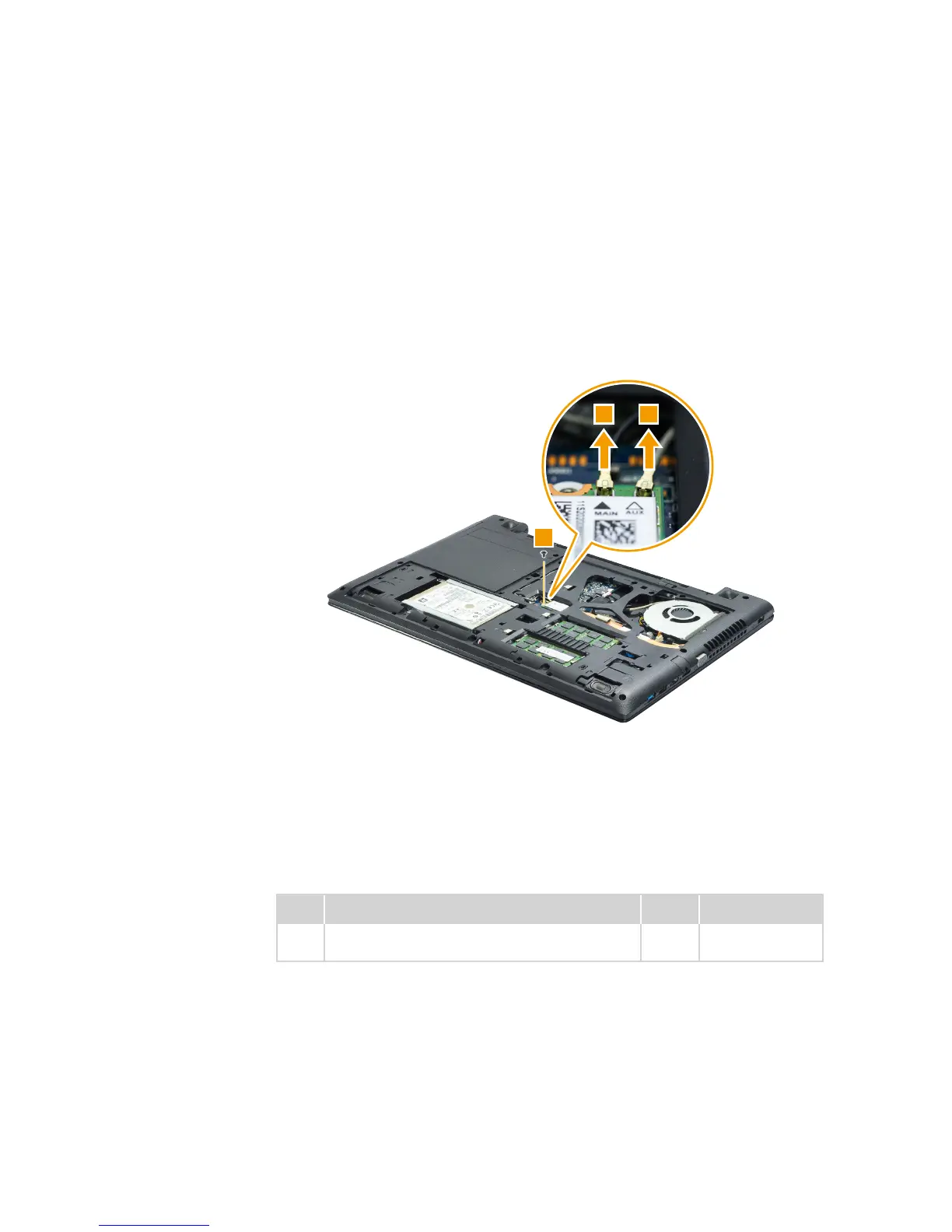

Figure 5. Removal steps of PCI Express Mini Card for wireless LAN
DisconnectthetwowirelessLANcables(black,grey)
1
,andthenremovethe
screw
2
.

 
Instep
1
,unplugthejacksbyusingtheremovaltoolantennaRFconnector
(P/N:08K7159),orpickuptheconnectorswithyourngersandgentlyunplug
theminthedirectionshownbythearrows.
Notes:
ThewirelessLANcardhas2cablesinstep
1
.
 ThewirelessLANcardinsomemodelsmighthave3cablesinstep
1
.
Step Screw (quantity) Color Torque
2
M2×3.5mm,Phillips-head,nylok-coated(1)
WLANcard+MB
Black 1.5~2.0kgf*cm

Lenovo G50-80 Specifications

General

Weight	2.5 kg (5.51 lbs)
Webcam	720p HD webcam
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	Up to 8GB DDR3L
Storage	Up to 1TB HDD
Display	15.6-inch HD (1366 x 768) or FHD (1920 x 1080)
Graphics	Intel HD Graphics or AMD Radeon R5 M330
Operating System	Windows 10
Battery	Up to 4 hours
Optical Drive	DVD-RW
Connectivity	Bluetooth 4.0
Ports	1 x USB 3.0, 2 x USB 2.0, HDMI, RJ-45, Audio Combo Jack
Card Reader	2-in-1 card reader (SD, MMC)
Dimensions	384 x 265 x 25 mm (15.1" x 10.4" x 0.98")
