Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70/Z50-75/G50-80
1170 LCD cable and antenna assembly
Foraccess,removetheseFRUsinorder:
• “1010Batterypack”onpage33
• “1020Basecover”onpage34
• “1030Opticaldrive”onpage36
• “1040Harddiskdrive”onpage37
• “1050PCIExpressMiniCardforwirelessLAN”onpage39
• “1070Fanassembly”onpage42
• “1080Keyboard”onpage44
• “1090Keyboardbezel”onpage47
• “1100ODDboardandUSB&audioboard”onpage50
• “1110Systemboard”onpage54
• “1130SpeakersandDC-incable”onpage58
• “1140LCDunit”onpage60
• “1150LCDfrontbezel,LCDpanel,andhinges”onpage62

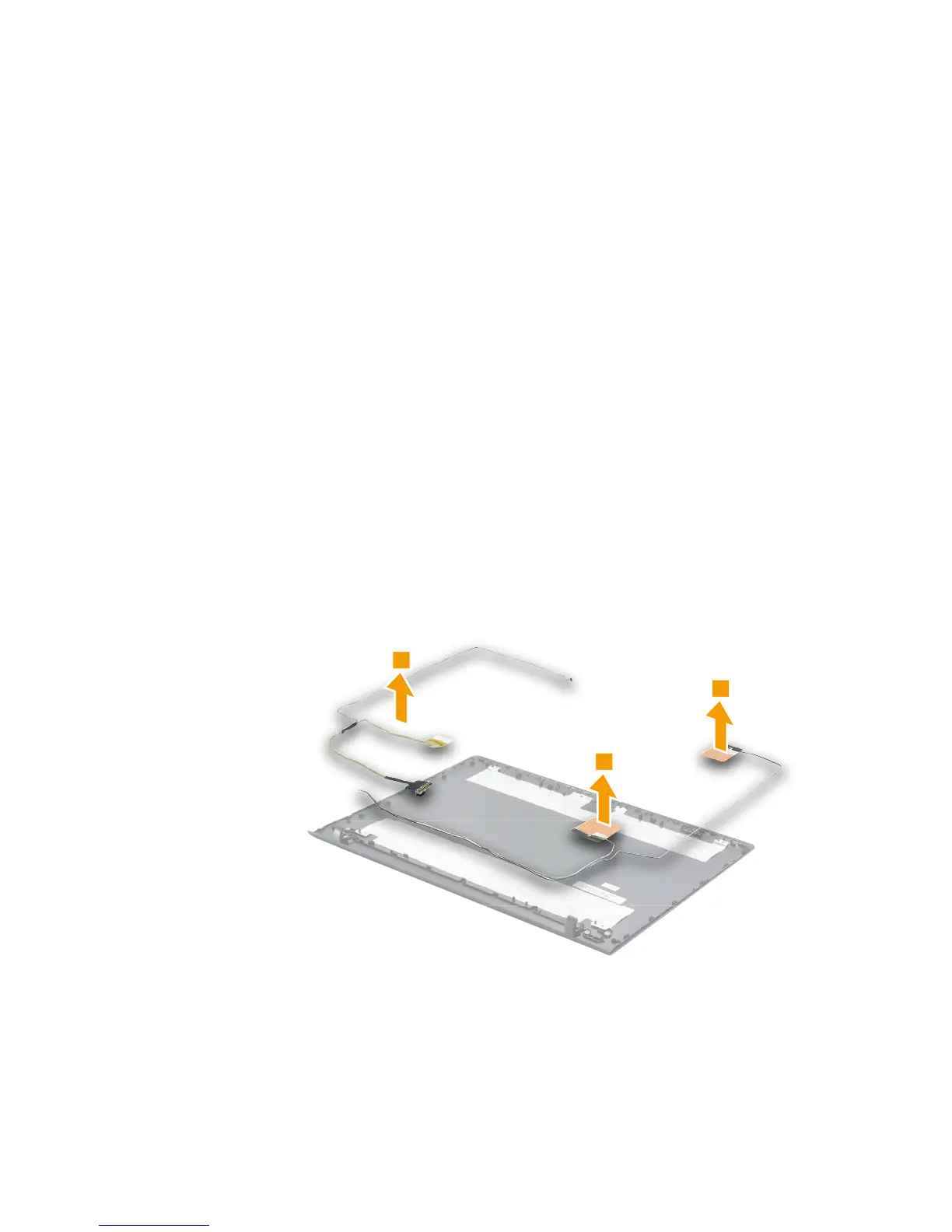

Figure 17. Removal steps of LCD cable and antenna assembly
RemovetheLCDcableandantennaassemblyinthedirectionshownby
arrows
1
.




Lenovo G50-80 Specifications

General

Weight	2.5 kg (5.51 lbs)
Webcam	720p HD webcam
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	Up to 8GB DDR3L
Storage	Up to 1TB HDD
Display	15.6-inch HD (1366 x 768) or FHD (1920 x 1080)
Graphics	Intel HD Graphics or AMD Radeon R5 M330
Operating System	Windows 10
Battery	Up to 4 hours
Optical Drive	DVD-RW
Connectivity	Bluetooth 4.0
Ports	1 x USB 3.0, 2 x USB 2.0, HDMI, RJ-45, Audio Combo Jack
Card Reader	2-in-1 card reader (SD, MMC)
Dimensions	384 x 265 x 25 mm (15.1" x 10.4" x 0.98")
