Connecting serial ATA drives
A serial hard disk drive can be connected to any available SATA IDE connector.

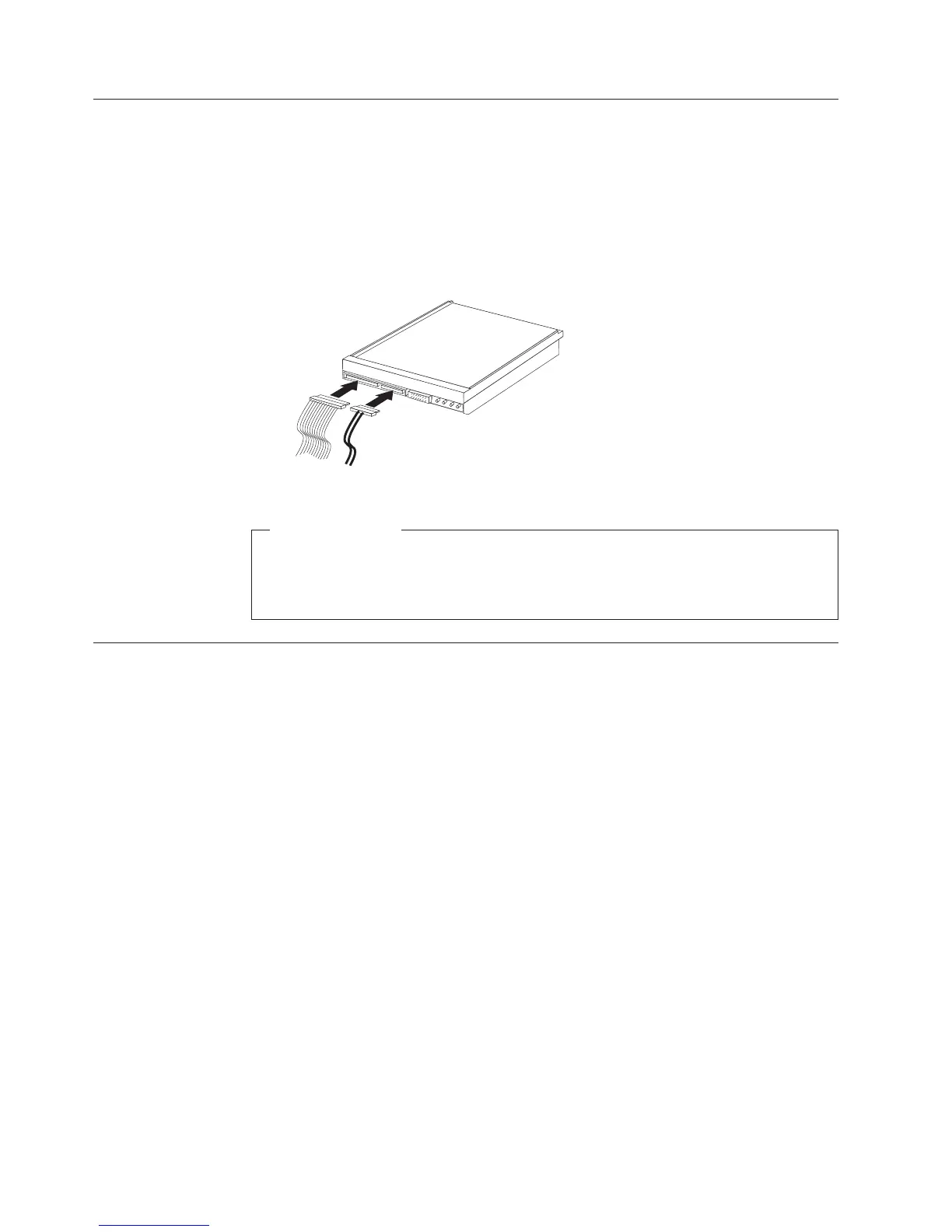

1. Locate the signal cable that comes with the new drive.
2. Locate an available SATA IDE connector on the system board. See “Identifying
parts on the system board” on page 23.
3. Connect one end of the signal cable to the drive and the other to any available
SATA IDE connector on the system board.
4. Locate one of the extra five-wire power connectors and connect it to the drive.
What to do next
v To work with another option, go to the appropriate section.
v To complete the installation, go to “Replacing the cover and connecting the
cables” on page 34.
Installing security features
To help prevent hardware theft and unauthorized access to your computer, several
security lock options are available. The following sections will help you identify
and install the various types of locks that might be available for your computer. In
addition to physical locks, unauthorized use of your computer can be prevented by
a software lock that locks the keyboard until a correct password is typed in.
Make sure that any security cables you install do not interfere with other computer
cables.
