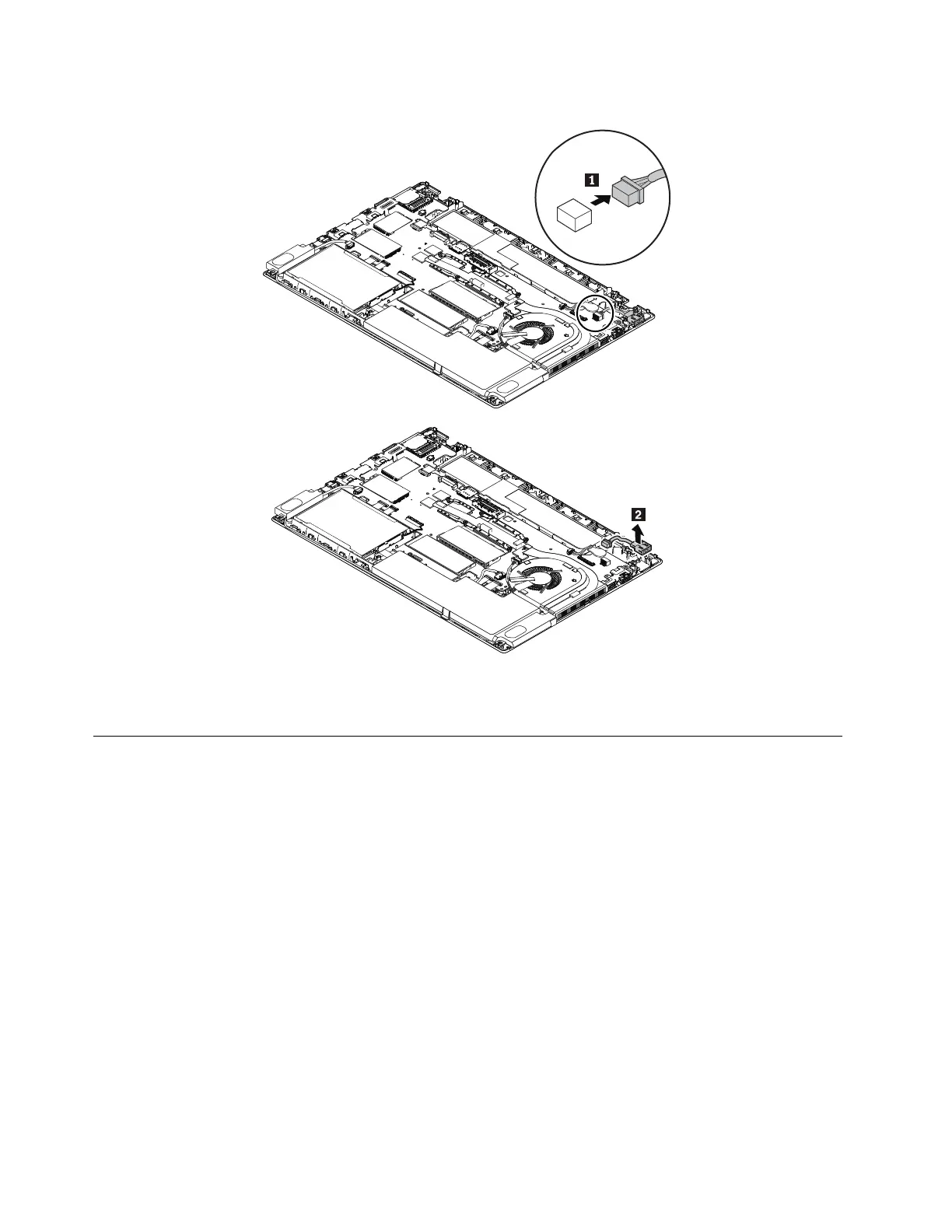

Removalstepsofthedc-incableassembly
Wheninstalling:
Ensurethattheconnectorofthedc-incableisattachedfirmly.
1220Keyboardbezelassembly
Note:Beforeyoustarttheservicing,disablethebuilt-inbattery.See“Disablingthebuilt-inbattery”
onpage66.
Foraccess,removetheseFRUsinorder:
•“1010Removablebattery”onpage66
•“1020MicroSIMcard”onpage67
•“1030Basecoverassembly”onpage68
•“1040Memorymodule”onpage70
•“1050Internalstoragedrive”onpage71
•“1060Wireless-WANcard”onpage75or“1080M.2solid-statedriveintheWireless-WAN-cardslot”
onpage78
•“1070Wireless-LANmoduleorWiGigmodule”onpage76
•“1090Keyboard”onpage79
•“1100Coin-cellbattery”onpage81
•“1110Speakerassembly”onpage82
•“1120Built-inbattery”onpage83
•“1130Smart-cardreaderassembly”onpage84
•“1140I/ObracketandRJ45bracket”onpage85
•“1150Thermalfanassembly”onpage86
96T470HardwareMaintenanceManual
