Lenovo ThinkPad X1 Yoga Gen 8 User Manual

Installation procedure
Troubleshooting
If the computer does not start up after you reinstall the base cover assembly, disconnect the ac power
adapter and then reconnect it to the computer.
Wireless WAN card and wireless WAN card bracket (for selected models)
The following information is only for the computer with user-installable modules. Ensure that you use only a
Lenovo-authorized wireless module specifically tested for this computer model. Otherwise, the computer will
generate an error-code beep sequence when you turn on the computer.
Prerequisite
Before you start, read
Generic Safety and Compliance Notices and print the following instructions.
Attention: Do not touch the contact edge of the wireless WAN card. Otherwise, the wireless WAN card
might get damaged.
For access, do the following:
1. Disable the built-in battery. See “Disable Fast Startup and the built-in battery” on page 47.
2. Turn off the computer and disconnect the computer from ac power and all connected cables.
3. Close the computer display and turn over the computer.

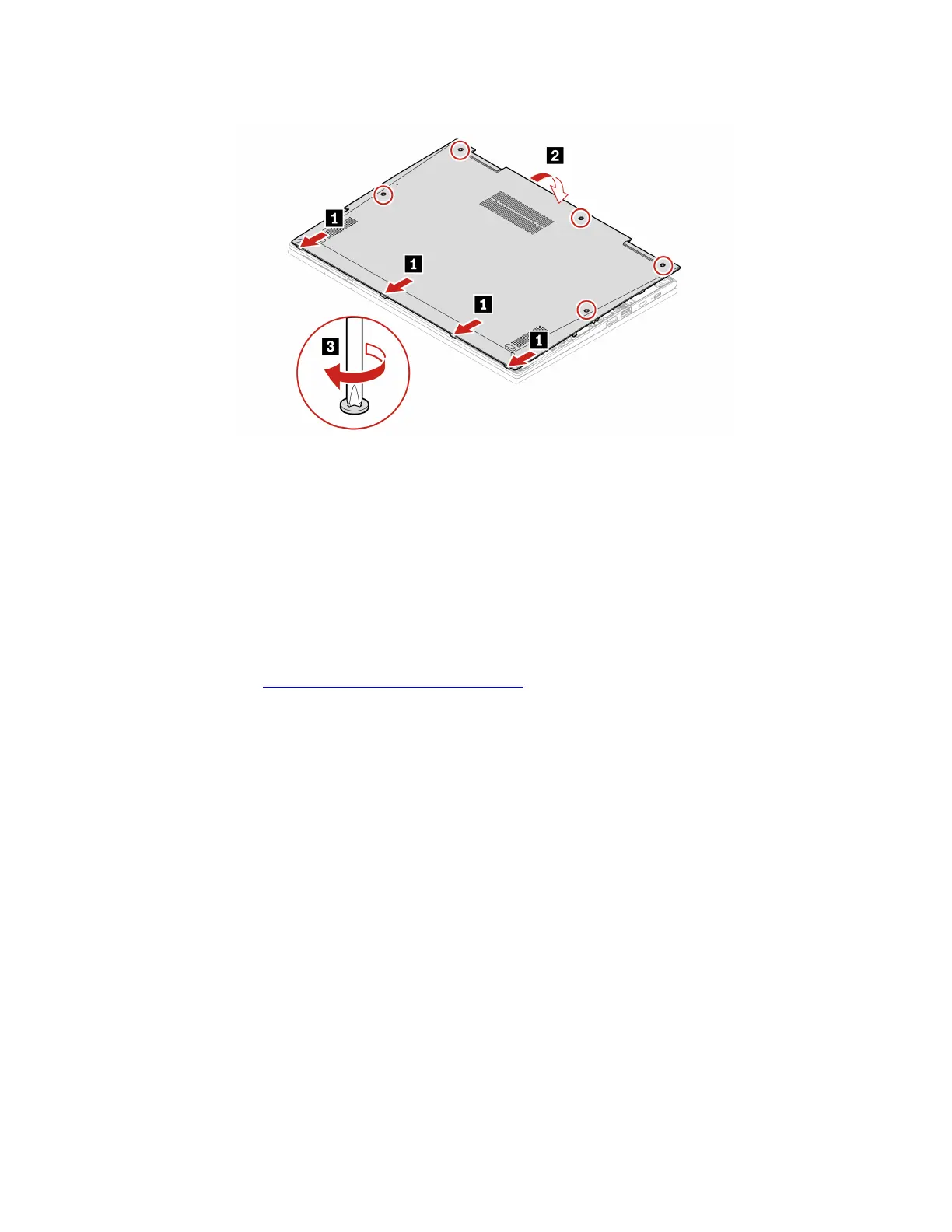

4. Remove the base cover assembly. See “Base cover assembly” on page 48.
Chapter 6. CRU replacement 49

Lenovo ThinkPad X1 Yoga Gen 8 Specifications

General

Memory	Up to 32GB LPDDR5
Weight	Starting at 1.38 kg (3.04 lbs)
Operating System	Windows 11 Pro
Audio	Dolby Atmos Speaker System
Processor	13th Gen Intel Core i7
Display	14" 2.8K (2880 x 1800) OLED, 400 nits
Display Option	Touchscreen
Graphics	Intel Iris Xe Graphics
Storage	Up to 2TB PCIe SSD
Battery	57Wh
Ports	2x Thunderbolt 4, 2x USB-A 3.2 Gen 1, HDMI 2.1, headphone/mic combo jack
Connectivity	Wi-Fi 6E, Bluetooth 5.2
Camera	FHD 1080p with ThinkShutter
Security	Fingerprint reader, dTPM 2.0
