Accessories
Controls
The switch/potentiometer unit (IP65 degree of protection) is
mounted directly on the 8200 motec frequency inverter or,
for ease of access, on the machine.
With the switch/potentiometer unit and an I/O function
module (Standard I/O, Application I/O, Bus I/O), an analog
setpoint can be preset on the frequency inverter with the
integrated potentiometer; the drive can for example be
started/stopped or the direction of rotation changed using
the rotary switch.
Note:
An application example with the switch/potentiometer unit
appears on page 4-25.

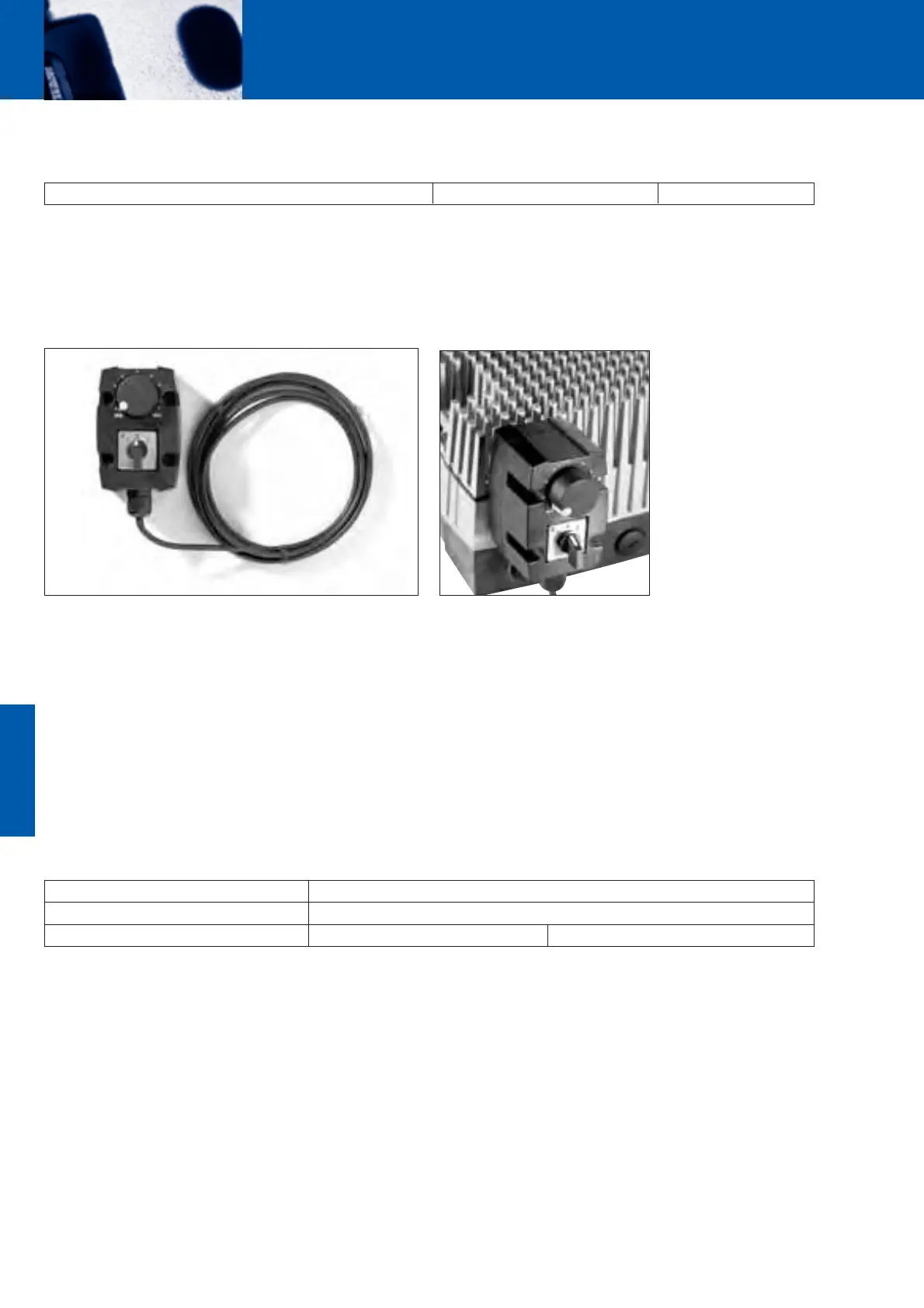

Switch/Potentiometer unit
General data and operating conditions
Degree of protection IP65
Dimensions (W x H x D) Approx. 65 mm x 115 mm x 85 mm
Assembly options On the heatsink of the motec On a wall
Scope of supply
• 1 switch/potentiometer unit prefabricated with 2.5 m
connecting cable
• 1 mounting plate 60 mm x 60 mm
• 4 M4 x 30 screws for fastening the switch/
potentiometer unit to the mounting plate
• 2 M4 x 20 screws with spring steel sheets for fastening
to the heatsink of the 8200 motec
Switch/Potentiometer unit – can be used in the 8200 motec Order no. E82ZBU
Switch/Potentiometer unit
