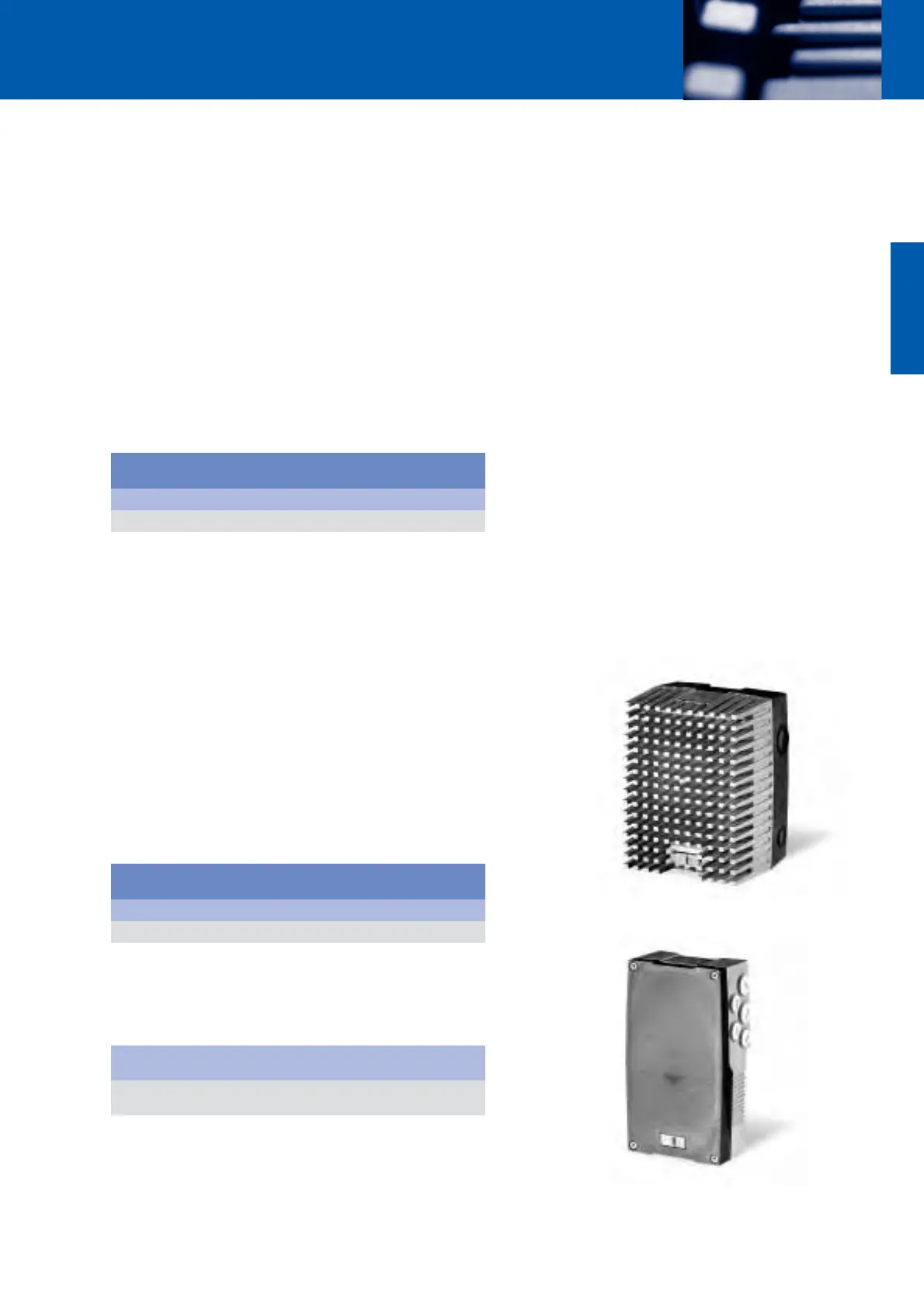

Product information
Selection guide – Distributed drive solutions
Quick selection guide
The controller configuration which features in the quick
selection guide is suitable for most common applications.
Information about other configurations can be found in the
corresponding chapters.
8200 motec
Operation at rated power (normal operation)
In normal operation, the inverter is set for the rated power
of the motor.
Note: During operation at increased rated power, a larger
motor may be used under certain circumstances at the
same inverter power as in normal operation, e.g. in pump
and fan applications. Please use the quick selection guide
on page 1-14 to make your selections for "Operation at
increased rated power".
Supply voltage
230 V, 1-phase, 0.25 to 0.37 kW page 1-12 ff.
400 V / 500 V, 3-phase, 0.55 to 7.5 kW page 1-13 ff.
Operation at increased rated power
During operation at increased rated power, a larger motor
may be used under certain circumstances at the same
inverter power as in normal operation. The inverter may be
operated at increased rated power under the following
conditions:
– At the specified mains voltage ranges
– 2 kHz or 4 kHz switching frequency only
– Only with approved mains chokes, fuses and cable
cross-sections
During operation at rated power (normal operation), the
inverter is set for the rated power of the motor.
Please use the quick selection guide on page 1-12 to make
your selections for "Normal operation".
Supply voltage
230 V, 1-phase, 0.37 to 0.55 kW page 1-14 ff.
400 V, 3-phase, 0.75 to 7.5 kW page 1-15 ff.
starttec
Standalone drive page 1-16 ff.
100 V to 500 V, 3-phase; 0.25 to 4.0 kW
2-motor mode/Standalone drive with change of direction page 1-16 ff.
of rotation 100 V to 500 V, 3-phase; 0.25 to 4.0 kW
