Lenze E84AYCER User Manual

Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019 29
Installation
Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

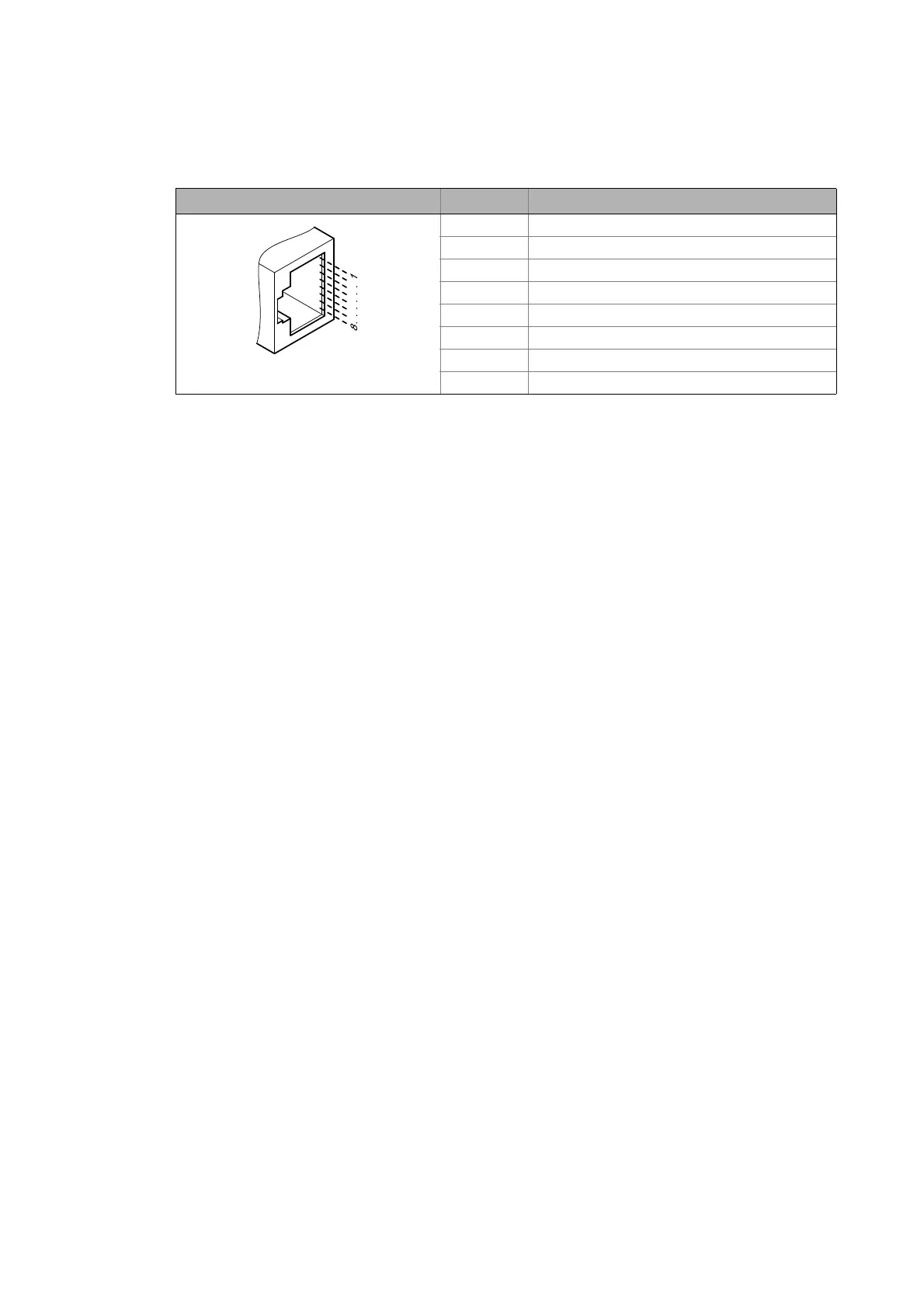

Pin assignment of the RJ45 sockets
 Tip!
The PROFINET interfaces feature an auto-MDIX function. This function adjusts the polarity
of the RJ45 interfaces so that a connection can be established irrespective of the polarity of
the opposite PROFINET interface and irrespective of the type of cable used (standard patch
cable or crossover cable).
RJ45 socket Pin Signal
E94AYCXX004C
1Tx +
2Tx -
3Rx +
4-
5-
6Rx -
7-
8-
