Commissioning
Establishing an online connection via PROFINET with the Lenze »Engineer«
44
Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

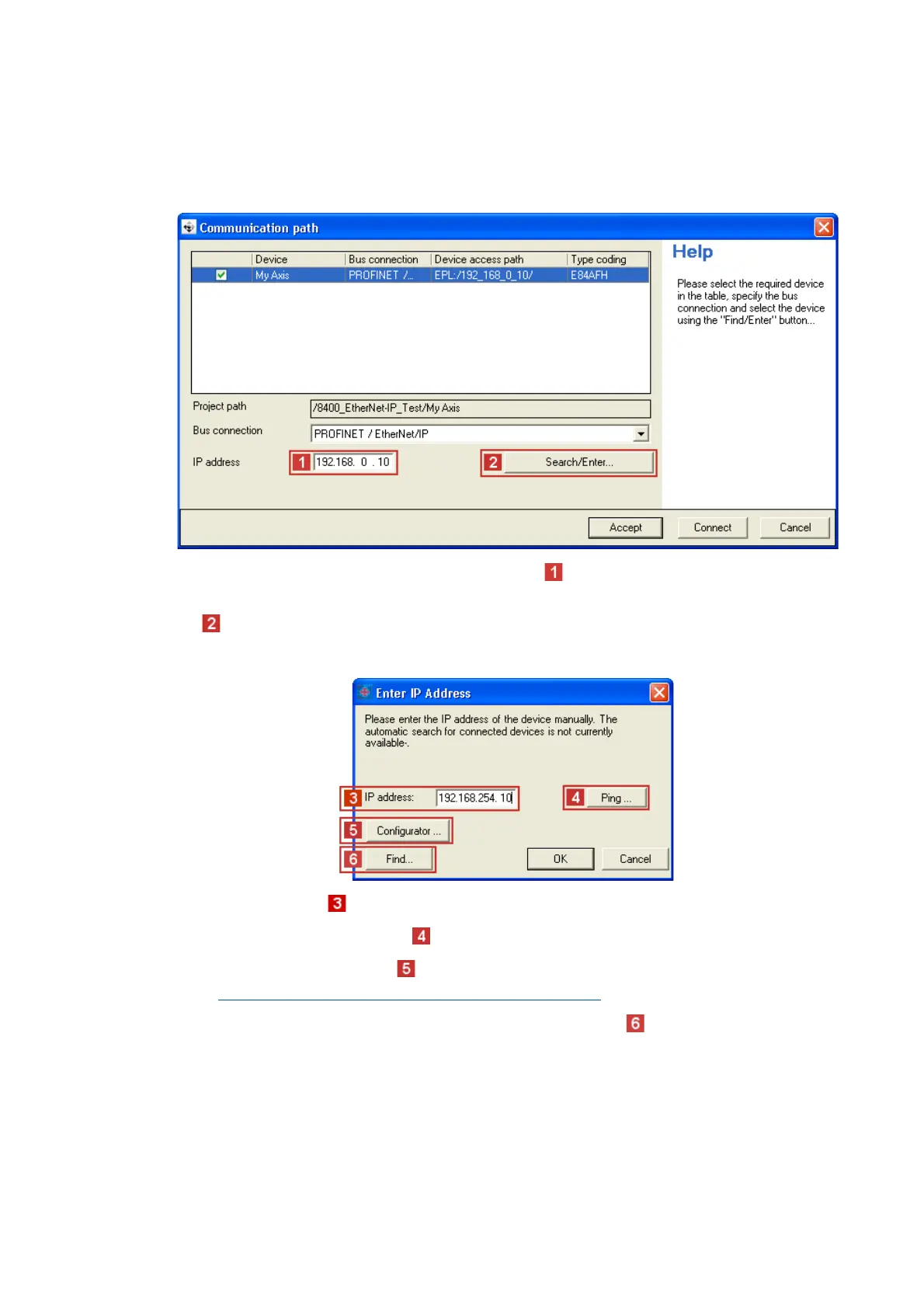

In the »Engineer« via the menu command Online  Set communication path and go online, you can
select the PROFINET communication path. The PROFINET nodes previously configured are shown in
the Communication path dialog window:
If the device access path is not configured correctly, the IP address of the inverter selected in the
display field can be entered manually here.
Via Search/Enter you can establish a connection to devices which have not appeared in the dis-
play field. Corresponding settings for this can be made in the dialog window Enter IP address, which
is shown:
Here you can enter an IP address manually or execute the following actions using the buttons:
• Execute the console command Ping.
• Assign the IP address via the Configurator.
Settings via the PROFINET configurator of the »Engineer«
( 40)
• Select the device access path to the desired inverter by clicking Find.
After having established the online connection, you can continue work with the »Engineer« as usu-
al.
