5 Mechanical installation
EDK2191DB DE/EN/FR 2.0
30
H1_MechINS−MechInst
5 Mechanical installation
2102LEC014

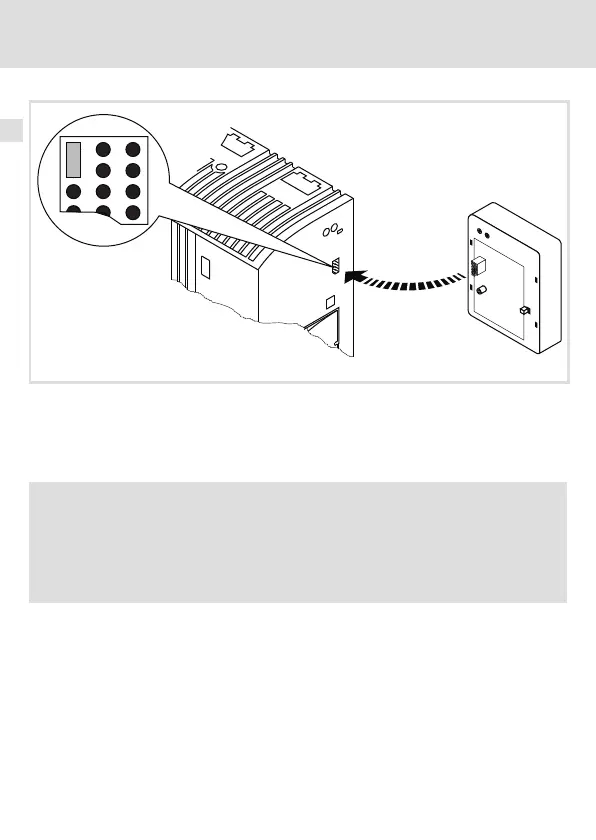

Fig. 1 Attaching the communication module
ƒ Plug the communication module onto the standard device (here: 8200 vector).
ƒ Tighten the communication module to the standard device using the fixing screw in
order to ensure a good PE connection.
Note!
For the internal supply of the communication module by the 8200 vector
frequency inverter the jumper has to be adjusted within the interface opening
(see illustration above).
Observe the notes (34).
