6 Electrical installation
Voltage supply
EDK2191DB DE/EN/FR 2.0
34

H2_SpgVersorgg−Steckerleiste_Schraubanschl_15
Voltage supply
Internal voltage supply
 Note!
Internal voltage supply has been selected in the case of standard devices with
an extended AIF interface opening (e.g. front of 8200 vector). The area shown
on a grey background in the graphic marks the jumper position.
ƒ By default, this is not supplied internally in the standard device.
ƒ For internal voltage supply place the jumper on the position indicated
below.
In the case of all other device series (9300, ECS), voltage is always supplied
from the standard device.

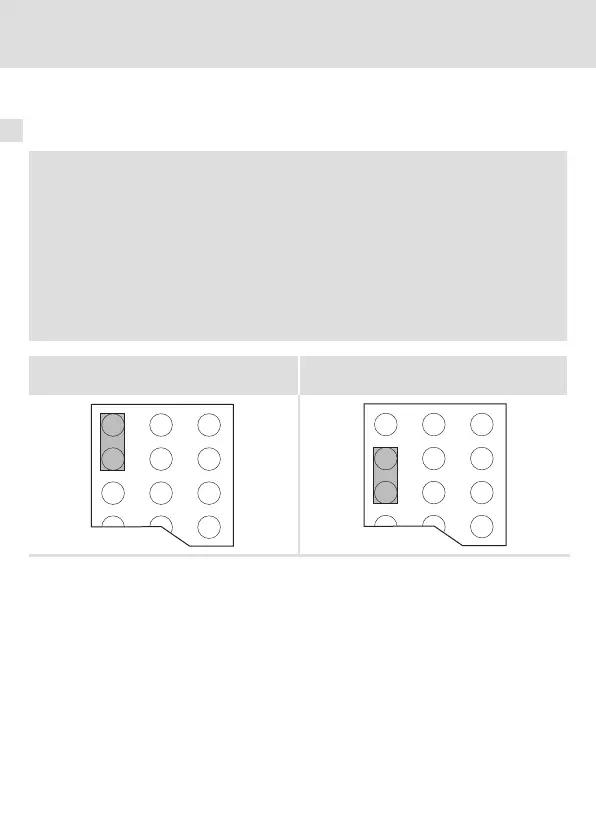

Lenze setting
(Only external voltage supply possible.)
Internal voltage supply
