Product description
Connections and interfaces
3
15
EDSMF2191IB EN 2.0

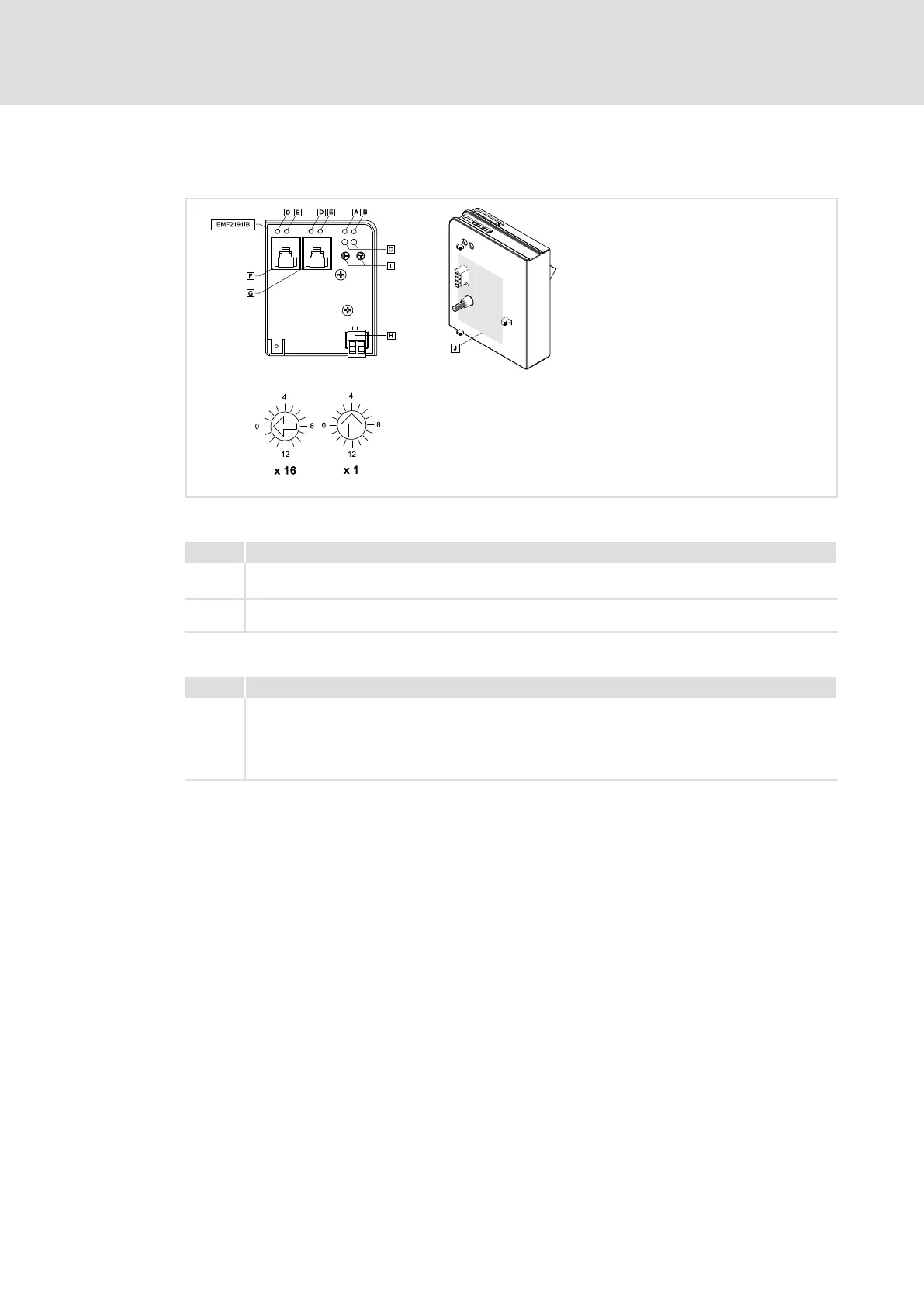

3.4 Connections and interfaces
2191EPL001B
Connections
Pos. Description
POWERLINK connection
Version: RJ45 socket according to IEC 60603−7
Connection to external supply of the communication module
Version: Connector with screw connection, 2−pole
Switch
Pos. Description
Switches for addressing the nodes
l Left switch: Setting with factor 16
l Right switch: Setting with factor 1
The addition of both products results in the node address (node ID)
Node ID = 254 (the node ID is obtained from a DHCP server)
