Lenze EPM-H505 User Manual

Technical data
Dimensions
2

62
EDBPM−H505 DE/EN/FR 6.1
2.3 Dimensions
a
d
e
c
f
c
b
h505_006

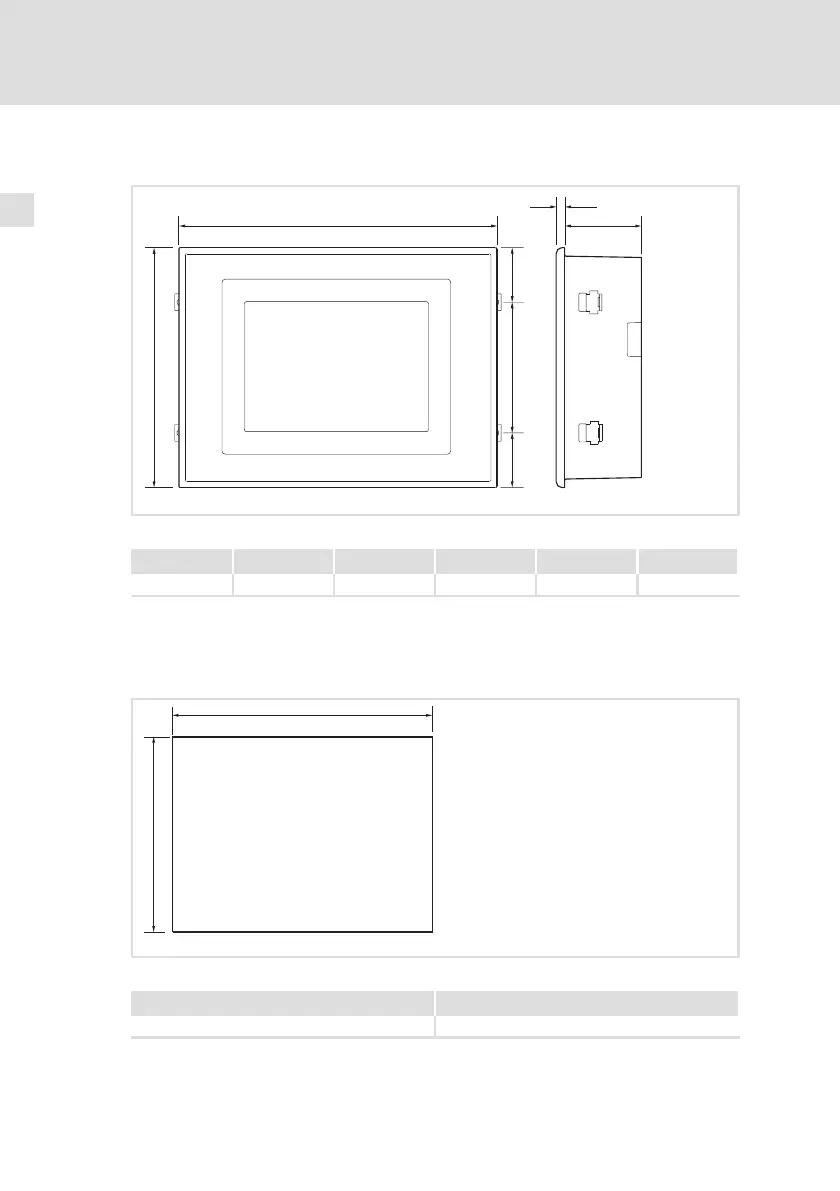

Fig. 2−2 Dimensions
a [mm] b [mm] c [mm] d [mm] e [mm] f [mm]
210 158 36 6 54 86
2.4 Mounting cutout
a
b
h505_007
Fig. 2−3 Mounting cutout
a [mm] b [mm]
198 148
